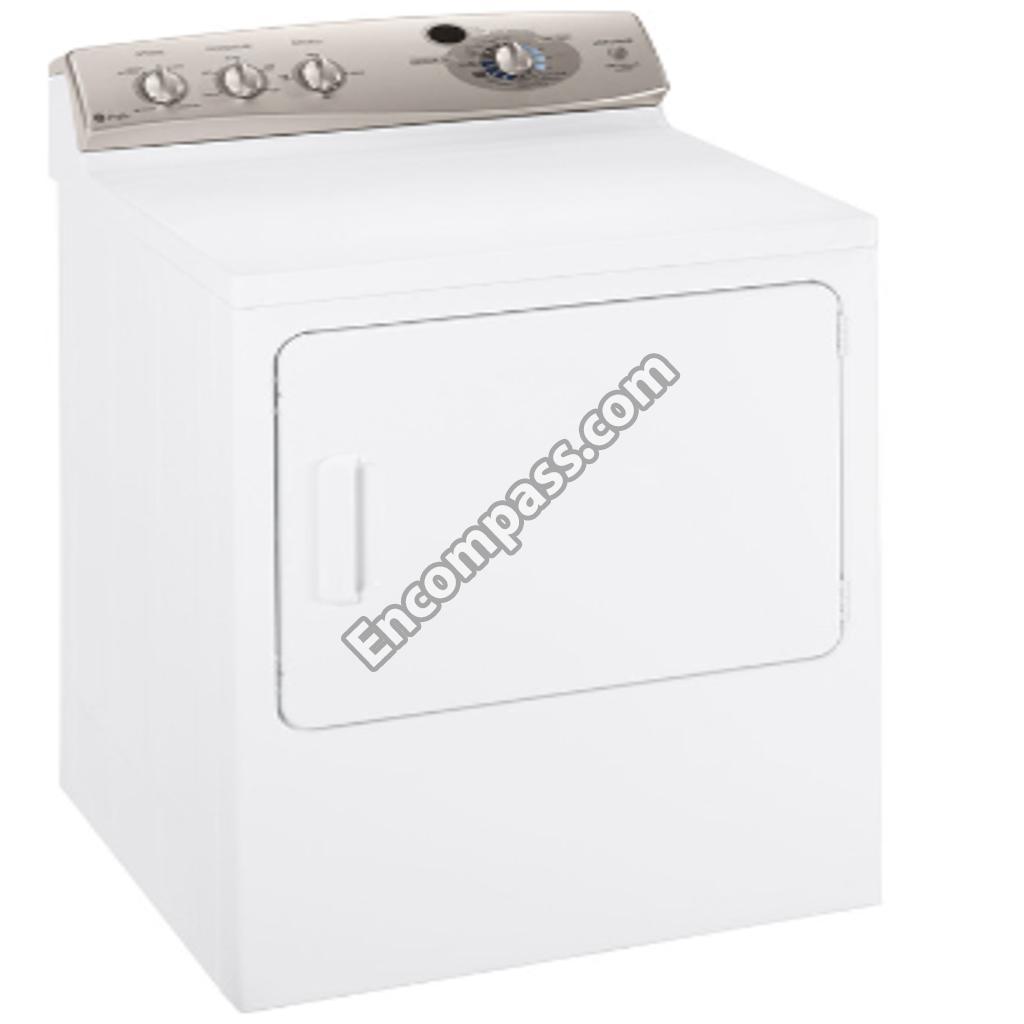

DPSE810EG0WT GE Dryer Electric Replacement Parts
Manufacturer
Model Number
DPSE810EG0WT
Description
Dryer Electric
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Foam | WD2M174 | GE Absorber-foam Schematic Location: 2009 | Ships in 15 days 14.95 | |
| Duct, Vent | WE14X21334 | GE Air Duct Assembly Schematic Location: 311 | No | |
| Duct, Vent | WE14X25080 | GE Air Duct Assembly Schematic Location: 311 | Y | In Stock In stock 90.95 |
| Panel | WE19M1310 | GE Back Panel Schematic Location: 72 | Ships in 15 days 62.95 | |
| WE19M1506 | GE Backsplash Asm Schematic Location: 13 | No | ||
WE14M75 | GE Baffle Schematic Location: 509 | Y | Ships in 27 days 26.95 | |
| Bearing | WE25M40 | GE Bearing Kit Schematic Location: 508 | Y | In Stock In stock 98.95 |
| Bearing | WE1M300 | GE Bearing Retainer Schematic Location: 3102 | Y | Ships in 14 days 45.95 |
| WR02X8693 | GE Beauty Button-wht Schematic Location: 112 | No | ||
| Belt, Pulley | WE12M29 | GE Belt Drive Schematic Location: 213 | No | |
| Belt, Pulley | WE03X29897 | GE Belt Drive Schematic Location: 213 | Y | In Stock In stock 29.95 |
| WE00M112 | GE Blower Clamp Schematic Location: 200 | No | ||
| WE00M111 | GE Blower Clamp Schematic Location: 200 | No | ||
| Gear, Wheel | WE16M15 | GE Blower Wheel Schematic Location: 201 | Y | In Stock In stock 69.95 |
| Circuit Board | WE04M10004 | GE Board Assembly Mounted Schematic Location: 23 | Y | In Stock In stock 155.95 |
| Cover,Cap | WE20M253 | GE Bottom Cover (E-coat) Schematic Location: 222 | Ships in 15 days 62.95 | |
| Bracket, Flange, Blade | WE1M467 | GE Brkt Lvl Screw Front Schematic Location: 2020 | No | |
| Bracket, Flange, Blade | WE1M468 | GE Brkt Lvl Screw Rear Schematic Location: 2021 | Y | In Stock In stock 30.95 |
| Knob, Dial, Button | WH01X10088 | GE Button Switch | Y | In Stock In stock 23.95 |
| Knob, Dial, Button | WH01X10306 | GE Button Switch Schematic Location: 2232 | No | |
| Base | WE20M398 | GE Cabubet Base Schematic Location: 408 | Ships in 15 days 88.95 | |
| Insulator | WE1M452 | GE Ceramic Insulator Schematic Location: 510 | In Stock In stock 13.95 | |
| Screw | WE1X688 | GE Clamp And Screw Schematic Location: 3346 | Y | In Stock In stock 28.95 |
| Connector | WD21X10026 | GE Connector Model Select Schematic Location: 36 | No | |
| Pump, Motor | WE1M650 | GE Connector Motor Schematic Location: 2025 | Ships in 15 days 21.95 | |
| Cover,Cap | WE20X20417 | GE Cover Wh Schematic Location: 2019 | Y | In Stock In stock 76.95 |
| Band | WE1M433 | GE Dampening Band-drum Schematic Location: 522 | Ships in 15 days 98.95 | |
| Cooking Plate | WE1M869 | GE Dampening Plate Front Pn Schematic Location: 2011 | Ships in 15 days 43.95 | |
| Plate | WE1M508 | GE Dampening Plate Top Cv Schematic Location: 2018 | No | |
| Diffuser | WE14X20408 | GE Deflector Heat Schematic Location: 504 | No | |
| Diffuser | WE11X29438 | GE Deflector Heat Schematic Location: 504 | Y | In Stock In stock 40.95 |
| Switch | WE4M415 | GE Door Switch Schematic Location: 380 | Y | In Stock In stock 38.95 |
| Drum, Tub | WE21X20566 | GE Drum Asm 7.0 S.s Schematic Location: 503 | Y | Ships in 15 days 310.95 |
| Bearing | WE1M504 | GE Drum Slide Schematic Location: 2016 | Y | In Stock In stock 25.95 |
| Dryer | WE19M1461 | GE Dryer End Cap Lh Wh Schematic Location: 3 | Ships in 15 days 48.95 | |
| Dryer | WE19M1460 | GE Dryer End Cap Rh Wh Schematic Location: 4 | Ships in 15 days 47.95 | |
| Pump, Motor | WE1X921 | GE Dryer Motor Strap Schematic Location: 3386 | Y | Ships in 15 days 45.95 |
| Sensor, Thermistor, Thermostat | WE1M575 | GE Dryer Sensor Rod Schematic Location: 2015 | Y | In Stock In stock 19.95 |
| Duct, Vent | WE14X20421 | GE Elbow Exhaust | Y | Ships in 15 days 36.95 |
| Duct, Vent | WE09X20441 | GE Felt Schematic Location: 312 | No | |
| Duct, Vent | WE09X27634 | GE Felt Schematic Location: 312 | Y | In Stock In stock 33.95 |
| Filter | WE18X25100 | GE Filter Frame Assembly | Y | In Stock In stock 73.95 |
| Bracket, Flange, Blade | WE1M527 | GE Front Bracket Level Leg Schematic Location: 2022 | Ships in 15 days 14.95 | |
| Exhaust | WE1M966 | GE Gasket Seal Schematic Location: 218 | No | |
| Exhaust | WE09X27636 | GE Gasket Seal Schematic Location: 218 | Y | Ships in 15 days 13.95 |
| Strap | WE1M1015 | GE Ground Strap Schematic Location: 515 | Y | In Stock In stock 19.95 |
| Handle | WE01X20419 | GE Handle Door Wh Schematic Location: 603 | Y | In Stock In stock 31.95 |
| WE5M35 | GE Harness Elect.w/ T-stats Schematic Location: 2222 | No | ||
| WE5M39 | GE Harness Sensor Schematic Location: 3333 | Ships in 15 days 75.95 | ||
| Hinge | WE1M1033 | GE Hinge | Y | In Stock In stock 14.95 |
| Housing | WE14M94 | GE Housing Blower | No | |
| Housing | WE11M23 | GE Housing Heater Assembly Schematic Location: 512 | Y | Ships in 14 days 139.95 |
WE03X20434 | GE Idler Arm Schematic Location: 215 | Y | In Stock In stock 78.95 | |
| Control | WE4M398 | GE Inlet Control Thermistor Schematic Location: 506 | Y | In Stock In stock 48.95 |
| Door,Remote Control Door | WE10X20418 | GE Inner Door Gskt Asm Schematic Location: 305 | No | |
| Panel | WE49X22295 | GE Inner Door Gskt Asm Schematic Location: 305 | Y | In Stock In stock 167.95 |
| 31-16135 | GE Install Instruction Schematic Location: 1 | No | ||
| Washer | WE2M176 | GE Insulated Washer Schematic Location: 2006 | Ships in 15 days 13.95 | |
| Knob, Dial, Button | WH01X10305 | GE Knob Asm Schematic Location: 19 | Ships in 15 days 46.95 | |
| Lamp | WE05X20431 | GE Lamp Schematic Location: 314 | Y | In Stock In stock 17.95 |
| Door,Remote Control Door | WE1M1011 | GE Latch Schematic Location: 327 | Y | In Stock In stock 18.95 |
| Screw | WE1M642 | GE Levelling Screw Gray Schematic Location: 236 | Y | In Stock In stock 16.95 |
| 31-16130 | GE Mini Manual Schematic Location: 1 | No | ||
| Pump, Motor | WE17X10010 | GE Motor And Pulley Assembly Schematic Location: 2024 | Y | Ships in 14 days 263.95 |
| WE01X0921 | GE Motor Bracket Schematic Location: 204 | No | ||
| Pump, Motor | WE13X20394 | GE Motor Plate Schematic Location: 2010 | Y | No |
| Pump, Motor | WE13M39 | GE Motor Support Schematic Location: 205 | Y | Ships in 15 days 49.95 |
| Ring | WE1M461 | GE O Ring Schematic Location: 3127 | Y | In Stock In stock 13.95 |
| Door,Remote Control Door | WE10X20468 | GE Outer Door Wh Schematic Location: 307 | No | |
| Panel | WE20X20559 | GE Panel Rear 7 Cu Ft Schematic Location: 420 | Ships in 15 days 72.95 | |
| Panel | WE20M393 | GE Panel Side Ab | Y | Ships in 15 days 113.95 |
| Door,Remote Control Door | WR01X21159 | GE Plug Door | Y | In Stock In stock 13.95 |
| Belt, Pulley | WE12X83 | GE Pulley Idler Schematic Location: 216 | Y | In Stock In stock 28.95 |
| Rack | WE01X20677 | GE Rack Drying Schematic Location: 1000 | Ships in 15 days 81.95 | |
| Bracket, Flange, Blade | WE1M528 | GE Rear Bracket Level Leg Schematic Location: 2023 | Y | In Stock In stock 18.95 |
| WH02X10236 | GE Scr M4-1.44 B Pa 25 S Schematic Location: 22 | No | ||
| Screw | WE1M280 | GE Screw Schematic Location: 235 | Y | Ships in 27 days 13.95 |
| Screw | WE2M189 | GE Screw Schematic Location: 3336 | Ships in 15 days 13.95 | |
| Screw | WE2M202 | GE Screw Schematic Location: 232 | Y | Ships in 15 days 13.95 |
| Screw | WE2M98 | GE Screw Schematic Location: 199 | Ships in 15 days 13.95 | |
| Screw | WR2X9260 | GE Screw | In Stock In stock 37.95 | |
| Screw | WE2M173 | GE Screw Schematic Location: 75 | In Stock In stock 13.95 | |
| Screw | WD02X10057 | GE Screw Schematic Location: 231 | In Stock In stock 13.95 | |
| Screw | WE2M174 | GE Screw # 10 Schematic Location: 502 | Y | In Stock In stock 13.95 |
| Screw | WE2M163 | GE Screw #10 Schematic Location: 534 | Y | In Stock In stock 13.95 |
| Screw | WE2M196 | GE Screw #8 Schematic Location: 3046 | Y | In Stock In stock 13.95 |
| Screw | WE2M160 | GE Screw #8 Schematic Location: 403 | Y | Ships in 15 days 13.95 |
| Screw | WZ4X241D | GE Screw-pkg 12 Schematic Location: 3204 | Y | In Stock In stock 32.95 |
| Gasket , Seal | WE1M825 | GE Seal Gasket Schematic Location: 325 | Y | In Stock In stock 13.95 |
| Duct, Vent | WE14M119 | GE Sensor Rods | Y | In Stock In stock 180.95 |
| Shield | WE13M26 | GE Shield | Ships in 15 days 22.95 | |
| Drum, Tub | WE1M462 | GE Sleeve Drum Schematic Location: 3106 | Y | In Stock In stock 37.95 |
WE03X37317 | GE Slide Drum Schematic Location: 2017 | Y | In Stock In stock 28.95 | |
| Bearing | WE1M1067 | GE Slide Drum - Green Schematic Location: 316 | Y | No |
| Socket | WE5M48 | GE Socket Assembly Schematic Location: 3366 | Y | No |
| Bracket, Flange, Blade | WE01X20423 | GE Strain Relief Bracket | Ships in 15 days 13.95 | |
| WE13X0200 | GE Strap Motor Schematic Location: 203 | No | ||
| Pump, Motor | WE13X200 | GE Strap Motor | In Stock In stock 13.95 | |
| Door,Remote Control Door | WE1X1192 | GE Strike Door | Y | In Stock In stock 13.95 |
| WD21X0557 | GE Switch Interlock Schematic Location: 803 | No | ||
| Switch | WD21X10261 | GE Switch Interlock Schematic Location: 3376 | Y | In Stock In stock 32.95 |
| Cover,Cap | WE1M1102 | GE T-block Cover Schematic Location: 430 | Y | In Stock In stock 22.95 |
| Outlet | WE4M300 | GE T-stat Outlet Bkup Org Schematic Location: 230 | Y | Ships in 15 days 55.95 |
| Strap | WE4M325 | GE Term Blk & Grnd Strap Schematic Location: 419 | Y | In Stock In stock 37.95 |
| Sensor, Thermistor, Thermostat | WE04X20685 | GE Thermistor Outlet Cntr | Y | In Stock In stock 21.95 |
| Sensor, Thermistor, Thermostat | WE4M137 | GE Thermostat Hi-limit Schematic Location: 507 | Y | In Stock In stock 75.95 |
| Sensor, Thermistor, Thermostat | WE4M160 | GE Thermostat Safety Left Schematic Location: 505 | Y | In Stock In stock 119.95 |
| Bearing | WE3M26 | GE Top Bearing Schematic Location: 313 | Y | In Stock In stock 54.95 |
| 49-90290 | GE Use & Care Manual Schematic Location: 1 | No | ||
| Band | WE2M185 | GE Washer - Dampening Band Schematic Location: 523 | Ships in 15 days 14.95 | |
| Screw | WE2X263D | GE We2x263d | Y | In Stock In stock 22.95 |
WE2M96 | GE We2x329 Schematic Location: 234 | Y | In Stock In stock 13.95 |
