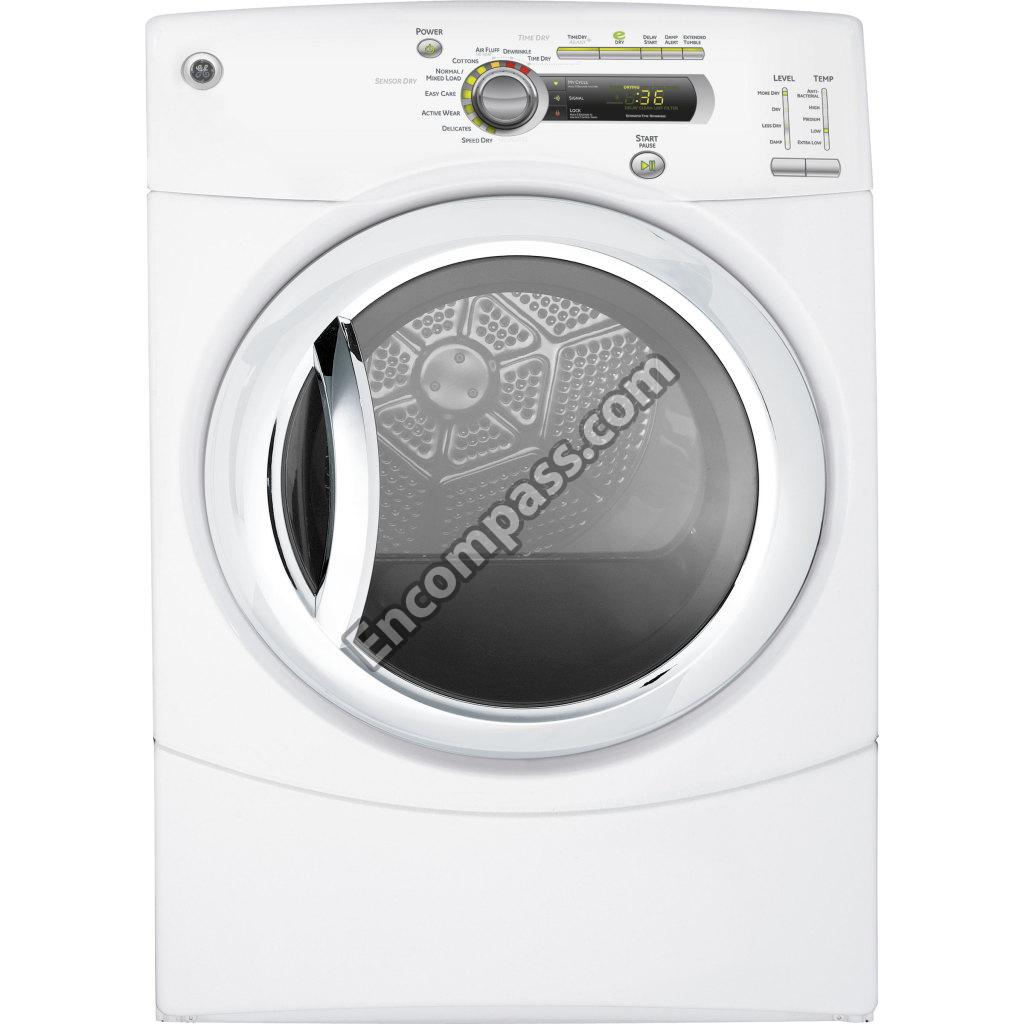

GFDN240EL1WW GE Dryer Electric Replacement Parts
Manufacturer
Model Number
GFDN240EL1WW
Description
Dryer Electric
Interactive Exploded View
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Housing | WE19M1657 | GE Back Housing White Schematic Location: 3344 | Ships in 15 days 101.95 | |
| WE14M180 | GE Baffle Schematic Location: 509 | No | ||
| Bearing | WE1M300 | GE Bearing Retainer Schematic Location: 3102 | Y | In Stock In stock 44.95 |
WE03X34318 | GE Bearing Slide Schematic Location: 316 | Y | No | |
| WE03X37319 | GE Bearing Slide Schematic Location: 315 | Y | In Stock In stock 18.95 | |
WE03X37317 | GE Bearing Slide | Y | In Stock In stock 27.95 | |
WE03X37320 | GE Bearing Slide Schematic Location: 316 | Y | In Stock In stock 27.95 | |
| Bearing | WE1M504 | GE Bearing-slide White | Y | In Stock In stock 24.95 |
| Gear, Wheel | WE16X20393 | GE Blower Wheel Schematic Location: 201 | Y | In Stock In stock 43.95 |
| Base | WE20M429 | GE Bottom Chassis Base Schematic Location: 408 | Ships in 15 days 118.95 | |
| Bracket, Flange, Blade | WE1M468 | GE Brkt Lvl Screw Rear Schematic Location: 411 | Y | In Stock In stock 29.95 |
WE19M1687 | GE Cntrl Pnl Asm Ww Schematic Location: 13 | Y | In Stock In stock 270.95 | |
| Connector | WD21X10026 | GE Connector Model Select Schematic Location: 36 | No | |
| Cover,Cap | WE1M1007 | GE Cover Fuse Terminal Schematic Location: 3588 | Y | In Stock In stock 36.95 |
| Band | WE1M821 | GE Dampening Band - Drum Schematic Location: 522 | Ships in 15 days 95.95 | |
| Diffuser | WE14X20408 | GE Deflector Heat Schematic Location: 504 | No | |
| Diffuser | WE11X29438 | GE Deflector Heat Schematic Location: 504 | Y | In Stock In stock 39.95 |
| Door,Remote Control Door | WE10M136 | GE Door Asm Ww Schematic Location: 333 | Ships in 15 days 196.95 | |
| Gasket , Seal | WE9M48 | GE Door Gasket Schematic Location: 610 | Ships in 15 days 60.95 | |
| Door,Remote Control Door | WE1M755 | GE Door Guide Schematic Location: 3361 | In Stock In stock 18.95 | |
| Cover,Cap | WE1M928 | GE Door Handle Cover Schematic Location: 603 | No | |
| Hinge | WE01X24254 | GE Door Hinge Asm - Plated Schematic Location: 3051 | Y | In Stock In stock 61.95 |
| Cover,Cap | WE1M929 | GE Door Hinge Cover Schematic Location: 3346 | Ships in 15 days 16.95 | |
| Door,Remote Control Door | WE1M925 | GE Door Outer Ring Schematic Location: 307 | Ships in 15 days 174.95 | |
| Door,Remote Control Door | WE1M924 | GE Door Outer Window Schematic Location: 3345 | Ships in 15 days 57.95 | |
| Drum, Tub | WE21M37 | GE Drum Asm Schematic Location: 503 | Ships in 15 days 144.95 | |
| Door,Remote Control Door | WE1M1011 | GE Dryer Door Latch Schematic Location: 3478 | Y | In Stock In stock 17.95 |
| Switch | WE4M415 | GE Dryer Door Switch Schematic Location: 380 | Y | In Stock In stock 37.95 |
| Pump, Motor | WE17X22217 | GE Dryer Drive Motor Schematic Location: 3518 | Y | Ships in 11 days 173.95 |
| Belt, Pulley | WE03X29897 | GE Dryer Drum Drive Belt Schematic Location: 213 | Y | In Stock In stock 29.95 |
| Pump, Motor | WE1X921 | GE Dryer Motor Strap Schematic Location: 3648 | Y | Ships in 15 days 44.95 |
| Sensor, Thermistor, Thermostat | WE1M575 | GE Dryer Sensor Rod Schematic Location: 3363 | Y | In Stock In stock 18.95 |
| Screw | WE1M758 | GE Enclosed Screw Grommet Schematic Location: 3402 | Ships in 15 days 8.95 | |
| Duct, Vent | WE14M107 | GE Exhaust Duct Schematic Location: 228 | Ships in 15 days 45.95 | |
| Duct, Vent | WE04X24814 | GE Felt Trap Duct Schematic Location: 312 | Y | In Stock In stock 12.95 |
| Filter | WE19M10011 | GE Filter Assembly Schematic Location: 300 | Y | Ships in 15 days 69.95 |
| Panel | WE20M444 | GE Front Panel White Schematic Location: 301 | Ships in 15 days 147.95 | |
| Gasket , Seal | WE09X20569 | GE Gasket Schematic Location: 3548 | Y | In Stock In stock 16.95 |
| Gasket , Seal | WE09X22578 | GE Gasket Door | Y | Ships in 15 days 29.95 |
WE19M1624 | GE Ge Badge - Gray Schematic Location: 12 | No | ||
| Strap | WE1M1015 | GE Ground Strap Asm Schematic Location: 515 | Y | Ships in 11 days 18.95 |
| WE5M54 | GE Harness Sensors Schematic Location: 3364 | No | ||
| Bearing | WE15X20515 | GE Harness Top Bearing Assembly Schematic Location: 375 | Ships in 15 days 26.95 | |
| Housing | WE11X20088 | GE Heater And Housing Asm Schematic Location: 512 | Y | In Stock In stock 148.95 |
| Housing | WE11M10002 | GE Heater Housing Schematic Location: 3558 | Y | In Stock In stock 36.95 |
| Housing | WE14M176 | GE Housing Blower Schematic Location: 218 | Ships in 15 days 44.95 | |
WE03X20434 | GE Idler Arm Schematic Location: 3488 | Y | In Stock In stock 76.95 | |
| Control | WE4M398 | GE Inlet Control Thermistor Schematic Location: 3528 | Y | In Stock In stock 47.95 |
| Washer | WE2M176 | GE Insulated Washer Schematic Location: 523 | Ships in 15 days 12.95 | |
| Bearing | WE01X25434 | GE Kit Top Bearing Assemble | Y | In Stock In stock 95.95 |
| Lamp | WE05X20431 | GE Lamp Schematic Location: 314 | Y | In Stock In stock 16.95 |
| Screw | WE1M642 | GE Levelling Screw Gray Schematic Location: 236 | Y | In Stock In stock 15.95 |
WE1M935 | GE Lexan Window | Ships in 15 days 29.95 | ||
| Circuit Board | WE1M864 | GE Main Power Board Support Schematic Location: 3366 | Ships in 15 days 52.95 | |
| Circuit Board | WE4M511 | GE Main Power Brd Assembly Elect Schematic Location: 3578 | Y | Ships in 15 days 174.95 |
WE11M10001 | GE Mica Heater Schematic Location: 514 | Y | In Stock In stock 144.95 | |
| WE01X0921 | GE Motor Bracket Schematic Location: 204 | No | ||
| Pump, Motor | WE03X27285 | GE Motor Plate Schematic Location: 233 | Y | Ships in 30 days 35.95 |
| Pump, Motor | WE13M10001 | GE Motor Plate | In Stock In stock 56.95 | |
| Pump, Motor | WE13M39 | GE Motor Support Schematic Location: 205 | Y | Ships in 15 days 48.95 |
| Nut | WE2M213 | GE Nut-strip Door Guide Schematic Location: 3357 | Y | In Stock In stock 12.95 |
| Ring | WE1M461 | GE O Ring Schematic Location: 3127 | Y | In Stock In stock 12.95 |
| Panel | WE20X20443 | GE Panel Rear Schematic Location: 420 | Ships in 15 days 74.95 | |
| Screw | WE1M741 | GE Plastic Screw Plug Schematic Location: 113 | Y | In Stock In stock 12.95 |
| Knob, Dial, Button | WE1M934 | GE Plug Button White Schematic Location: 112 | Y | Ships in 15 days 12.95 |
| 31-16629-2 | GE Pm Install Instructions Schematic Location: 1 | No | ||
| 31-16632 | GE Pm Mini Manual & Wiring Schematic Location: 1 | No | ||
| 49-90394-2 | GE Pm Owners Manual Schematic Location: 1 | No | ||
| Bracket, Flange, Blade | WE1M780 | GE Protection Bracket Schematic Location: 510 | In Stock In stock 12.95 | |
| Belt, Pulley | WE12X83 | GE Pulley Idler Schematic Location: 216 | Y | In Stock In stock 27.95 |
| Rack | WE1M1013 | GE Rack Drying Schematic Location: 150 | Ships in 15 days 47.95 | |
| Rack | WE01X20677 | GE Rack Drying | Ships in 15 days 79.95 | |
| Bracket, Flange, Blade | WE1M528 | GE Rear Bracket Level Leg Schematic Location: 410 | Y | In Stock In stock 17.95 |
| Cover,Cap | WE20X23559 | GE Rear Panel & Cover Fuse | Ships in 15 days 72.95 | |
| Plate | WE1M585 | GE Rear Plate Schematic Location: 222 | Ships in 15 days 91.95 | |
| WE1M584 | GE Scr 10-16 B Flq2 1-1/8 S Schematic Location: 3353 | In Stock In stock 12.95 | ||
| WE2M279 | GE Scr 6-16 B Pnp 3/8 S Zn Schematic Location: 3438 | Ships in 15 days 12.95 | ||
WE2M282 | GE Scr 6-18 B B1q1 3/4 S Zn | Ships in 15 days 12.95 | ||
| WE2M281 | GE Scr 8-18 Ab 1/2 Schematic Location: 3442 | Ships in 15 days 12.95 | ||
WE2M278 | GE Scr 8-18 Ab Pnq2 1/4 S Z Schematic Location: 3433 | Ships in 15 days 12.95 | ||
| Screw | WE2M180 | GE Screw Schematic Location: 3439 | Ships in 15 days 11.95 | |
| Screw | WE2M202 | GE Screw Schematic Location: 232 | Y | Ships in 15 days 12.95 |
| Screw | WR2X9260 | GE Screw Schematic Location: 3468 | In Stock In stock 36.95 | |
| Screw | WE2M173 | GE Screw Schematic Location: 3440 | In Stock In stock 12.95 | |
| Screw | WE2M223 | GE Screw Schematic Location: 3446 | Ships in 15 days 12.95 | |
| Screw | WE1M280 | GE Screw Schematic Location: 3443 | Y | Ships in 15 days 12.95 |
| Screw | WD2M101 | GE Screw Schematic Location: 715 | Ships in 15 days 12.95 | |
| Screw | WE2M174 | GE Screw # 10 Schematic Location: 502 | Y | In Stock In stock 12.95 |
| Screw | WE2M163 | GE Screw #10 Schematic Location: 534 | Y | In Stock In stock 12.95 |
| Screw | WE2M196 | GE Screw #8 Schematic Location: 3046 | Y | In Stock In stock 12.95 |
| Screw | WE1M582 | GE Screw #8 X 5/8 Ss Door H Schematic Location: 3351 | Ships in 15 days 12.95 | |
| Screw | WE1M583 | GE Screw #8-32 X 1/2 Hinge Schematic Location: 3352 | Y | Ships in 15 days 12.95 |
| Screw | WD02X10057 | GE Screw 10-16X1/2 Ab Hxw S Schematic Location: 3458 | In Stock In stock 12.95 | |
| Knob, Dial, Button | WE2M264 | GE Screw Center Knob Area Schematic Location: 3403 | Ships in 15 days 12.95 | |
| WE02X25454 | GE Screw Flat Head/ab Schematic Location: 3445 | In Stock In stock 12.95 | ||
| Screw | WE2M211 | GE Screw Front Schematic Location: 3441 | Ships in 15 days 12.95 | |
| Screw | WE2M200 | GE Screw Ground Schematic Location: 198 | Ships in 15 days 12.95 | |
| Screw | WE2M302 | GE Screw Hinge To Front | Y | In Stock In stock 12.95 |
| Screw | WE2M225 | GE Screw White #10-16 3/4 Schematic Location: 238 | Y | In Stock In stock 12.95 |
| Screw | WZ5X158D | GE Screw-pkg 12 Schematic Location: 3628 | Y | In Stock In stock 34.95 |
| Screw | WZ4X241D | GE Screw-pkg 12 Schematic Location: 3204 | Y | In Stock In stock 31.95 |
| Knob, Dial, Button | WH11X10059 | GE Select Cycle Knob Assembly Schematic Location: 3568 | No | |
| Duct, Vent | WE14M119 | GE Sensor Rods Schematic Location: 3538 | Y | In Stock In stock 177.95 |
| Bracket, Flange, Blade | WE3M33 | GE Shaft & Bracket Assembly Schematic Location: 508 | Y | In Stock In stock 38.95 |
| Shield | WE1M926 | GE Shield Front Schematic Location: 72 | Ships in 15 days 53.95 | |
| Panel | WE20M400 | GE Side Panel Wh Schematic Location: 404 | Ships in 15 days 123.95 | |
| Drum, Tub | WE1M462 | GE Sleeve Drum Schematic Location: 3106 | Y | In Stock In stock 36.95 |
| Socket | WE5M62 | GE Socket With Harness | No | |
| Bracket, Flange, Blade | WE01X20423 | GE Strain Relief Bracket Schematic Location: 3508 | Ships in 15 days 12.95 | |
| WE13X0200 | GE Strap Motor Schematic Location: 203 | No | ||
| Pump, Motor | WE13X200 | GE Strap Motor | In Stock In stock 12.95 | |
WE01M10007 | GE Strike Schematic Location: 3049 | Y | In Stock In stock 12.95 | |
| Door,Remote Control Door | WE1X1192 | GE Strike Door | Y | In Stock In stock 12.95 |
| Plate | WE1M569 | GE Strike Plate Schematic Location: 3356 | Y | In Stock In stock 12.95 |
| Plate | WE1M570 | GE Strike Plate W/strk Hole Schematic Location: 3360 | Y | In Stock In stock 12.95 |
| WD21X0557 | GE Switch Interlock Schematic Location: 803 | No | ||
| Switch | WD21X10261 | GE Switch Interlock Schematic Location: 3638 | Y | In Stock In stock 31.95 |
| Outlet | WE4M300 | GE T-stat Outlet Bkup Org Schematic Location: 230 | Y | Ships in 15 days 54.95 |
| Strap | WE4M325 | GE Term Blk & Grnd Strap Schematic Location: 419 | Y | In Stock In stock 36.95 |
| Cover,Cap | WE1M1102 | GE Term Block Cover | Y | Ships in 11 days 21.95 |
| Sensor, Thermistor, Thermostat | WE04X20685 | GE Thermistor Outlet Cntr | Y | In Stock In stock 20.95 |
| Sensor, Thermistor, Thermostat | WE4M137 | GE Thermostat Hi-limit Schematic Location: 507 | Y | In Stock In stock 73.95 |
| Sensor, Thermistor, Thermostat | WE4M160 | GE Thermostat Safety Left Schematic Location: 505 | Y | In Stock In stock 117.95 |
| Bearing | WE3M55 | GE Top Bearing Assembly Schematic Location: 3598 | Y | Ships in 11 days 79.95 |
| Panel | WE20M445 | GE Top Panel Ww Schematic Location: 401 | Ships in 15 days 205.95 | |
| Duct, Vent | WE14X25086 | GE Trap Duct Asm | Y | In Stock In stock 124.95 |
| Duct, Vent | WE14X25083 | GE Trap Duct Assembly Schematic Location: 311 | Y | Ships in 15 days 82.95 |
| Circuit Board | WE4M513 | GE User Interface Board Assembly Schematic Location: 100 | Y | In Stock In stock 270.95 |
| Band | WE2M185 | GE Washer - Dampening Band Schematic Location: 3448 | Ships in 15 days 13.95 | |
| Screw | WE2X263D | GE We2x263d Schematic Location: 3498 | Y | In Stock In stock 21.95 |
WE2M96 | GE We2x329 Schematic Location: 234 | Y | Ships in 11 days 12.95 |
