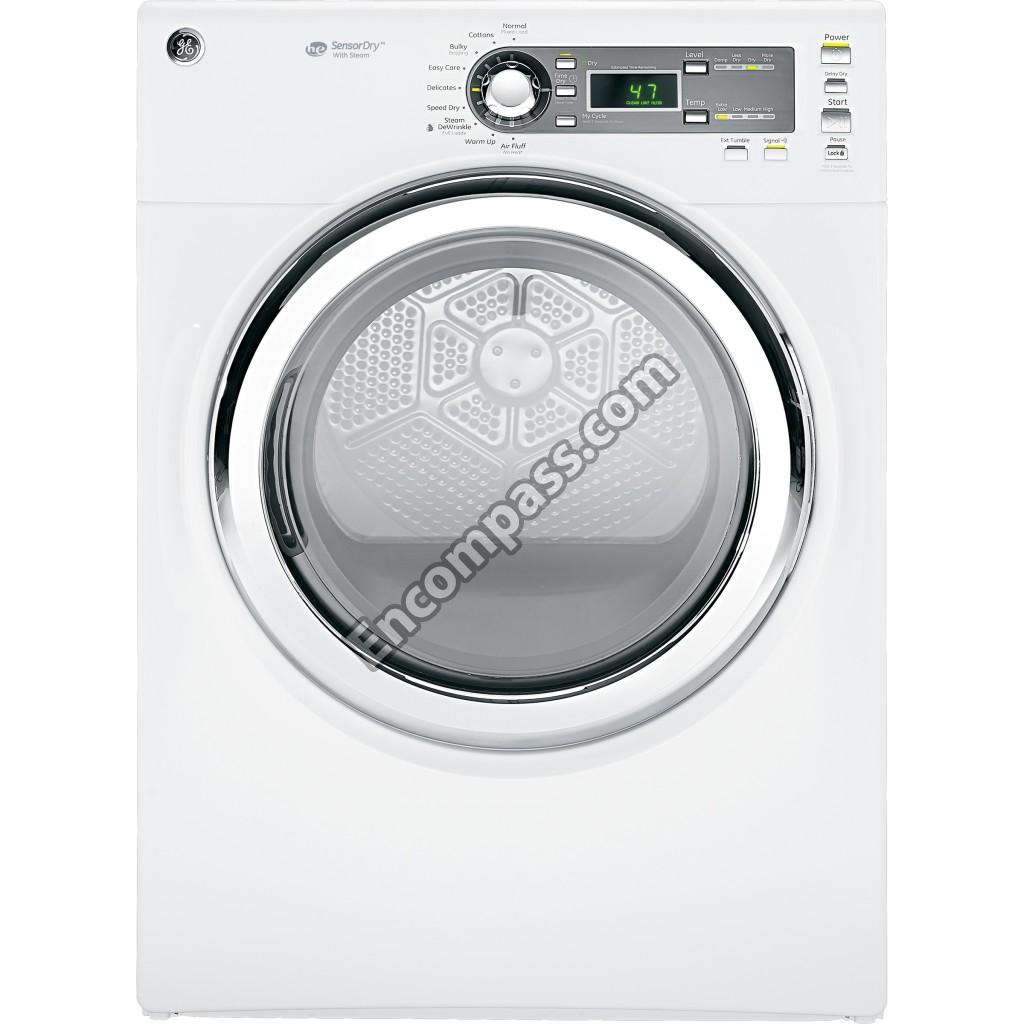

GFDS150ED0WW GE Dryer Electric Replacement Parts
Model Number
GFDS150ED0WW
Description
Dryer Electric
Interactive Exploded View
Parts List
Category | Part Number | Description | Demand | Availability |
---|---|---|---|---|
WE10X20222 | GE Badge Schematic Location: 12 | Y | In Stock In stock 12.95 | |
WE19M10949 | GE Badge Ge | Ships in 11 days 20.95 | ||
WE14M175 | GE Baffle | Ships in 15 days 20.95 | ||
Bearing | WE1M300 | GE Bearing Retainer Schematic Location: 3102 | Y | In Stock In stock 44.95 |
WE03X34318 | GE Bearing Slide Schematic Location: 316 | Y | No | |
WE03X37319 | GE Bearing Slide Schematic Location: 315 | Y | In Stock In stock 18.95 | |
WE03X37320 | GE Bearing Slide Schematic Location: 316 | Y | In Stock In stock 27.95 | |
Gear, Wheel | WE16X20393 | GE Blower Wheel Schematic Location: 201 | Y | In Stock In stock 43.95 |
Base | WE20M429 | GE Bottom Chassis Base Schematic Location: 408 | Ships in 15 days 118.95 | |
Bracket, Flange, Blade | WE1M468 | GE Brkt Lvl Screw Rear Schematic Location: 411 | Y | In Stock In stock 29.95 |
Knob, Dial, Button | WE25M83 | GE Button Kit Schematic Location: 9999 | Ships in 15 days 68.95 | |
Connector | WE01X20560 | GE Connector Service Schematic Location: 324 | Ships in 15 days 40.95 | |
Circuit Board | WE19M1743 | GE Control Board W/display Schematic Location: 13 | No | |
Cover,Cap | WE01M10005 | GE Cover Hinge Schematic Location: 3346 | Ships in 15 days 13.95 | |
Diffuser | WE11X29438 | GE Diffuser Schematic Location: 504 | Y | In Stock In stock 39.95 |
Door,Remote Control Door | WE10M10001 | GE Door Asm Schematic Location: 333 | Ships in 15 days 271.95 | |
Gasket , Seal | WE9M48 | GE Door Gasket Schematic Location: 610 | Ships in 15 days 60.95 | |
Door,Remote Control Door | WE1M755 | GE Door Guide Schematic Location: 3361 | In Stock In stock 18.95 | |
Drum, Tub | WE21M36 | GE Drum Asm 7.5 Schematic Location: 503 | Ships in 15 days 381.95 | |
WE14X21615 | GE Dryer Baffle Schematic Location: 509 | In Stock In stock 40.95 | ||
Door,Remote Control Door | WE1M1011 | GE Dryer Door Latch Schematic Location: 10029 | Y | In Stock In stock 17.95 |
Switch | WE4M415 | GE Dryer Door Switch Schematic Location: 380 | Y | In Stock In stock 37.95 |
Pump, Motor | WE17X22217 | GE Dryer Drive Motor Schematic Location: 10079 | Y | Ships in 18 days 173.95 |
Belt, Pulley | WE03X29897 | GE Dryer Drum Drive Belt Schematic Location: 213 | Y | In Stock In stock 29.95 |
WE12M50 | GE Dryer Idler Assembly Schematic Location: 217 | Y | In Stock In stock 57.95 | |
Pump, Motor | WE1X921 | GE Dryer Motor Strap Schematic Location: 10179 | Y | Ships in 15 days 44.95 |
Sensor, Thermistor, Thermostat | WE1M575 | GE Dryer Sensor Rod Schematic Location: 3363 | Y | In Stock In stock 18.95 |
Nozzle | WE1M943 | GE Elbow & Nozzle Asm Schematic Location: 326 | Y | Ships in 27 days 50.95 |
Screw | WE1M758 | GE Enclosed Screw Grommet Schematic Location: 3402 | Ships in 15 days 8.95 | |
Duct, Vent | WE14X21035 | GE Exhaust Duct Schematic Location: 228 | Ships in 15 days 30.95 | |
Duct, Vent | WE14M107 | GE Exhaust Duct | Ships in 15 days 45.95 | |
Exhaust | WE1M587 | GE Exhaust Protector Asm | Ships in 15 days 29.95 | |
Duct, Vent | WE09X27634 | GE Felt Trap Duct | Y | In Stock In stock 32.95 |
Duct, Vent | WE04X24814 | GE Felt Trap Duct | Y | Ships in 8 days 12.95 |
Filter | WE18X25098 | GE Filter And Mesh Assembly Schematic Location: 300 | Y | In Stock In stock 44.95 |
Filter | WE19M10011 | GE Filter Assm | Y | Ships in 15 days 69.95 |
Gasket , Seal | WE09X20569 | GE Gasket Schematic Location: 10099 | Y | In Stock In stock 16.95 |
Gasket , Seal | WE09X22578 | GE Gasket Door | Y | Ships in 15 days 29.95 |
Strap | WE1M1015 | GE Ground Strap Asm Schematic Location: 515 | Y | Ships in 25 days 18.95 |
WE15X20684 | GE Harness Asm Elec Schematic Location: 804 | No | ||
WE5M54 | GE Harness Sensors Schematic Location: 3364 | No | ||
Bearing | WE15X20515 | GE Harness Top Bearing Assembly Schematic Location: 375 | Ships in 15 days 26.95 | |
WE11X20686 | GE Heater And Housing Asm Schematic Location: 512 | No | ||
Housing | WE11M43 | GE Heater Housing Schematic Location: 513 | Y | Ships in 15 days 163.95 |
Hinge | WE01M10004 | GE Hinge Asm Schematic Location: 3051 | No | |
Housing | WE14M176 | GE Housing Blower Schematic Location: 218 | Ships in 15 days 44.95 | |
WE03X20434 | GE Idler Arm Schematic Location: 10039 | Y | In Stock In stock 76.95 | |
Control | WE4M398 | GE Inlet Control Thermostat Schematic Location: 506 | Y | In Stock In stock 47.95 |
Inlet | WE1M847 | GE Inlet Hose (Long) Schematic Location: 5001 | Ships in 15 days 46.95 | |
Inlet | WE1M848 | GE Inlet Hose(short) W/m & F Ends | Ships in 15 days 42.95 | |
Handle | WE01M10006 | GE Insert Handle Schematic Location: 603 | Ships in 15 days 19.95 | |
Washer | WE2M176 | GE Insulated Washer Schematic Location: 523 | Ships in 15 days 12.95 | |
Kit | WE25M71 | GE Kit Service Nozzle Asm Schematic Location: 329 | Ships in 15 days 59.95 | |
Knob, Dial, Button | WE04X21014 | GE Knob Schematic Location: 7 | Y | In Stock In stock 33.95 |
Knob, Dial, Button | WE01M10008 | GE Knob | No | |
Lamp | WE05X20431 | GE Lamp Schematic Location: 314 | Y | In Stock In stock 16.95 |
Leg, Foot, Caster | WE01X29357 | GE Leveling Leg | Y | In Stock In stock 21.95 |
Screw | WE1M642 | GE Levelling Screw Gray Schematic Location: 236 | Y | In Stock In stock 15.95 |
Circuit Board | WE04M10005 | GE Main Power Board Asm Schematic Location: 3365 | Ships in 15 days 174.95 | |
Circuit Board | WE1M864 | GE Main Power Board Support Schematic Location: 3366 | Ships in 15 days 52.95 | |
WE11M10001 | GE Mica Heater Schematic Location: 514 | Y | In Stock In stock 144.95 | |
Housing | WE11X20397 | GE Mica Heater And Housing As Schematic Location: 10149 | Y | In Stock In stock 128.95 |
WE01X0921 | GE Motor Bracket Schematic Location: 204 | No | ||
Pump, Motor | WE03X27285 | GE Motor Plate Schematic Location: 233 | Y | Ships in 27 days 35.95 |
Pump, Motor | WE13M10001 | GE Motor Plate | In Stock In stock 56.95 | |
Pump, Motor | WE13M39 | GE Motor Support Schematic Location: 205 | Y | Ships in 15 days 48.95 |
Nut | WE2M213 | GE Nut-strip Door Guide Schematic Location: 3357 | Y | In Stock In stock 12.95 |
Ring | WE1M461 | GE O Ring Schematic Location: 3127 | Y | In Stock In stock 12.95 |
WE4M391 | GE Outlet Cntrl Thermistor Schematic Location: 230 | No | ||
Outlet | WE4M448 | GE Outlet Control Thermistor Schematic Location: 10069 | Y | In Stock In stock 50.95 |
Panel | WE20M10005 | GE Panel Front Ww Schematic Location: 301 | Ships in 15 days 143.95 | |
Panel | WE20M10004 | GE Panel Top Schematic Location: 401 | Ships in 15 days 68.95 | |
Knob, Dial, Button | WE1M934 | GE Plug Button White Schematic Location: 112 | Y | Ships in 15 days 12.95 |
31-16629-2 | GE Pm Install Instructions Schematic Location: 1 | No | ||
31-16846 | GE Pm Mini Manual & Wiring Schematic Location: 1 | No | ||
Bracket, Flange, Blade | WE1M780 | GE Protection Bracket Schematic Location: 510 | In Stock In stock 12.95 | |
Belt, Pulley | WE12X83 | GE Pulley Idler Schematic Location: 216 | Y | In Stock In stock 27.95 |
Bracket, Flange, Blade | WE1M528 | GE Rear Bracket Level Leg Schematic Location: 410 | Y | In Stock In stock 17.95 |
Panel | WE20M381 | GE Rear Panel 7.5 C.f. Schematic Location: 420 | Ships in 15 days 161.95 | |
Plate | WE20M476 | GE Rear Plate Schematic Location: 10119 | Ships in 15 days 42.95 | |
Outer | WE01M10001 | GE Ring Outer Schematic Location: 307 | Ships in 15 days 134.95 | |
Washer | WE1M851 | GE Rubber Washer For Intake Hose Schematic Location: 5005 | Ships in 15 days 12.95 | |
WE1M584 | GE Scr 10-16 B Flq2 1-1/8 S Schematic Location: 3353 | In Stock In stock 12.95 | ||
WE2M282 | GE Scr 6-18 B B1q1 3/4 S Zn | Ships in 15 days 12.95 | ||
WE2M281 | GE Scr 8-18 Ab 1/2 Schematic Location: 3442 | Ships in 15 days 12.95 | ||
WE2M278 | GE Scr 8-18 Ab Pnq2 1/4 S Z Schematic Location: 3433 | Ships in 15 days 12.95 | ||
Washer | WE1M850 | GE Screen For Washer Hose Schematic Location: 5004 | Ships in 15 days 12.95 | |
Screw | WD2M101 | GE Screw Schematic Location: 715 | Ships in 15 days 12.95 | |
Screw | WE2M223 | GE Screw Schematic Location: 3446 | Ships in 15 days 12.95 | |
Screw | WE2M173 | GE Screw Schematic Location: 3440 | In Stock In stock 12.95 | |
Screw | WE1M280 | GE Screw Schematic Location: 3443 | Y | Ships in 15 days 12.95 |
Screw | WR2X9260 | GE Screw Schematic Location: 10019 | In Stock In stock 36.95 | |
Screw | WE2M202 | GE Screw Schematic Location: 232 | Y | Ships in 15 days 12.95 |
Screw | WE2M180 | GE Screw Schematic Location: 3439 | Ships in 15 days 11.95 | |
Screw | WE2M174 | GE Screw # 10 Schematic Location: 502 | Y | In Stock In stock 12.95 |
Screw | WE2M163 | GE Screw #10 Schematic Location: 534 | Y | In Stock In stock 12.95 |
Screw | WE2M196 | GE Screw #8 Schematic Location: 3046 | Y | In Stock In stock 12.95 |
Screw | WE1M583 | GE Screw #8-32 X 1/2 Hinge Schematic Location: 3352 | Y | Ships in 15 days 12.95 |
Screw | WD02X10057 | GE Screw 10-16X1/2 Ab Hxw S Schematic Location: 10009 | In Stock In stock 12.95 | |
Knob, Dial, Button | WE2M264 | GE Screw Center Knob Area Schematic Location: 3403 | Ships in 15 days 12.95 | |
Screw | WE2M211 | GE Screw Front Schematic Location: 3441 | Ships in 15 days 12.95 | |
Screw | WE2M200 | GE Screw Ground Schematic Location: 198 | Ships in 15 days 12.95 | |
Screw | WE2M302 | GE Screw Hinge To Front | Y | In Stock In stock 12.95 |
Screw | WE2M225 | GE Screw White #10-16 3/4 Schematic Location: 238 | Y | In Stock In stock 12.95 |
Screw | WZ5X158D | GE Screw-pkg 12 Schematic Location: 10159 | Y | In Stock In stock 34.95 |
Screw | WZ4X241D | GE Screw-pkg 12 Schematic Location: 3204 | Y | In Stock In stock 31.95 |
Duct, Vent | WE14M119 | GE Sensor Rods Schematic Location: 10089 | Y | In Stock In stock 177.95 |
Shaft | WE00X181L | GE Shaft Schematic Location: 511 | No | |
Bracket, Flange, Blade | WE3M33 | GE Shaft & Bracket Assembly Schematic Location: 508 | Y | In Stock In stock 38.95 |
Shield | WE01M10003 | GE Shield Front Schematic Location: 72 | In Stock In stock 50.95 | |
Shield | WE1M931 | GE Shield Motor Schematic Location: 3431 | Ships in 15 days 23.95 | |
Shield | WE1M932 | GE Shield Thermostat Schematic Location: 409 | Ships in 15 days 12.95 | |
Shield | WE1M933 | GE Shield Water Valve Schematic Location: 495 | Ships in 15 days 27.95 | |
WE01X22395 | GE Short Dryer Inlet Hose Schematic Location: 5002 | No | ||
Panel | WE20M400 | GE Side Panel Wh Schematic Location: 404 | Ships in 15 days 123.95 | |
Drum, Tub | WE1M462 | GE Sleeve Drum Schematic Location: 3106 | Y | In Stock In stock 36.95 |
Socket | WE5M62 | GE Socket With Harness | No | |
Bracket, Flange, Blade | WE01X20423 | GE Strain Relief Bracket El Schematic Location: 431 | Ships in 15 days 12.95 | |
WE13X0200 | GE Strap Motor Schematic Location: 203 | No | ||
Pump, Motor | WE13X200 | GE Strap Motor | In Stock In stock 12.95 | |
WE01M10007 | GE Strike Schematic Location: 3049 | Y | In Stock In stock 12.95 | |
Plate | WE1M569 | GE Strike Plate Schematic Location: 3356 | Y | In Stock In stock 12.95 |
Plate | WE1M570 | GE Strike Plate W/strk Hole Schematic Location: 3360 | Y | In Stock In stock 12.95 |
WD21X0557 | GE Switch Interlock Schematic Location: 803 | No | ||
Switch | WD21X10261 | GE Switch Interlock Schematic Location: 10169 | Y | In Stock In stock 31.95 |
Outlet | WE4M300 | GE T-stat Outlet Bkup Org Schematic Location: 240 | Y | Ships in 15 days 54.95 |
Strap | WE4M325 | GE Term Blk & Grnd Strap Schematic Location: 419 | Y | In Stock In stock 36.95 |
Cover,Cap | WE1M1102 | GE Term. Block Cover Schematic Location: 10059 | Y | Ships in 15 days 21.95 |
Sensor, Thermistor, Thermostat | WE04X20685 | GE Thermistor | Y | In Stock In stock 20.95 |
Sensor, Thermistor, Thermostat | WE4M137 | GE Thermostat Hi-limit Schematic Location: 507 | Y | In Stock In stock 73.95 |
Inlet | WE4M450 | GE Thermostat Inlet Schematic Location: 505 | Y | In Stock In stock 32.95 |
Bearing | WE03X25092 | GE Top Bearing Asm | Y | In Stock In stock 77.95 |
Bearing | WE3M55 | GE Top Bearing Asm | Y | Ships in 8 days 79.95 |
Duct, Vent | WE14X25088 | GE Trap Duct Asm Schematic Location: 311 | No | |
Pipe, Tube, Hose, Fitting | WE1M940 | GE Tube Water Front Schematic Location: 23 | Ships in 15 days 35.95 | |
Pipe, Tube, Hose, Fitting | WE1M1099 | GE Tube Water Front 11 Schematic Location: 10109 | Y | Ships in 27 days 28.95 |
Circuit Board | WE04M10006 | GE User Interface Board Schematic Location: 100 | Y | In Stock In stock 150.95 |
Valve, Float Assembly | WE4M503 | GE Valve Water Schematic Location: 476 | Y | In Stock In stock 70.95 |
Screw | WE2X263D | GE We2x263d Schematic Location: 10049 | Y | In Stock In stock 21.95 |
WE2M96 | GE We2x329 Schematic Location: 234 | Y | Ships in 15 days 12.95 | |
Outer | WE01M10002 | GE Window Outer Schematic Location: 3345 | Ships in 15 days 47.95 | |
Adaptor, Chargers | WE01X10401 | GE Y Adapter Schematic Location: 5003 | Y | In Stock In stock 33.95 |
Kit | WE25X20060 | GE Y Adaptor | Ships in 15 days 79.95 |
