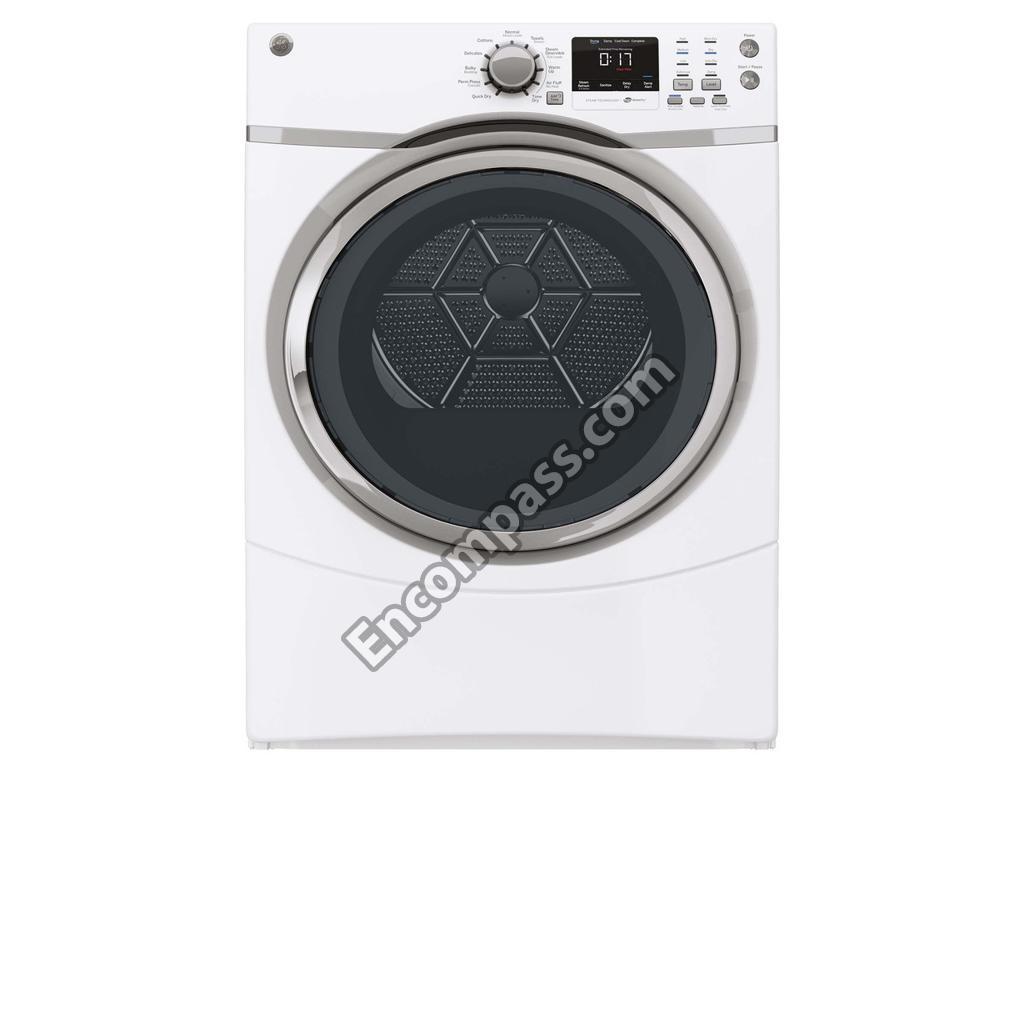

GFDS170EH2WW GE Dryer Electric Replacement Parts
Manufacturer
Model Number
GFDS170EH2WW
Description
Dryer Electric
Interactive Exploded View
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
WE10X20222 | GE Badge Schematic Location: 12 | Y | In Stock In stock 12.95 | |
| Bearing | WE1M300 | GE Bearing Retainer Schematic Location: 3102 | Y | In Stock In stock 44.95 |
WE03X34318 | GE Bearing Slide Schematic Location: 316 | Y | No | |
| WE03X37319 | GE Bearing Slide Schematic Location: 315 | Y | In Stock In stock 18.95 | |
WE03X37320 | GE Bearing Slide Schematic Location: 316 | Y | In Stock In stock 27.95 | |
| Gear, Wheel | WE16X20393 | GE Blower Wheel Schematic Location: 201 | Y | In Stock In stock 43.95 |
| Circuit Board | WE01X21176 | GE Board Dsm Schematic Location: 101 | Ships in 15 days 20.95 | |
| Base | WE20M429 | GE Bottom Chassis Base Schematic Location: 408 | Ships in 15 days 118.95 | |
| Bracket, Flange, Blade | WE13X21164 | GE Bracket Ui Schematic Location: 3402 | Ships in 15 days 12.95 | |
| Bracket, Flange, Blade | WE1M468 | GE Brkt Lvl Screw Rear Schematic Location: 411 | Y | In Stock In stock 29.95 |
| Knob, Dial, Button | WE25M83 | GE Button Kit Schematic Location: 9999 | Ships in 15 days 68.95 | |
| Circuit Board | WE04X29099 | GE Chassis And Board Assembly Schematic Location: 100 | Y | In Stock In stock 292.95 |
| Connector | WE01X20560 | GE Connector Service Schematic Location: 324 | Ships in 15 days 40.95 | |
| Diffuser | WE11X29438 | GE Diffuser Schematic Location: 504 | Y | In Stock In stock 39.95 |
| Door,Remote Control Door | WE10X22516 | GE Door Assembly Schematic Location: 333 | Ships in 15 days 233.95 | |
| Door,Remote Control Door | WE1M755 | GE Door Guide Schematic Location: 3361 | In Stock In stock 18.95 | |
| Hinge | WE01X24254 | GE Door Hinge Asm - Plated Schematic Location: 3051 | Y | In Stock In stock 61.95 |
| Cover,Cap | WE1M929 | GE Door Hinge Cover Schematic Location: 3346 | Ships in 15 days 16.95 | |
WE14X21615 | GE Dryer Baffle Schematic Location: 509 | In Stock In stock 40.95 | ||
| Housing | WE14M239 | GE Dryer Blower Housing Schematic Location: 218 | Ships in 15 days 81.95 | |
| Door,Remote Control Door | WE1M1011 | GE Dryer Door Latch Schematic Location: 10019 | Y | In Stock In stock 17.95 |
| Switch | WE4M415 | GE Dryer Door Switch Schematic Location: 380 | Y | In Stock In stock 37.95 |
WE21X21439 | GE Dryer Drum And Baffle Assembly Schematic Location: 503 | Y | In Stock In stock 317.95 | |
| Belt, Pulley | WE03X29897 | GE Dryer Drum Drive Belt Schematic Location: 213 | Y | In Stock In stock 29.95 |
| Pump, Motor | WE17X22215 | GE Dryer Motor And Pulley Schematic Location: 630 | Y | In Stock In stock 167.95 |
| Pump, Motor | WE1X921 | GE Dryer Motor Strap Schematic Location: 10139 | Y | Ships in 15 days 44.95 |
| Sensor, Thermistor, Thermostat | WE1M575 | GE Dryer Sensor Rod Schematic Location: 3363 | Y | In Stock In stock 18.95 |
| Sensor, Thermistor, Thermostat | WE04X22535 | GE Dryer Thermostat Schematic Location: 507 | Y | In Stock In stock 63.95 |
| Nozzle | WE1M943 | GE Elbow & Nozzle Asm Schematic Location: 326 | Y | Ships in 31 days 50.95 |
| Duct, Vent | WE14X21035 | GE Exhaust Duct Schematic Location: 228 | Ships in 15 days 30.95 | |
| Duct, Vent | WE09X27634 | GE Felt Trap Duct | Y | In Stock In stock 32.95 |
| Filter | WE18X25098 | GE Filter And Mesh Assembly Schematic Location: 300 | Y | In Stock In stock 44.95 |
| Panel | WE20M444 | GE Front Panel White Schematic Location: 301 | Ships in 15 days 147.95 | |
| Gasket , Seal | WE09X20569 | GE Gasket Schematic Location: 10069 | Y | In Stock In stock 16.95 |
| Gasket , Seal | WE09X22578 | GE Gasket Door Schematic Location: 610 | Y | Ships in 15 days 29.95 |
| Strap | WE1M1015 | GE Ground Strap Asm Schematic Location: 515 | Y | Ships in 12 days 18.95 |
| Handle | WE01X21171 | GE Handle Pocket Schematic Location: 603 | Y | In Stock In stock 38.95 |

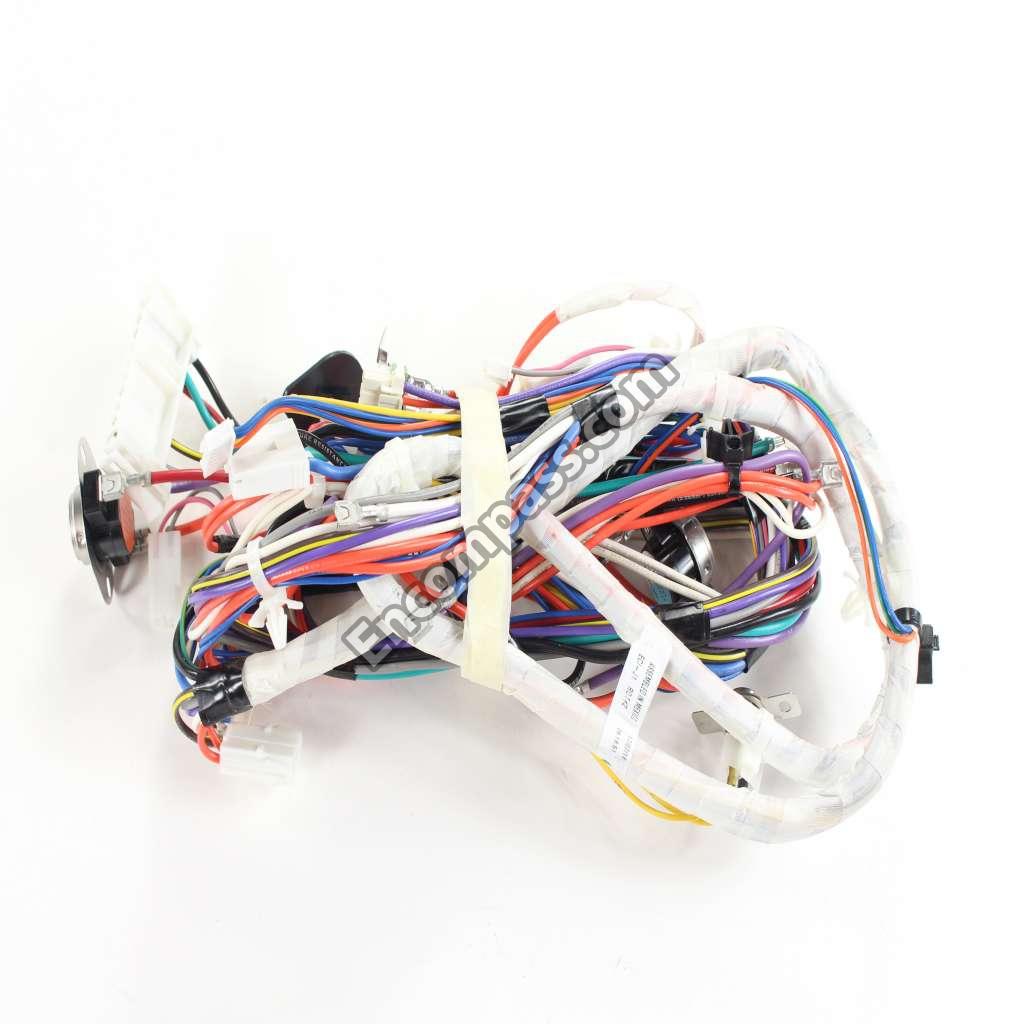

| WE15X23358 | GE Harness Elect Assembly Schematic Location: 804 | In Stock In stock 145.95 | ||
| WE5M54 | GE Harness Sensors Schematic Location: 3364 | No | ||
| Bearing | WE04X22494 | GE Harness Top Bearing Assembly Schematic Location: 375 | Ships in 15 days 35.95 | |
| WE11X20686 | GE Heater And Housing Asm Schematic Location: 512 | No | ||
| Housing | WE11M43 | GE Heater Housing Schematic Location: 513 | Y | Ships in 15 days 163.95 |
WE03X20434 | GE Idler Arm Schematic Location: 10029 | Y | In Stock In stock 76.95 | |
| Control | WE4M398 | GE Inlet Control Thermostat Schematic Location: 506 | Y | In Stock In stock 47.95 |
| Inlet | WE1M847 | GE Inlet Hose (Long) Schematic Location: 5001 | Ships in 15 days 46.95 | |
| Inlet | WE1M848 | GE Inlet Hose(short) W/m & F Ends Schematic Location: 5002 | Ships in 15 days 42.95 | |
| Washer | WE2M176 | GE Insulated Washer Schematic Location: 523 | Ships in 15 days 12.95 | |
| Kit | WE25M71 | GE Kit Service Nozzle Asm Schematic Location: 9999 | Ships in 15 days 59.95 | |
| Knob, Dial, Button | WE01X21167 | GE Knob Schematic Location: 7 | Y | In Stock In stock 30.95 |
| Lamp | WE05X20431 | GE Lamp Schematic Location: 314 | Y | In Stock In stock 16.95 |
| Screw | WE1M642 | GE Levelling Screw Gray Schematic Location: 236 | Y | In Stock In stock 15.95 |
WE11M10001 | GE Mica Heater Schematic Location: 514 | Y | In Stock In stock 144.95 | |
| Housing | WE11X20397 | GE Mica Heater And Housing As Schematic Location: 10109 | Y | In Stock In stock 128.95 |
| Pipe, Tube, Hose, Fitting | WE1M1105 | GE Mist Hose Schematic Location: 23 | Ships in 15 days 25.95 | |
| WE01X0921 | GE Motor Bracket Schematic Location: 204 | No | ||
| Pump, Motor | WE03X27285 | GE Motor Plate Schematic Location: 233 | Y | Ships in 31 days 35.95 |
| Pump, Motor | WE13M39 | GE Motor Support Schematic Location: 205 | Y | Ships in 15 days 48.95 |
| Nut | WE2M213 | GE Nut-strip Door Guide Schematic Location: 3357 | Y | In Stock In stock 12.95 |
| Ring | WE1M461 | GE O Ring Schematic Location: 3127 | Y | In Stock In stock 12.95 |
| WE4M391 | GE Outlet Cntrl Thermistor Schematic Location: 230 | No | ||
| Outlet | WE4M448 | GE Outlet Control Thermistor Schematic Location: 10039 | Y | In Stock In stock 50.95 |
| Panel | WE19X21165 | GE Panel Control Assembly Schematic Location: 13 | No | |
| Panel | WE20M10004 | GE Panel Top Schematic Location: 401 | Ships in 15 days 68.95 | |
| Knob, Dial, Button | WE1M934 | GE Plug Button White Schematic Location: 112 | Y | Ships in 15 days 12.95 |
| 31-16878 | GE Pm Mini Manual Schematic Location: 1 | No | ||
| 49-90520 | GE Pm Use And Care Manual Schematic Location: 1 | No | ||
| Bracket, Flange, Blade | WE1M780 | GE Protection Bracket Schematic Location: 510 | In Stock In stock 12.95 | |
| Belt, Pulley | WE12X83 | GE Pulley Idler Schematic Location: 216 | Y | In Stock In stock 27.95 |
| Bracket, Flange, Blade | WE1M528 | GE Rear Bracket Level Leg Schematic Location: 410 | Y | In Stock In stock 17.95 |
| Panel | WE20M381 | GE Rear Panel 7.5 C.f. Schematic Location: 420 | Ships in 15 days 161.95 | |
| Plate | WE20M476 | GE Rear Plate Schematic Location: 10089 | Ships in 15 days 42.95 | |
| Door,Remote Control Door | WE01X21170 | GE Ring Outer Door Schematic Location: 307 | Ships in 15 days 115.95 | |
| Washer | WE1M851 | GE Rubber Washer For Intake Hose Schematic Location: 5005 | Ships in 15 days 12.95 | |
| WE1M584 | GE Scr 10-16 B Flq2 1-1/8 S Schematic Location: 3353 | In Stock In stock 12.95 | ||
| WE2M281 | GE Scr 8-18 Ab 1/2 Schematic Location: 3442 | Ships in 15 days 12.95 | ||
| Washer | WE1M850 | GE Screen For Washer Hose Schematic Location: 5004 | Ships in 15 days 12.95 | |
| Screw | WD2M101 | GE Screw Schematic Location: 715 | Ships in 15 days 12.95 | |
| Screw | WR2X9260 | GE Screw Schematic Location: 10009 | In Stock In stock 36.95 | |
| Screw | WE2M202 | GE Screw Schematic Location: 232 | Y | Ships in 15 days 12.95 |
| Screw | WE2M173 | GE Screw Schematic Location: 3440 | In Stock In stock 12.95 | |
| Screw | WE01X25535 | GE Screw | Y | In Stock In stock 12.95 |
| Screw | WE2M174 | GE Screw # 10 Schematic Location: 502 | Y | In Stock In stock 12.95 |
| Screw | WE2M163 | GE Screw #10 Schematic Location: 534 | Y | In Stock In stock 12.95 |
| Screw | WE2M196 | GE Screw #8 Schematic Location: 3046 | Y | In Stock In stock 12.95 |
| Screw | WE1M583 | GE Screw #8-32 X 1/2 Hinge Schematic Location: 3352 | Y | Ships in 15 days 12.95 |
| Knob, Dial, Button | WE2M264 | GE Screw Center Knob Area Schematic Location: 3403 | Ships in 15 days 12.95 | |
| Screw | WE2M211 | GE Screw Front Schematic Location: 3441 | Ships in 15 days 12.95 | |
| Screw | WE2M302 | GE Screw Hinge To Front | Y | In Stock In stock 12.95 |
| Screw | WE2M225 | GE Screw White #10-16 3/4 Schematic Location: 238 | Y | In Stock In stock 12.95 |
| Screw | WZ5X158D | GE Screw-pkg 12 Schematic Location: 10119 | Y | In Stock In stock 34.95 |
| Duct, Vent | WE14M119 | GE Sensor Rods Schematic Location: 10059 | Y | In Stock In stock 177.95 |
| Bracket, Flange, Blade | WE3M33 | GE Shaft & Bracket Assembly Schematic Location: 508 | Y | In Stock In stock 38.95 |
| Shield | WE01X21163 | GE Shield Front Schematic Location: 72 | Ships in 15 days 35.95 | |
| Shield | WE1M932 | GE Shield Thermostat Schematic Location: 409 | Ships in 15 days 12.95 | |
| Shield | WE1M933 | GE Shield Water Valve Schematic Location: 495 | Ships in 15 days 27.95 | |
| Panel | WE20M400 | GE Side Panel Wh Schematic Location: 404 | Ships in 15 days 123.95 | |
| Drum, Tub | WE1M462 | GE Sleeve Drum Schematic Location: 3106 | Y | In Stock In stock 36.95 |
| Bracket, Flange, Blade | WE01X20423 | GE Strain Relief Bracket El Schematic Location: 431 | Ships in 15 days 12.95 | |
| WE13X0200 | GE Strap Motor Schematic Location: 203 | No | ||
| Pump, Motor | WE13X200 | GE Strap Motor | In Stock In stock 12.95 | |
WE01M10007 | GE Strike Schematic Location: 3049 | Y | In Stock In stock 12.95 | |
| Plate | WE1M569 | GE Strike Plate Schematic Location: 3356 | Y | In Stock In stock 12.95 |
| Plate | WE1M570 | GE Strike Plate W/strk Hole Schematic Location: 3360 | Y | In Stock In stock 12.95 |
| WD21X0557 | GE Switch Interlock Schematic Location: 803 | No | ||
| Switch | WD21X10261 | GE Switch Interlock Schematic Location: 10129 | Y | In Stock In stock 31.95 |
| Outlet | WE4M300 | GE T-stat Outlet Bkup Org Schematic Location: 240 | Y | Ships in 15 days 54.95 |
| Strap | WE4M325 | GE Term Blk & Grnd Strap Schematic Location: 419 | Y | In Stock In stock 36.95 |
| Cover,Cap | WE1M1102 | GE Term Block Cover Schematic Location: 430 | Y | Ships in 12 days 21.95 |
| Sensor, Thermistor, Thermostat | WE4M137 | GE Thermostat Hi-limit | Y | In Stock In stock 73.95 |
| Inlet | WE4M450 | GE Thermostat Inlet Schematic Location: 505 | Y | Ships in 12 days 32.95 |
| Bearing | WE03X25094 | GE Top Bearing Assembly Schematic Location: 313 | Y | In Stock In stock 71.95 |
| Duct, Vent | WE14X25086 | GE Trap Duct Complete Asm | Y | In Stock In stock 124.95 |
| Pipe, Tube, Hose, Fitting | WE1M1099 | GE Tube Water Front 11 Schematic Location: 10079 | Y | Ships in 31 days 28.95 |
| Valve, Float Assembly | WE4M503 | GE Valve Water Schematic Location: 476 | Y | In Stock In stock 70.95 |
WE2M96 | GE We2x329 Schematic Location: 234 | Y | Ships in 12 days 12.95 | |
| Door,Remote Control Door | WE01X25534 | GE Window Outer Door | Y | In Stock In stock 63.95 |
| Kit | WE25X20060 | GE Y Adaptor | Ships in 15 days 79.95 |
