GFDS175EH1DG GE Dryer Electric Replacement Parts

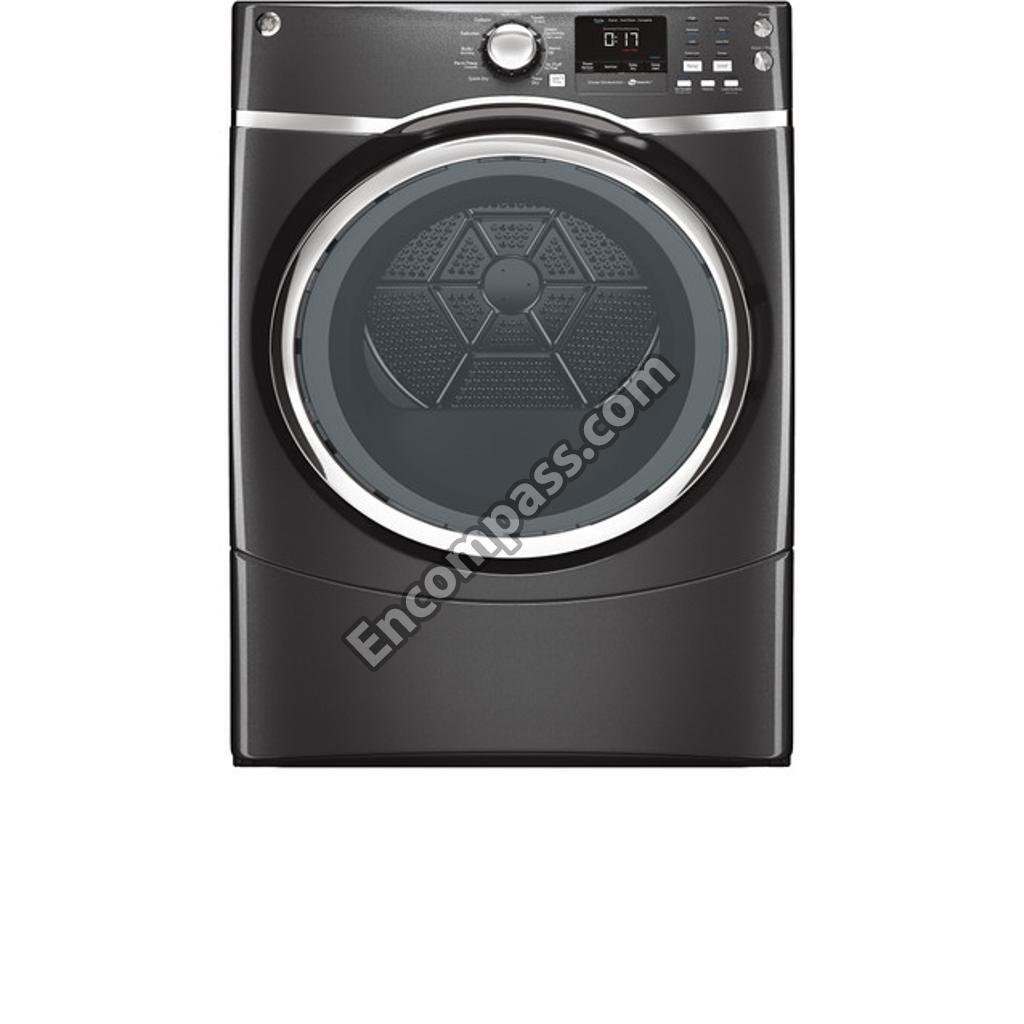

view enlarged image in modal windowGFDS175EH1DG Dryer Electric

Manufacturer
GE Replacement Parts

Model Number
GFDS175EH1DG

Description
Dryer Electric

Interactive Exploded View

Interactive Exploded View - view assemblies diagrams and click the part you need

Parts List

CategoryPart NumberDescriptionDemandAvailability
WE10X20222
GE Badge
Schematic Location: 12		YIn Stock In stock
12.95
BearingWE1M300
GE Bearing Retainer
Schematic Location: 3102		YIn Stock In stock
44.95
WE03X34318
GE Bearing Slide
Schematic Location: 316		YNo
WE03X37319
GE Bearing Slide
Schematic Location: 315		YIn Stock In stock
18.95
WE03X37320
GE Bearing Slide
Schematic Location: 316		YIn Stock In stock
27.95
ExhaustWE09X27636
GE Blower Gasket (Exhaust)
Schematic Location: 219		YIn Stock In stock
12.95
Gear, WheelWE16X20393
GE Blower Wheel
Schematic Location: 201		YIn Stock In stock
43.95
Circuit BoardWE01X21176
GE Board Dsm
Schematic Location: 101		Ships in 15 days
20.95
BaseWE20M429
GE Bottom Chassis Base
Schematic Location: 408		Ships in 15 days
118.95
Bracket, Flange, BladeWE13X21164
GE Bracket Ui
Schematic Location: 3402		Ships in 15 days
12.95
Bracket, Flange, BladeWE1M468
GE Brkt Lvl Screw Rear
Schematic Location: 411		YIn Stock In stock
29.95
Knob, Dial, ButtonWE1X21775
GE Button Beatuy
Schematic Location: 112		Ships in 15 days
11.95
Knob, Dial, ButtonWE25M83
GE Button KitShips in 15 days
68.95
Cover,CapWE1M1057
GE Cap Blind
Schematic Location: 428		No
Circuit BoardWE04X29099
GE Chassis And Board Assembly
Schematic Location: 100		YIn Stock In stock
292.95
ConnectorWE01X20560
GE Connector Service
Schematic Location: 324		Ships in 15 days
40.95
DiffuserWE11X29438
GE Diffuser
Schematic Location: 504		YIn Stock In stock
39.95
Door,Remote Control DoorWE10X22516
GE Door Assembly
Schematic Location: 333		Ships in 15 days
233.95
Door,Remote Control DoorWE1M755
GE Door Guide
Schematic Location: 3361		In Stock In stock
18.95
HingeWE01X24254
GE Door Hinge Asm - Plated
Schematic Location: 3051		YIn Stock In stock
61.95
Cover,CapWE1M929
GE Door Hinge Cover
Schematic Location: 3346		Ships in 15 days
16.95
WE14X21615
GE Dryer Baffle
Schematic Location: 509		In Stock In stock
40.95
HousingWE14M239
GE Dryer Blower Housing
Schematic Location: 218		Ships in 15 days
81.95
Door,Remote Control DoorWE1M1011
GE Dryer Door Latch
Schematic Location: 10019		YIn Stock In stock
17.95
SwitchWE4M415
GE Dryer Door Switch
Schematic Location: 380		YIn Stock In stock
37.95
WE21X21439
GE Dryer Drum And Baffle Assembly
Schematic Location: 503		YIn Stock In stock
317.95
Belt, PulleyWE03X29897
GE Dryer Drum Drive Belt
Schematic Location: 213		YIn Stock In stock
29.95
WE12M50
GE Dryer Idler Assembly
Schematic Location: 217		YIn Stock In stock
57.95
Pump, MotorWE17X22215
GE Dryer Motor And Pulley
Schematic Location: 630		YIn Stock In stock
167.95
Pump, MotorWE1X921
GE Dryer Motor Strap
Schematic Location: 10129		YShips in 15 days
44.95
Sensor, Thermistor, ThermostatWE1M575
GE Dryer Sensor Rod
Schematic Location: 3363		YIn Stock In stock
18.95
Sensor, Thermistor, ThermostatWE04X22535
GE Dryer Thermostat
Schematic Location: 507		YIn Stock In stock
63.95
PanelWE20X21179
GE Dryer Top Panel
Schematic Location: 401		Ships in 15 days
153.95
NozzleWE1M943
GE Elbow & Nozzle Asm
Schematic Location: 326		YShips in 22 days
50.95
Duct, VentWE14X21035
GE Exhaust Duct
Schematic Location: 228		Ships in 15 days
30.95
BearingWE09X27635
GE Felt Top Bearing
Schematic Location: 317		YIn Stock In stock
12.95
Duct, VentWE09X27634
GE Felt Trap DuctYIn Stock In stock
32.95
FilterWE18X25098
GE Filter And Mesh Assembly
Schematic Location: 300		YIn Stock In stock
44.95
Gasket , SealWE09X20569
GE Gasket
Schematic Location: 10069		YIn Stock In stock
16.95
Gasket , SealWE09X22578
GE Gasket Door
Schematic Location: 610		YShips in 15 days
29.95
StrapWE1M1015
GE Ground Strap Asm
Schematic Location: 515		YIn Stock In stock
18.95
HandleWE01X21171
GE Handle Pocket
Schematic Location: 603		YIn Stock In stock
38.95
WE15X23358
GE Harness Elect Assembly
Schematic Location: 804		In Stock In stock
145.95
WE5M54
GE Harness Sensors
Schematic Location: 3364		No
BearingWE04X22494
GE Harness Top Bearing Assembly
Schematic Location: 375		Ships in 15 days
35.95
HousingWE11X21156
GE Heater And Housing Assembly
Schematic Location: 512		YIn Stock In stock
135.95
HousingWE11M43
GE Heater Housing
Schematic Location: 513		YShips in 15 days
163.95
WE03X20434
GE Idler Arm
Schematic Location: 10029		YIn Stock In stock
76.95
PulleyWE03X31620
GE Idler Pulley
Schematic Location: 216		YIn Stock In stock
37.95
ControlWE4M398
GE Inlet Control Thermostat
Schematic Location: 506		YIn Stock In stock
47.95
InletWE1M847
GE Inlet Hose (Long)
Schematic Location: 5001		Ships in 15 days
46.95
InletWE1M848
GE Inlet Hose(short) W/m & F Ends
Schematic Location: 5002		Ships in 15 days
42.95
31-16754
GE Installation Instruction Fct 2 ""Ha""
Schematic Location: 1		No
WasherWE2M176
GE Insulated Washer
Schematic Location: 523		Ships in 15 days
12.95
KitWE25M71
GE Kit Service Nozzle Asm
Schematic Location: 329		Ships in 15 days
59.95
Knob, Dial, ButtonWE01X21167
GE Knob
Schematic Location: 7		YIn Stock In stock
30.95
LampWE05X20431
GE Lamp
Schematic Location: 314		YIn Stock In stock
16.95
ScrewWE1M642
GE Levelling Screw Gray
Schematic Location: 236		YIn Stock In stock
15.95
WE11M10001
GE Mica Heater
Schematic Location: 514		YIn Stock In stock
144.95
Pipe, Tube, Hose, FittingWE1M1105
GE Mist Hose
Schematic Location: 23		Ships in 15 days
25.95
WE01X0921
GE Motor Bracket
Schematic Location: 204		No
Pump, MotorWE03X27285
GE Motor Plate
Schematic Location: 233		YShips in 22 days
35.95
Pump, MotorWE13M39
GE Motor Support
Schematic Location: 205		YShips in 15 days
48.95
NutWE2M213
GE Nut-strip Door Guide
Schematic Location: 3357		YIn Stock In stock
12.95
RingWE1M461
GE O Ring
Schematic Location: 3127		YIn Stock In stock
12.95
WE4M391
GE Outlet Cntrl Thermistor
Schematic Location: 230		No
OutletWE4M448
GE Outlet Control Thermistor
Schematic Location: 10039		YIn Stock In stock
50.95
PanelWE20X23563
GE Panel Control Assembly
Schematic Location: 13		Ships in 15 days
182.95
PanelWE20X21178
GE Panel Front
Schematic Location: 301		Ships in 15 days
118.95
PanelWE20X21177
GE Panel Side
Schematic Location: 404		In Stock In stock
136.95
Knob, Dial, ButtonWE1M934
GE Plug Button WhiteYShips in 15 days
12.95
31-16878
GE Pm Mini Manual
Schematic Location: 1		No
49-90520
GE Pm Use And Care Manual
Schematic Location: 1		No
Bracket, Flange, BladeWE1M780
GE Protection Bracket
Schematic Location: 510		In Stock In stock
12.95
Bracket, Flange, BladeWE1M528
GE Rear Bracket Level Leg
Schematic Location: 410		YIn Stock In stock
17.95
PanelWE20M381
GE Rear Panel 7.5 C.f.
Schematic Location: 420		Ships in 15 days
161.95
PlateWE20M476
GE Rear Plate
Schematic Location: 10089		Ships in 15 days
42.95
Door,Remote Control DoorWE01X21170
GE Ring Outer Door
Schematic Location: 307		Ships in 15 days
115.95
WasherWE1M851
GE Rubber Washer For Intake Hose
Schematic Location: 5005		Ships in 15 days
12.95
WE1M584
GE Scr 10-16 B Flq2 1-1/8 S
Schematic Location: 3353		In Stock In stock
12.95
WE2M281
GE Scr 8-18 Ab 1/2
Schematic Location: 3442		Ships in 15 days
12.95
WE2M278
GE Scr 8-18 Ab Pnq2 1/4 S Z
Schematic Location: 3433		Ships in 15 days
12.95
WasherWE1M850
GE Screen For Washer Hose
Schematic Location: 5004		Ships in 15 days
12.95
ScrewWD2M101
GE Screw
Schematic Location: 715		Ships in 15 days
12.95
ScrewWE1M280
GE Screw
Schematic Location: 3443		YShips in 15 days
12.95
ScrewWE2M223
GE Screw
Schematic Location: 3446		Ships in 15 days
12.95
ScrewWE2M202
GE Screw
Schematic Location: 232		YShips in 15 days
12.95
ScrewWR2X9260
GE Screw
Schematic Location: 10009		In Stock In stock
36.95
ScrewWE01X25535
GE ScrewYIn Stock In stock
12.95
ScrewWE2M174
GE Screw # 10
Schematic Location: 502		YIn Stock In stock
12.95
ScrewWE2M163
GE Screw #10
Schematic Location: 534		YIn Stock In stock
12.95
ScrewWE2M196
GE Screw #8
Schematic Location: 3046		YIn Stock In stock
12.95
ScrewWE1M583
GE Screw #8-32 X 1/2 Hinge
Schematic Location: 3352		YShips in 15 days
12.95
Knob, Dial, ButtonWE2M264
GE Screw Center Knob Area
Schematic Location: 3403		Ships in 15 days
12.95
ScrewWE2M211
GE Screw Front
Schematic Location: 3441		Ships in 15 days
12.95
ScrewWE2M302
GE Screw Hinge To FrontYIn Stock In stock
12.95
ScrewWE2M225
GE Screw White #10-16 3/4
Schematic Location: 238		YIn Stock In stock
12.95
ScrewWZ5X158D
GE Screw-pkg 12
Schematic Location: 10109		YIn Stock In stock
34.95
Duct, VentWE14M119
GE Sensor Rods
Schematic Location: 10059		YIn Stock In stock
177.95
ShaftWE00X181L
GE Shaft
Schematic Location: 511		No
Bracket, Flange, BladeWE3M33
GE Shaft & Bracket Assembly
Schematic Location: 508		YIn Stock In stock
38.95
ShieldWE01X21163
GE Shield Front
Schematic Location: 72		Ships in 15 days
35.95
ShieldWE1M932
GE Shield Thermostat
Schematic Location: 409		Ships in 15 days
12.95
ShieldWE1M933
GE Shield Water Valve
Schematic Location: 495		Ships in 15 days
27.95
Drum, TubWE1M462
GE Sleeve Drum
Schematic Location: 3106		YIn Stock In stock
36.95
Bracket, Flange, BladeWE01X20423
GE Strain Relief Bracket El
Schematic Location: 431		Ships in 15 days
12.95
WE13X0200
GE Strap Motor
Schematic Location: 203		No
Pump, MotorWE13X200
GE Strap MotorIn Stock In stock
12.95
WE01M10007
GE Strike
Schematic Location: 3049		YIn Stock In stock
12.95
PlateWE1M569
GE Strike Plate
Schematic Location: 3356		YIn Stock In stock
12.95
PlateWE1M570
GE Strike Plate W/strk Hole
Schematic Location: 3360		YIn Stock In stock
12.95
WD21X0557
GE Switch Interlock
Schematic Location: 803		No
SwitchWD21X10261
GE Switch Interlock
Schematic Location: 10119		YIn Stock In stock
31.95
OutletWE4M300
GE T-stat Outlet Bkup Org
Schematic Location: 240		YShips in 15 days
54.95
StrapWE4M325
GE Term Blk & Grnd Strap
Schematic Location: 419		YIn Stock In stock
36.95
Cover,CapWE1M1102
GE Term Block Cover
Schematic Location: 430		YIn Stock In stock
21.95
InletWE4M450
GE Thermostat Inlet
Schematic Location: 505		YShips in 13 days
32.95
BearingWE03X25094
GE Top Bearing Assembly
Schematic Location: 313		YIn Stock In stock
71.95
Duct, VentWE14X25086
GE Trap Duct Complete AsmYIn Stock In stock
124.95
Pipe, Tube, Hose, FittingWE1M1099
GE Tube Water Front 11
Schematic Location: 10079		YShips in 22 days
28.95
Valve, Float AssemblyWE4M503
GE Valve Water
Schematic Location: 476		YIn Stock In stock
70.95
WE2M96
GE We2x329
Schematic Location: 234		YIn Stock In stock
12.95
Door,Remote Control DoorWE01X25534
GE Window Outer DoorYIn Stock In stock
63.95
KitWE25X20060
GE Y AdaptorShips in 15 days
79.95

About GE

GE Appliances manufactures kitchen appliances, home products, parts and accessories, and more. GE Appliances is an appliance company headquartered in Louisville, Kentucky. It is owned by Haier, a Chinese conglomerate. It is one of the largest appliance brands in the United States and manufactures appliances under the brands of GE, Profile, Cafe, Monogram, and Hotpoint. GE Appliances manufactures kitchen appliances, home products, parts and accessories, and more. From self-cleaning ranges to ice and water dispensers, to speedcook ovens and refrigerators that make coffee, GE Appliances has electrified and modernized life for more than 125 years with a legacy of invention. Products include: Innovative home appliances that improve lives, appliance parts, appliance service, selling home appliances to builders, remodelers, building distributors, solutions for all home appliances needs, and specifying home appliances for designers and architects.
