GTDS560GF1WS GE Replacement Parts

Manufacturer

Model Number

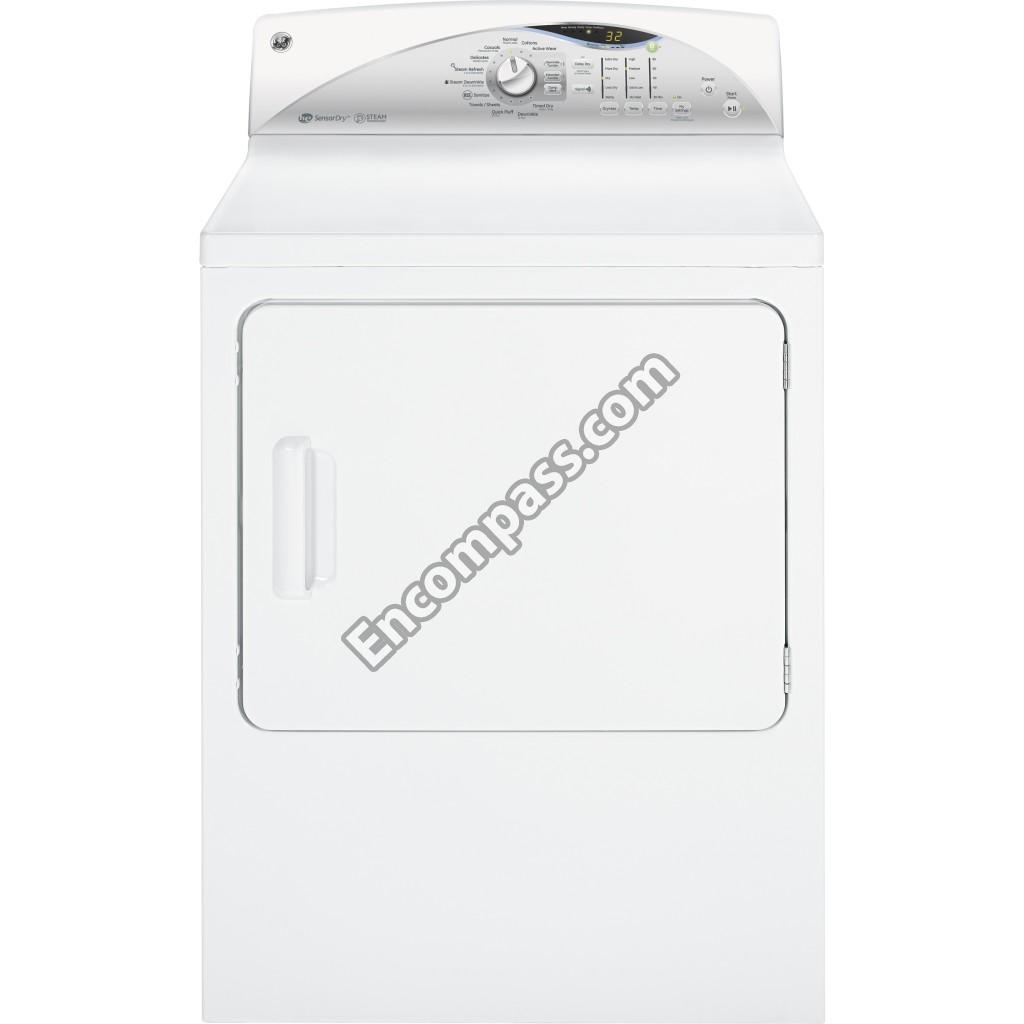

GTDS560GF1WS

Description
Dryer Gas

Interactive Exploded View

GE
WE18X25100
Filter & Mesh Asm.
71.95 - In Stock

Parts List

Category	Part Number	Description	Demand	Availability
Duct, Vent	WE14X25081	GE Air Duct Assembly Schematic Location: 311		No
	WE19M1777	GE Backsplash Schematic Location: 13		No
	WE14X20426	GE Baffle Schematic Location: 10189	Y	No
Bearing	WE25M40	GE Bearing Kit Schematic Location: 10059	Y	In Stock In stock 96.95
Bearing	WE1M300	GE Bearing Retainer Schematic Location: 3102	Y	In Stock In stock 44.95
	WE03X37317	GE Bearing Slide Schematic Location: 2018	Y	In Stock In stock 27.95
Bearing	WE3M56	GE Bearing Top Schematic Location: 313	Y	In Stock In stock 47.95
Bearing	WE1M504	GE Bearing-slide White Schematic Location: 317	Y	In Stock In stock 24.95
	WR02X8693	GE Beauty Button-wht Schematic Location: 112		No
Exhaust	WE09X27636	GE Blower Gasket (Exhaust) Schematic Location: 10079	Y	In Stock In stock 12.95
Housing	WE14M235	GE Blower Housing Assembly Schematic Location: 219		Ships in 15 days 45.95
Gear, Wheel	WE16X20393	GE Blower Wheel Schematic Location: 10099	Y	In Stock In stock 43.95
Circuit Board	WE4M551	GE Board Asm Mounted Schematic Location: 23		Ships in 15 days 217.95
Cover,Cap	WE20X20412	GE Bottom Cover Schematic Location: 10209		Ships in 15 days 78.95
Bracket, Flange, Blade	WE13X20405	GE Bracket Gas Valve Schematic Location: 10219		Ships in 15 days 33.95
Burner	WE14M104	GE Burner Asm. Schematic Location: 2034		Ships in 15 days 52.95
Base	WE20X20391	GE Chassis Base		Ships in 15 days 70.95
	WE04X0692	GE Coil Dual Schematic Location: 729		No
	WE04X0693	GE Coil Main Schematic Location: 731		No
	WE14X20581	GE Combustion Chamber Schematic Location: 526		No
	WE11X29440	GE Combustion Chamber Schematic Location: 526	Y	In Stock In stock 27.95
Pump, Motor	WE1M650	GE Connector Motor Schematic Location: 631		Ships in 15 days 20.95
	WE26M341	GE Cord Set - Gas		No
Cover,Cap	WE20X20417	GE Cover Wh Schematic Location: 401	Y	In Stock In stock 74.95
Diffuser	WE14X20408	GE Deflector Heat Schematic Location: 504		No
Diffuser	WE11X29438	GE Deflector Heat Schematic Location: 504	Y	In Stock In stock 39.95
Diffuser	WE11X29443	GE Diffuser Gas Schematic Location: 10329		Ships in 15 days 53.95
	WE21M69	GE Drum Asm Schematic Location: 503		No
Drum, Tub	WE21X20565	GE Drum Assembly Schematic Location: 10299		Ships in 15 days 202.95
Door,Remote Control Door	WE1M1011	GE Dryer Door Latch Schematic Location: 10039	Y	In Stock In stock 17.95
Switch	WE4M415	GE Dryer Door Switch Schematic Location: 380	Y	In Stock In stock 37.95
Pump, Motor	WE17X22217	GE Dryer Drive Motor Schematic Location: 10119	Y	Ships in 11 days 173.95
Belt, Pulley	WE03X29897	GE Dryer Drum Drive Belt Schematic Location: 213	Y	In Stock In stock 29.95
Duct, Vent	WE09X27634	GE Dryer Duct Trap Felt Schematic Location: 10009	Y	In Stock In stock 32.95
Panel	WE20X20559	GE Dryer Rear Panel Schematic Location: 10169		Ships in 15 days 70.95
Coil	WE4X692	GE Dual Coil	Y	In Stock In stock 41.95
Duct, Vent	WE14M197	GE Duct Transition Schematic Location: 527		No
Duct, Vent	WE11X29441	GE Duct Transition Schematic Location: 527	Y	Ships in 15 days 39.95
Nozzle	WE1M943	GE Elbow & Nozzle Asm Schematic Location: 4029	Y	Ships in 30 days 50.95
Duct, Vent	WE14X20421	GE Elbow Exhaust Schematic Location: 10049	Y	Ships in 15 days 35.95
Cover,Cap	WE19X20467	GE End Cap Rh Wh Schematic Location: 2004		Ships in 15 days 21.95
Duct, Vent	WE09X20441	GE Felt Schematic Location: 312		No
Filter	WE18X25100	GE Filter & Mesh Asm.	Y	In Stock In stock 71.95
	WE4X448	GE Flame Detector Schematic Location: 2032	Y	In Stock In stock 69.95
Shield	WE1M978	GE Flame Detector Shield Schematic Location: 4025		Ships in 15 days 27.95
Panel	WE49X22295	GE Front Panel Schematic Location: 10129	Y	In Stock In stock 164.95
Leg, Foot, Caster	WE2M188	GE Front Stabilizing Legs Schematic Location: 304	Y	In Stock In stock 19.95
Cooking Plate	WE1M869	GE Ft Heat Deflection Plate Schematic Location: 302		Ships in 15 days 42.95
Fuse, Thermal Fuse, Breaker	WE1M1002	GE Fuse Ccmr 30 Amp 120V Schematic Location: 418	Y	In Stock In stock 56.95
Diffuser	WE14X20401	GE Gas Diffuser & Plate Asm		Ships in 15 days 81.95
Gasket , Seal	WE1M825	GE Gasket (Seal) 39 Inch Schematic Location: 325	Y	In Stock In stock 12.95
Exhaust	WE1M966	GE Gasket Seal Schematic Location: 218		No
Strap	WE1M1015	GE Ground Strap Asm Schematic Location: 515	Y	Ships in 11 days 18.95
Handle	WE01X20419	GE Handle White Schematic Location: 10229	Y	In Stock In stock 30.95
	WE26M409	GE Harness Asm Gas Schematic Location: 2222		No
	WE5M105	GE Harness Jumper Schematic Location: 36		Ships in 15 days 14.95
	WE5M39	GE Harness Sensor Schematic Location: 2036		Ships in 15 days 73.95
Hinge	WE1M1033	GE Hinge	Y	In Stock In stock 13.95
Holder	WE1M1003	GE Holder Fuse Schematic Location: 417	Y	Ships in 15 days 47.95
Kit	WE25M75	GE Hose Back Asm Kit Schematic Location: 4007		Ships in 15 days 48.95
	WE03X20434	GE Idler Arm Schematic Location: 10069	Y	In Stock In stock 76.95
Ignition	WE4M456	GE Ignitor Schematic Location: 717		Ships in 15 days 90.95
	31-16306	GE Ini Manualn++,1 Schematic Location: 1		No
Control	WE4M398	GE Inlet Control Thermistor Schematic Location: 10199	Y	In Stock In stock 47.95
Inlet	WE1M847	GE Inlet Hose (Long) Schematic Location: 5001		Ships in 15 days 46.95
Inlet	WE1M848	GE Inlet Hose(short) W/m & F Ends Schematic Location: 5002		Ships in 15 days 42.95
Washer	WE2M176	GE Insulated Washer Schematic Location: 523		Ships in 15 days 12.95
Cover,Cap	WE49X22294	GE Kit Of Service End Cap Schematic Location: 10149		Ships in 15 days 55.95
Kit	WE25M71	GE Kit Service Nozzle Assembly Schematic Location: 4027		Ships in 15 days 59.95
Knob, Dial, Button	WH01X10645	GE Knob Asm Schematic Location: 19	Y	No
Lamp	WE05X20431	GE Lamp Schematic Location: 2016	Y	In Stock In stock 16.95
	WE01X1076	GE Leak Limiter Schematic Location: 710		No
	WE1X1076	GE Leak Limiter		Ships in 15 days 18.95
Leg, Foot, Caster	WE01X29357	GE Levelling Leg Schematic Location: 236	Y	In Stock In stock 21.95
Coil	WE4X693	GE Main Coil	Y	In Stock In stock 38.95
Pump, Motor	WE13X20394	GE Motor Plate Schematic Location: 10249	Y	No
Pump, Motor	WE1X921	GE Motor Strap Schematic Location: 204	Y	Ships in 15 days 44.95
Pump, Motor	WE13M39	GE Motor Support Schematic Location: 205	Y	Ships in 15 days 48.95
Nozzle	WE40M107	GE Nozzle Asm Schematic Location: 4026		Ships in 15 days 77.95
Ring	WE1M461	GE O Ring Schematic Location: 3127	Y	In Stock In stock 12.95
	WE01X1148	GE Orifice Schematic Location: 709		No
	WE1X1148	GE Orifice Main		Ships in 15 days 41.95
Door,Remote Control Door	WE10X20468	GE Outer Door Wh Schematic Location: 10089		No
	WE4M391	GE Outlet Cntrl Thermistor Schematic Location: 241		No
Outlet	WE4M448	GE Outlet Control Thermistor Schematic Location: 10179	Y	In Stock In stock 50.95
Door,Remote Control Door	WR01X21159	GE Plug Door	Y	In Stock In stock 12.95
	31-16225-2	GE Pm Install Instructions Schematic Location: 1		No
	49-90452	GE Pm Owners Manual Schematic Location: 1		No
Belt, Pulley	WE12X83	GE Pulley Idler Schematic Location: 216	Y	In Stock In stock 27.95
Connector	WE01X20560	GE Quick Connector - Tubing		Ships in 15 days 40.95
Panel	WE19M1481	GE Rear Panel Schematic Location: 2006	Y	Ships in 15 days 56.95
Washer	WE1M851	GE Rubber Washer For Intake Hose Schematic Location: 5005		Ships in 15 days 12.95
	WE2M307	GE Scr 10-16 X 1/2 Ab Schematic Location: 235		In Stock In stock 12.95
	WE2M282	GE Scr 6-18 B B1q1 3/4 S Zn Schematic Location: 4031		Ships in 15 days 12.95
	WR01X10317	GE Scr 8-32 Ca Hxw 1/2	Y	Ships in 30 days 12.95
	WE2M308	GE Scr 815 X 7/16 Ab Schematic Location: 272		Ships in 15 days 13.95
Washer	WE1M850	GE Screen For Washer Hose Schematic Location: 5004		Ships in 15 days 12.95
Screw	WE2M189	GE Screw Schematic Location: 223		Ships in 15 days 12.95
Screw	WE2M202	GE Screw Schematic Location: 232	Y	Ships in 15 days 12.95
Screw	WR2X9260	GE Screw Schematic Location: 10029		In Stock In stock 36.95
Screw	WE2M173	GE Screw Schematic Location: 75		In Stock In stock 12.95
Screw	WE1M280	GE Screw Schematic Location: 240	Y	Ships in 15 days 12.95
Screw	WE2M223	GE Screw Schematic Location: 3426		Ships in 15 days 12.95
Screw	WD2M101	GE Screw Schematic Location: 715		Ships in 15 days 12.95
Screw	WE2M174	GE Screw # 10 Schematic Location: 502	Y	In Stock In stock 12.95
Screw	WE2M163	GE Screw #10 Schematic Location: 534	Y	In Stock In stock 12.95
Screw	WE2M196	GE Screw #8 Schematic Location: 3046	Y	In Stock In stock 12.95
Screw	WE2M160	GE Screw #8 Schematic Location: 403	Y	In Stock In stock 12.95
	WE02X0333	GE Screw (Coil Mtg Brkt) Schematic Location: 730		No
Screw	WD02X10057	GE Screw 10-16X1/2 Ab Hxw S Schematic Location: 10019		In Stock In stock 12.95
Screw	WR01X10196	GE Screw 8-18 Hi/lo 5/8 Schematic Location: 149	Y	Ships in 15 days 12.95
Screw	WE2M200	GE Screw Ground Schematic Location: 206		Ships in 15 days 12.95
Screw	WD21M131	GE Screw Ground Front Schematic Location: 319		Ships in 15 days 12.95
Screw	WE2M228	GE Screw No.8 ( Ground ) Schematic Location: 2010		Ships in 15 days 12.95
Shield	WE1M977	GE Shield Gas Valve Schematic Location: 2038		Ships in 15 days 29.95
Shield	WE1M931	GE Shield Motor Schematic Location: 4018		Ships in 15 days 23.95
Shield	WE1M976	GE Shield Thermostat Schematic Location: 4022		Ships in 15 days 23.95
Rack	WE01X20677	GE Shoerack Leader Schematic Location: 10289		Ships in 15 days 79.95
Panel	WE20X20406	GE Side Panel White Schematic Location: 10139		No
Drum, Tub	WE1M462	GE Sleeve Drum Schematic Location: 3106	Y	In Stock In stock 36.95
Pipe, Tube, Hose, Fitting	WE1M948	GE Sleeve Water Tube Schematic Location: 4032		Ships in 15 days 55.95
Socket	WE5M48	GE Socket Asm Schematic Location: 375	Y	No
Bracket, Flange, Blade	WE01X20424	GE Strain Relief Bracket Ga Schematic Location: 10279		Ships in 15 days 11.95
Pump, Motor	WE13X200	GE Strap Motor Schematic Location: 203		In Stock In stock 12.95
Door,Remote Control Door	WE1X1192	GE Strike Door Schematic Location: 3049	Y	In Stock In stock 12.95
Switch	WD21X10261	GE Switch Interlock Schematic Location: 803	Y	In Stock In stock 31.95
Cover,Cap	WE1M1102	GE Term Block Cover Schematic Location: 430	Y	Ships in 11 days 21.95
Drum, Tub	WE4M216	GE Thermostat Bias Drum Out Schematic Location: 230	Y	In Stock In stock 79.95
Sensor, Thermistor, Thermostat	WE4M137	GE Thermostat Hi-limit Schematic Location: 500	Y	In Stock In stock 73.95
Sensor, Thermistor, Thermostat	WE4M80	GE Thermostat Safety Schematic Location: 2030	Y	In Stock In stock 41.95
Pipe, Tube, Hose, Fitting	WE1M1099	GE Tube Water Front 11 Schematic Location: 10259	Y	Ships in 30 days 28.95
Pipe, Tube, Hose, Fitting	WE11X20711	GE Valve And Pipe Assembly Schematic Location: 10239	Y	Ships in 15 days 149.95
Kit	WE49X22600	GE Water Valve Asm Kit Schematic Location: 10269		Ships in 15 days 138.95
Shield	WE25M90	GE Water Valve Shield Kit Schematic Location: 4016		Ships in 15 days 48.95
Clip	WE1X1091	GE We1x1091 Schematic Location: 10309		Ships in 15 days 6.95
	WE2M96	GE We2x329 Schematic Location: 234	Y	Ships in 11 days 12.95
Screw	WZ5X158D	GE Wz5x158d Schematic Location: 10339	Y	In Stock In stock 34.95
Kit	WE25X20060	GE Y Adaptor		Ships in 15 days 79.95
