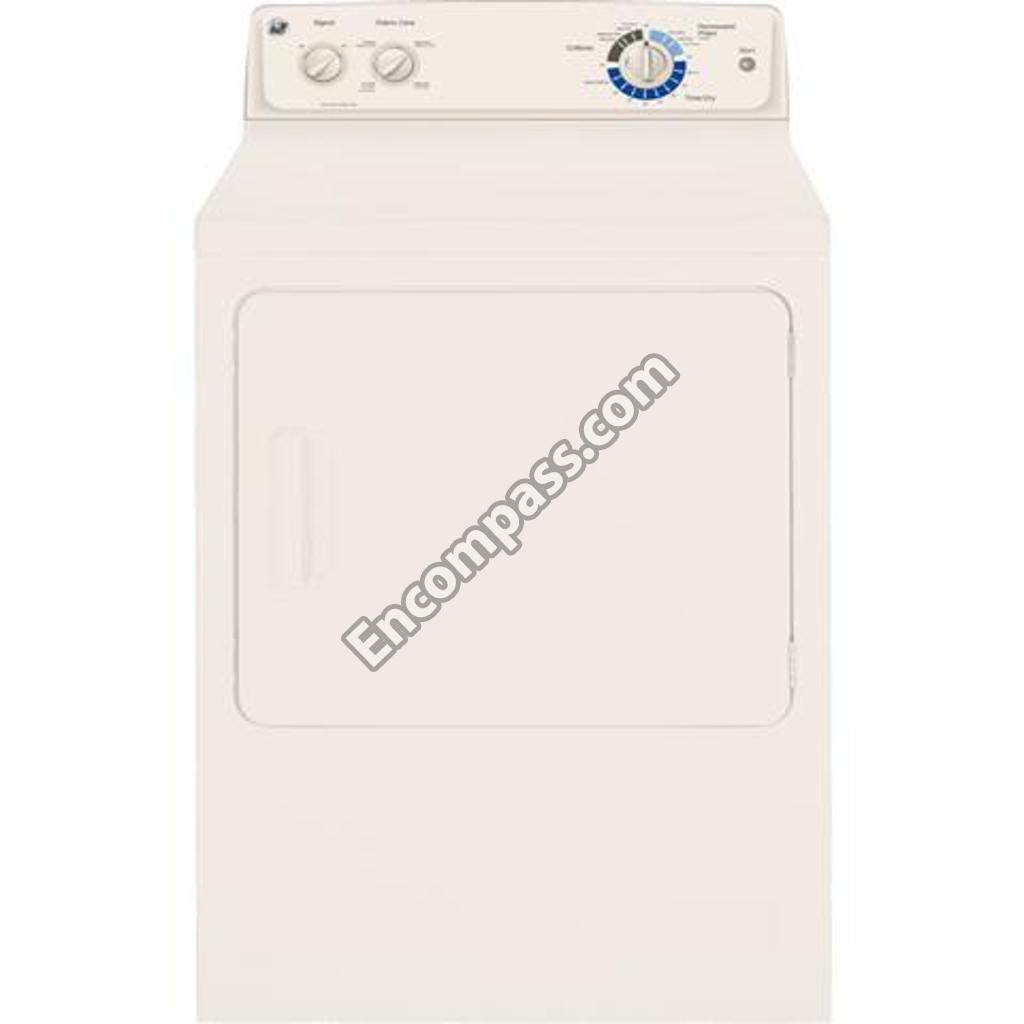

GTDX185ED1CC GE Dryer Electric Replacement Parts
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Duct, Vent | WE14X21334 | GE Air Duct Assembly Schematic Location: 311 | No | |
| Duct, Vent | WE14X25080 | GE Air Duct Assembly Schematic Location: 311 | Y | In Stock In stock 88.95 |
| WE19X20674 | GE Backsplash Asm White | Ships in 15 days 97.95 | ||
WE14X20426 | GE Baffle | Y | No | |
WE14M75 | GE Baffle Schematic Location: 509 | Y | Ships in 15 days 25.95 | |
| Bearing | WE25M40 | GE Bearing Kit Schematic Location: 3187 | Y | In Stock In stock 96.95 |
| Bearing | WE1M300 | GE Bearing Retainer Schematic Location: 3102 | Y | In Stock In stock 44.95 |
WE03X37317 | GE Bearing Slide Schematic Location: 316 | Y | In Stock In stock 27.95 | |
| Bearing | WE3M56 | GE Bearing Top | Y | In Stock In stock 47.95 |
| Bearing | WE1M504 | GE Bearing-slide White Schematic Location: 317 | Y | In Stock In stock 24.95 |
| Exhaust | WE09X27636 | GE Blower Gasket (Exhaust) Schematic Location: 3207 | Y | In Stock In stock 12.95 |
| Housing | WE14X20392 | GE Blower Housing Assembly Schematic Location: 3357 | No | |
| Gear, Wheel | WE16X20393 | GE Blower Wheel Schematic Location: 3217 | Y | In Stock In stock 43.95 |
| Cover,Cap | WE20X20412 | GE Bottom Cover Schematic Location: 3327 | Ships in 15 days 78.95 | |
| Cover,Cap | WE1M1030 | GE Bottom Cover Heat Shield Schematic Location: 3377 | Ships in 15 days 25.95 | |
| Knob, Dial, Button | WE1M692 | GE Button & Clip Asm Brown Schematic Location: 2232 | Ships in 15 days 13.95 | |
WE4M318 | GE Buzzer Fixed Schematic Location: 12 | Y | Ships in 15 days 54.95 | |
| Base | WE20X20391 | GE Chassis Base | Ships in 15 days 70.95 | |
| Knob, Dial, Button | WH01X10106 | GE Clip-knob Schematic Location: 41 | Y | No |
| Pump, Motor | WE1M650 | GE Connector Motor Schematic Location: 631 | Ships in 15 days 20.95 | |
| Cover,Cap | WE20X20576 | GE Cover Top Schematic Location: 3347 | Ships in 15 days 86.95 | |
| Diffuser | WE14X20408 | GE Deflector Heat Schematic Location: 504 | No | |
| Diffuser | WE11X29438 | GE Deflector Heat Schematic Location: 504 | Y | In Stock In stock 39.95 |
| Drum, Tub | WE21X20563 | GE Drum | Ships in 15 days 133.95 | |
| Drum, Tub | WE21X20562 | GE Drum Assembly Schematic Location: 3287 | Ships in 15 days 355.95 | |
| Door,Remote Control Door | WE1M1011 | GE Dryer Door Latch Schematic Location: 3167 | Y | In Stock In stock 17.95 |
| Switch | WE4M415 | GE Dryer Door Switch Schematic Location: 380 | Y | In Stock In stock 37.95 |
| Pump, Motor | WE17X22217 | GE Dryer Drive Motor Schematic Location: 3247 | Y | Ships in 12 days 173.95 |
| Belt, Pulley | WE03X29897 | GE Dryer Drum Drive Belt Schematic Location: 213 | Y | In Stock In stock 29.95 |
| Duct, Vent | WE09X27634 | GE Dryer Duct Trap Felt Schematic Location: 3137 | Y | In Stock In stock 32.95 |
| Filter | WE18X25100 | GE Dryer Lint Filter | Y | In Stock In stock 71.95 |
| Knob, Dial, Button | WE01X20375 | GE Dryer Timer Knob - Bisque Schematic Location: 3297 | Y | In Stock In stock 34.95 |
| Duct, Vent | WE14X20421 | GE Elbow Exhaust Schematic Location: 3177 | Y | Ships in 15 days 35.95 |
| Cover,Cap | WE19X20571 | GE End Cap Schematic Location: 3267 | Ships in 15 days 27.95 | |
| Cover,Cap | WE19X20572 | GE End Cap Rh Cc | Ships in 15 days 29.95 | |
| Duct, Vent | WE09X20441 | GE Felt Schematic Location: 312 | No | |
| Filter | WE18X25101 | GE Filter Schematic Location: 300 | No | |
| WE00M169 | GE Gasket (Seal) Schematic Location: 325 | No | ||
| Gasket , Seal | WE1M825 | GE Gasket (Seal) 39 Inch | Y | In Stock In stock 12.95 |
| Exhaust | WE1M966 | GE Gasket Seal Schematic Location: 218 | No | |
| Strap | WE1M1015 | GE Ground Strap Asm Schematic Location: 515 | Y | Ships in 12 days 18.95 |
| Handle | WE01X20580 | GE Handle Door Schematic Location: 3427 | Y | In Stock In stock 28.95 |
| Housing | WE11M10002 | GE Heater Housing Schematic Location: 3317 | Y | In Stock In stock 36.95 |
| Hinge | WE1M1033 | GE Hinge | Y | In Stock In stock 13.95 |
WE03X20434 | GE Idler Arm Schematic Location: 3197 | Y | In Stock In stock 76.95 | |
| Door,Remote Control Door | WE10X20578 | GE Inner Door Assembly Schematic Location: 3417 | Ships in 15 days 75.95 | |
| Panel | WE49X22354 | GE Kit Front Panel Schematic Location: 3407 | No | |
| Lamp | WE05X20431 | GE Lamp Schematic Location: 2012 | Y | In Stock In stock 16.95 |
| Leg, Foot, Caster | WE01X29357 | GE Leveling Leg Schematic Location: 3277 | Y | In Stock In stock 21.95 |
| Housing | WE11X20397 | GE Mica Heater And Hsng Assembly Schematic Location: 512 | Y | In Stock In stock 128.95 |
WE11M10001 | GE Mica Unit Assembly Schematic Location: 2026 | Y | In Stock In stock 144.95 | |
| 31-16255 | GE Mini Manual Schematic Location: 1 | No | ||
| Pump, Motor | WE13X20394 | GE Motor Plate Schematic Location: 3367 | Y | No |
| Pump, Motor | WE1X921 | GE Motor Strap Schematic Location: 204 | Y | Ships in 15 days 44.95 |
| Pump, Motor | WE13M39 | GE Motor Support Schematic Location: 205 | Y | Ships in 15 days 48.95 |
| Ring | WE1M461 | GE O Ring Schematic Location: 3127 | Y | In Stock In stock 12.95 |
| Panel | WE19M1481 | GE Panel Back Schematic Location: 72 | Y | Ships in 15 days 56.95 |
| Door,Remote Control Door | WE10X20577 | GE Panel Door Outer Bisque Schematic Location: 3337 | Ships in 15 days 75.95 | |
| 31-16224-2 | GE Pm Install Instructions Schematic Location: 1 | No | ||
| Bracket, Flange, Blade | WE1M780 | GE Protection Bracket Schematic Location: 510 | In Stock In stock 12.95 | |
| Belt, Pulley | WE12X83 | GE Pulley Idler Schematic Location: 216 | Y | In Stock In stock 27.95 |
| Switch | WE4M416 | GE Push To Start Switch Schematic Location: 35 | Y | In Stock In stock 30.95 |
| Switch | WE4M399 | GE R.switch (Xcare) On/off Schematic Location: 85 | Y | In Stock In stock 29.95 |
| Cover,Cap | WE20X23559 | GE Rear Panel 6 Cu Ft | Ships in 15 days 72.95 | |
| Triac, Diode or Resistor | WE4M255 | GE Resistor Schematic Location: 80 | Y | In Stock In stock 35.95 |
| Switch | WE4M407 | GE Rotary Switch 4Temp Reg Schematic Location: 87 | Y | In Stock In stock 108.95 |
| Door,Remote Control Door | WR01X21263 | GE Rvsbl Door Caps Bisque Schematic Location: 112 | In Stock In stock 12.95 | |
WE2M307 | GE Scr 10-16 X 1/2 Ab Schematic Location: 235 | In Stock In stock 12.95 | ||
| WE2M308 | GE Scr 815 X 7/16 Ab Schematic Location: 272 | Ships in 15 days 13.95 | ||
| Screw | WE1M280 | GE Screw Schematic Location: 240 | Y | Ships in 15 days 12.95 |
| Screw | WR2X9260 | GE Screw Schematic Location: 3157 | In Stock In stock 36.95 | |
| Screw | WE2M173 | GE Screw Schematic Location: 75 | In Stock In stock 12.95 | |
| Screw | WE2M189 | GE Screw Schematic Location: 223 | Ships in 15 days 12.95 | |
| Screw | WE2M202 | GE Screw Schematic Location: 232 | Y | Ships in 15 days 12.95 |
| Screw | WE2M174 | GE Screw # 10 Schematic Location: 502 | Y | In Stock In stock 12.95 |
| Screw | WE2M163 | GE Screw #10 Schematic Location: 534 | Y | In Stock In stock 12.95 |
| Screw | WE2M196 | GE Screw #8 Schematic Location: 3046 | Y | In Stock In stock 12.95 |
| Screw | WE2M160 | GE Screw #8 Schematic Location: 403 | Y | In Stock In stock 12.95 |
| Screw | WD02X10057 | GE Screw 10-16X1/2 Ab Hxw S Schematic Location: 3147 | In Stock In stock 12.95 | |
| Screw | WE02X20422 | GE Screw 8-18X7 16 Schematic Location: 2 | Ships in 15 days 12.95 | |
| Screw | WE2M200 | GE Screw Ground Schematic Location: 206 | Ships in 15 days 12.95 | |
| Screw | WE2M228 | GE Screw No.8 ( Ground ) Schematic Location: 2006 | Ships in 15 days 12.95 | |
| Switch | WE2M215 | GE Screw Switch Plate 8-18 | Ships in 15 days 11.95 | |
| WE20M479 | GE Side Panel Schematic Location: 404 | No | ||
| Panel | WE20M491 | GE Side Panel Cc Schematic Location: 3447 | Ships in 15 days 78.95 | |
| Drum, Tub | WE1M462 | GE Sleeve Drum Schematic Location: 3106 | Y | In Stock In stock 36.95 |
| Socket | WE5M48 | GE Socket Asm Schematic Location: 2016 | Y | No |
| Bracket, Flange, Blade | WE01X20423 | GE Strain Relief Bracket Schematic Location: 3227 | Ships in 15 days 12.95 | |
| Pump, Motor | WE13X200 | GE Strap Motor | In Stock In stock 12.95 | |
| Door,Remote Control Door | WE1X1192 | GE Strike Door | Y | In Stock In stock 12.95 |
| Switch | WD21X10261 | GE Switch Interlock Schematic Location: 803 | Y | In Stock In stock 31.95 |
| Strap | WE4M325 | GE Term Blk & Grnd Strap Schematic Location: 2020 | Y | In Stock In stock 36.95 |
| Cover,Cap | WE1M1102 | GE Term. Block Cover Schematic Location: 3237 | Y | Ships in 12 days 21.95 |
| Sensor, Thermistor, Thermostat | WE4M181 | GE Thermostat Bias Ctr Inlt Schematic Location: 506 | Y | In Stock In stock 36.95 |
| Drum, Tub | WE4M216 | GE Thermostat Bias Drum Out Schematic Location: 230 | Y | In Stock In stock 79.95 |
| Sensor, Thermistor, Thermostat | WE4M137 | GE Thermostat Hi-limit Schematic Location: 2022 | Y | In Stock In stock 73.95 |
| Sensor, Thermistor, Thermostat | WE4M160 | GE Thermostat Safety Left Schematic Location: 505 | Y | In Stock In stock 117.95 |
| Timer | WE4M533 | GE Timer Schematic Location: 100 | Y | In Stock In stock 114.95 |
| Bearing | WE3M26 | GE Top Bearing Schematic Location: 313 | Y | In Stock In stock 53.95 |
| 49-90407-1 | GE Use & Care ( Ge ) Schematic Location: 1 | No | ||
| Knob, Dial, Button | WE01X20379 | GE Washing Machine Control Knob - Bisque Schematic Location: 3397 | Y | In Stock In stock 33.95 |
WE2M96 | GE We2x329 Schematic Location: 234 | Y | Ships in 12 days 12.95 | |
| Screw | WZ5X158D | GE Wz5x158d Schematic Location: 3457 | Y | In Stock In stock 34.95 |
