GTUP240EM5WW GE Replacement Parts

Manufacturer

Model Number
GTUP240EM5WW

Description

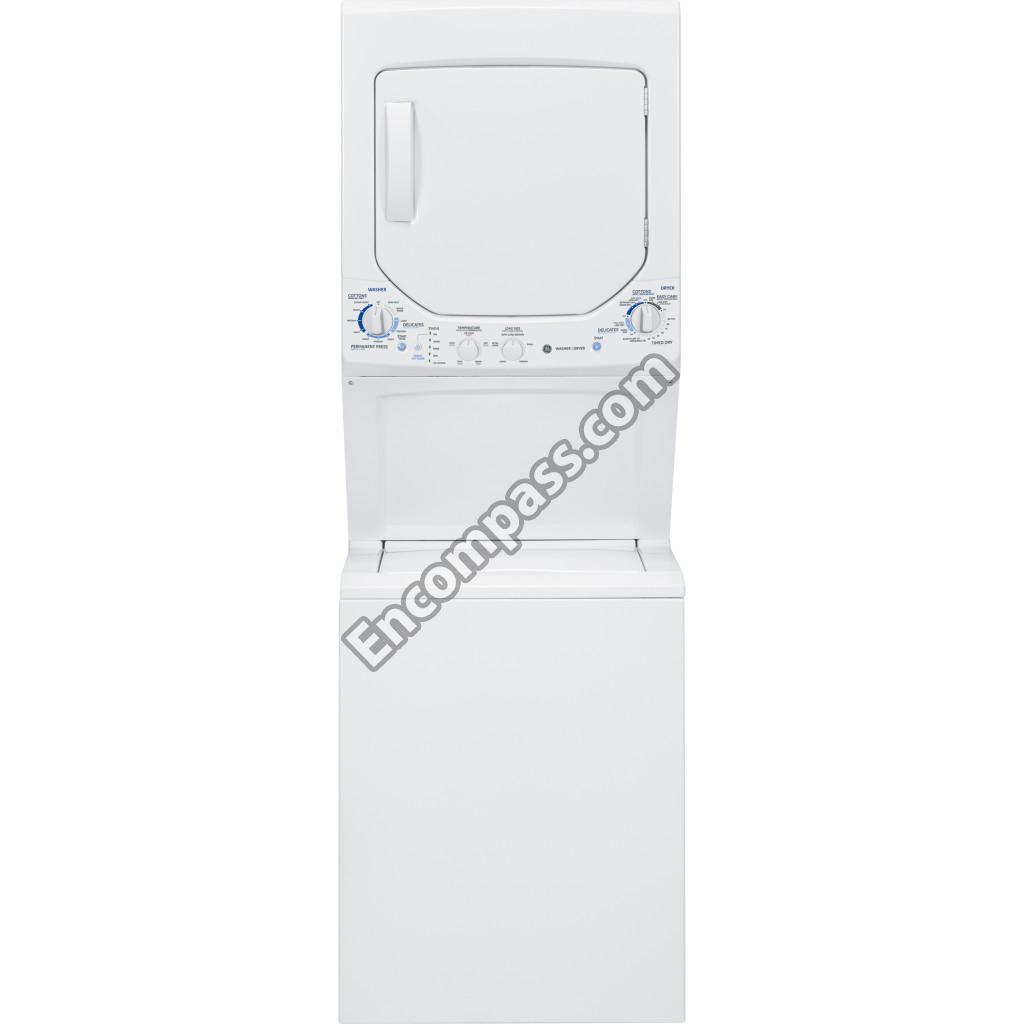

Washer/dryer Combo

Interactive Exploded View

GE
WE01X25914
Grid
Click for details

Parts List

Category	Part Number	Description	Demand	Availability
	WH01X10612	GE 1/4-20 Taptite Hwh Schematic Location: 37		Ships in 15 days 12.95
Actuator	WH43X10057	GE Actuator Lid Schematic Location: 117	Y	In Stock In stock 12.95
Agitator	WH43X10056	GE Agitator Schematic Location: 218	Y	In Stock In stock 84.95
	WE21M39	GE Baffle Schematic Location: 528	Y	In Stock In stock 25.95
Basket	WH45X10106	GE Basket Asm 27	Y	In Stock In stock 400.95
Basket	WH45X10107	GE Basket Assembly 24 Schematic Location: 216	Y	In Stock In stock 283.95
	WE03X34318	GE Bearing Slide Schematic Location: 515	Y	No
	WE03X37319	GE Bearing Slide Schematic Location: 514	Y	In Stock In stock 18.95
	WE03X37320	GE Bearing Slide Schematic Location: 515	Y	In Stock In stock 27.95
Bearing	WE03X25099	GE Bearing Top Schematic Location: 3556	Y	In Stock In stock 50.95
Belt, Pulley	WE12M51	GE Belt Drive Schematic Location: 213	Y	In Stock In stock 40.95
Belt, Pulley	WE03X29897	GE Belt Drive	Y	In Stock In stock 29.95
Exhaust	WE09X27636	GE Blower Gasket (Exhaust) Schematic Location: 501	Y	In Stock In stock 12.95
Gear, Wheel	WE16X20393	GE Blower Wheel Schematic Location: 201	Y	In Stock In stock 43.95
Circuit Board	WH12X10586	GE Board Control Asm Schematic Location: 100	Y	In Stock In stock 303.95
	WH16X10144	GE Brace Front Upper Schematic Location: 101		Ships in 15 days 66.95
	WH16X10143	GE Brace Front Upper		Ships in 15 days 78.95
Cover,Cap	WH16X10172	GE Bracket Cover Schematic Location: 109		Ships in 15 days 39.95
Bracket, Flange, Blade	WH16X10142	GE Bracket Pressure Switch		Ships in 15 days 15.95
Bracket, Flange, Blade	WH16X10153	GE Bracket Spring Schematic Location: 112		In Stock In stock 35.95
Glass Lid	WH01X10627	GE Bumper Lid Schematic Location: 121		Ships in 15 days 12.95
Bush	WH01X10625	GE Bushing Hinge Schematic Location: 114	Y	In Stock In stock 12.95
Knob, Dial, Button	WE4M524	GE Button And Clip Asm Schematic Location: 730		No
Knob, Dial, Button	WH01X10591	GE Button Selector Schematic Location: 902		No
Knob, Dial, Button	WH01X10637	GE Button Selector	Y	Ships in 15 days 47.95
Knob, Dial, Button	WE1M1014	GE Button Start Asm		Ships in 15 days 20.95
Clamp	WH01X10649	GE Clamp Schematic Location: 209		Ships in 3 days 12.95
Clamp	WH01X10598	GE Clamp Schematic Location: 251		Ships in 15 days 15.95
Clamp	WH01X10599	GE Clamp Schematic Location: 206	Y	Ships in 15 days 16.95
Clamp	WH01X10603	GE Clamp Tub Outlet Schematic Location: 210		Ships in 15 days 13.95
Capacitor	WH01X10601	GE Clip Capacitor Schematic Location: 301		Ships in 15 days 54.95
Cover,Cap	WH01X10623	GE Clip Cover Schematic Location: 113	Y	Ships in 15 days 13.95
Clip	WH01X10604	GE Clip Draining Hose Schematic Location: 211		In Stock In stock 12.95
Clip	WE2M301	GE Clip Front Panel Schematic Location: 707		Ships in 15 days 12.95
Clip	WH01X10597	GE Clip Ground Schematic Location: 107		Ships in 15 days 12.95
Clip	WH01X10592	GE Clip Hose Schematic Location: 200		Ships in 15 days 12.95
Clip	WH01X10595	GE Clip Locking Schematic Location: 104	Y	In Stock In stock 12.95
Cover,Cap	WH44X10287	GE Cover Fsd Schematic Location: 220	Y	In Stock In stock 44.95
Cover,Cap	WE1M1007	GE Cover Fuse Terminal Schematic Location: 723	Y	In Stock In stock 36.95
Cover,Cap	WE1M1009	GE Cover Fuse Terminal	Y	In Stock In stock 19.95
Cover,Cap	WE1M1000	GE Cover Harness Main Schematic Location: 735		In Stock In stock 25.95
Cover,Cap	WH44X10280	GE Cover Hose Schematic Location: 105	Y	Ships in 15 days 32.95
Cover,Cap	WH44X10283	GE Cover Top Schematic Location: 108		Ships in 15 days 127.95
Cover,Cap	WH44X10282	GE Cover Top		Ships in 15 days 121.95
Damper	WH01X10630	GE Damper Pad Schematic Location: 127		Ships in 15 days 16.95
Door,Remote Control Door	WE10M150	GE Door Asm Schematic Location: 713	Y	In Stock In stock 257.95
Door,Remote Control Door	WE10M151	GE Door Asm	Y	Ships in 30 days 314.95
Drive	WH01X20436	GE Drive 3L Schematic Location: 317	Y	In Stock In stock 25.95
Drum, Tub	WE21X28957	GE Drum Asm	Y	Ships in 30 days 259.95
Drum, Tub	WE21X28956	GE Drum Asm 24 Schematic Location: 526	Y	Ships in 15 days 129.95
Door,Remote Control Door	WE1M1011	GE Dryer Door Latch Schematic Location: 3476	Y	In Stock In stock 17.95
Switch	WE4M415	GE Dryer Door Switch Schematic Location: 380	Y	In Stock In stock 37.95
Drum, Tub	WE1M462	GE Dryer Drum Sleeve Schematic Location: 3106	Y	In Stock In stock 36.95
Pump, Motor	WE1X921	GE Dryer Motor Strap Schematic Location: 3576	Y	Ships in 15 days 44.95
Duct, Vent	WE14M189	GE Duct Exhaust Schematic Location: 510		Ships in 15 days 58.95
Duct, Vent	WE14X27556	GE Duct Exhaust	Y	Ships in 11 days 63.95
	WH01X10605	GE Elbow Over Flow Schematic Location: 2006	Y	Ships in 15 days 55.95
Circuit Board	WE19M1774	GE Enclosure Board Schematic Location: 731		Ships in 15 days 48.95
Circuit Board	WE19M1700	GE Enclosure Board		No
	WH01X10619	GE Ens. Tornillo Agitador Schematic Location: 219	Y	In Stock In stock 15.95
Duct, Vent	WE1M997	GE Felt Trap Duct Schematic Location: 520		Ships in 15 days 20.95
Fork	WH16X10147	GE Fork Support Assembly Schematic Location: 307	Y	In Stock In stock 68.95
Funnel	WH01X10621	GE Funnel Bleach Schematic Location: 110	Y	Ships in 11 days 18.95
Funnel	WH13X10051	GE Funnel Shower Head	Y	In Stock In stock 35.95
Fuse, Thermal Fuse, Breaker	WE1M1002	GE Fuse Ccmr 30 Amp 120V Schematic Location: 813	Y	In Stock In stock 56.95
Gasket , Seal	WE9M58	GE Gasket Door Schematic Location: 716	Y	In Stock In stock 55.95
Gasket , Seal	WE01X25135	GE Gasket Door	Y	Ships in 11 days 28.95
Gasket , Seal	WE9M59	GE Gasket Door Lower Schematic Location: 718	Y	In Stock In stock 48.95
Gasket , Seal	WE1M999	GE Gasket Exhaust Schematic Location: 525	Y	In Stock In stock 15.95
Filter	WE01X25914	GE Grid Schematic Location: 523		No
	WE22X35337	GE Grid Schematic Location: 523	Y	In Stock In stock 49.95
Handle	WE01X30378	GE Handle Door Schematic Location: 3506	Y	In Stock In stock 75.95
Door,Remote Control Door	WE26M360	GE Harness Door Asm Schematic Location: 805		No
Door,Remote Control Door	WE26M361	GE Harness Door Asm		Ships in 15 days 46.95
Extension	WH19X10084	GE Harness Extension Asm Schematic Location: 908		Ships in 15 days 35.95
	WH19X10085	GE Harness Main		Ships in 15 days 283.95
	WE26M364	GE Harness Main Asm Schematic Location: 800		Ships in 15 days 160.95
	WE26M367	GE Harness Main Asm		Ships in 15 days 159.95
	WH19X10087	GE Harness Pressure Schematic Location: 907		In Stock In stock 20.95
	WH49X10101	GE Harness Principal Assembly Schematic Location: 909		Ships in 15 days 124.95
Selector	WH19X10082	GE Harness Selector Schematic Location: 903		Ships in 15 days 74.95
Selector	WH19X10081	GE Harness Selector	Y	In Stock In stock 52.95
	WE26M362	GE Harness Ui Asm Schematic Location: 809	Y	Ships in 30 days 43.95
Housing	WE11M61	GE Heater And Housing Asm Schematic Location: 600	Y	In Stock In stock 188.95
Housing	WE11M62	GE Heater And Housing Asm	Y	In Stock In stock 187.95
Screw	WH01X10614	GE Hex Screw 5/16-18 Schematic Location: 38		Ships in 15 days 12.95
Screw	WH01X10616	GE Hex. Pt Screw K80 X 3.59 Schematic Location: 39	Y	In Stock In stock 12.95
Screw	WH01M10001	GE Hexscrew832trilobular Schematic Location: 30		Ships in 15 days 13.95
Hinge	WE1M1033	GE Hinge Schematic Location: 750	Y	In Stock In stock 13.95
Cover,Cap	WH44X10290	GE Hinge Washer Cover Lh Schematic Location: 122	Y	In Stock In stock 28.95
Cover,Cap	WH44X10289	GE Hinge Washer Cover Rh Schematic Location: 119	Y	Ships in 15 days 13.95
Holder	WE1M1003	GE Holder Fuse Schematic Location: 814	Y	Ships in 15 days 47.95
Pipe, Tube, Hose, Fitting	WH41X26574	GE Hose Drain Asm	Y	In Stock In stock 51.95
Pipe, Tube, Hose, Fitting	WH41X10280	GE Hose Drain Inlet Schematic Location: 250	Y	In Stock In stock 33.95
Pipe, Tube, Hose, Fitting	WH41X10300	GE Hose Pressure Schematic Location: 912		Ships in 15 days 30.95
Housing	WE14M188	GE Housing Blower Schematic Location: 500		Ships in 15 days 97.95
	WE12M50	GE Idler Arm Asm Schematic Location: 509	Y	In Stock In stock 57.95
Fork	WH16X10162	GE Kit Fork Support Asm		Ships in 15 days 174.95
Bracket, Flange, Blade	WE01X24495	GE Kit Shaft Bracket And Nu Schematic Location: 513		Ships in 15 days 21.95
Kit	WH16X10185	GE Kit Supports Assembly Schematic Location: 302	Y	In Stock In stock 175.95
Belt, Pulley	WH38X10020	GE Kit Transmission Pulley		Ships in 15 days 159.95
Duct, Vent	WE02X25500	GE Kit Trap Duct	Y	In Stock In stock 81.95
Cover,Cap	WH49X27616	GE Kit Tub Cover	Y	In Stock In stock 57.95
Knob, Dial, Button	WE4M522	GE Knob Control Asm Schematic Location: 728	Y	In Stock In stock 49.95
Knob, Dial, Button	WE4M523	GE Knob Rotatory Asm Schematic Location: 729		No
Leg, Foot, Caster	WH01X10594	GE Leg Leveling Schematic Location: 103	Y	In Stock In stock 28.95
Washer	WH44X10285	GE Lid Washer Schematic Location: 115	Y	In Stock In stock 176.95
Glass Lid	WH13X30373	GE Lid Washer	Y	In Stock In stock 57.95
Trap	WE18X20437	GE Lint Trap Assembly Schematic Location: 522	Y	In Stock In stock 50.95
Lock	WH44X10288	GE Lock Lid Schematic Location: 111	Y	In Stock In stock 67.95
Magnet	WH01X10626	GE Magnet Schematic Location: 118	Y	In Stock In stock 20.95
Pump, Motor	WH49X20495	GE Motor Schematic Location: 311	Y	In Stock In stock 181.95
Pump, Motor	WE17X22216	GE Motor Schematic Location: 503		Ships in 15 days 198.95
	WE01X0921	GE Motor Bracket Schematic Location: 204		No
Pump, Motor	WE03X27285	GE Motor Plate	Y	Ships in 30 days 35.95
Pump, Motor	WE13M39	GE Motor Support Schematic Location: 205	Y	Ships in 15 days 48.95
Nut	WH01X10618	GE Nut Hub Schematic Location: 325	Y	In Stock In stock 21.95
Belt, Pulley	WH01X10611	GE Nut Pulley Schematic Location: 309	Y	Ships in 15 days 12.95
Nut	WE02X20269	GE Nut Speed Schematic Location: 27		Ships in 15 days 12.95
Ring	WE1M461	GE O Ring Schematic Location: 3127	Y	In Stock In stock 12.95
Panel	WE20M469	GE Panel Access Schematic Location: 733		Ships in 15 days 173.95
Panel	WE20M474	GE Panel Access	Y	In Stock In stock 166.95
Panel	WE19M1710	GE Panel Control And Ht Asm		No
Panel	WE19M1697	GE Panel Ctrl & Heat Tr Asm Schematic Location: 726		No
Panel	WE20M467	GE Panel Front Schematic Location: 708		Ships in 15 days 72.95
Panel	WE20M472	GE Panel Front	Y	Ships in 15 days 181.95
Panel	WH42X10885	GE Panel Front Asm Schematic Location: 124	Y	Ships in 15 days 93.95
Panel	WH42X10886	GE Panel Front Asm	Y	In Stock In stock 167.95
Panel	WE20M470	GE Panel Side Left		Ships in 15 days 144.95
Panel	WE20M471	GE Panel Side Right		Ships in 15 days 143.95
Panel	WE20M468	GE Panel Top 24 Schematic Location: 720		Ships in 15 days 91.95
Panel	WE20M173	GE Panel Top 27		Ships in 15 days 85.95
Pin	WH01X10596	GE Pin Alignment Schematic Location: 106	Y	Ships in 15 days 12.95
Plug	WH08X10062	GE Plug Seal Schematic Location: 214		No
	31-16652	GE Pm Install Instruction Schematic Location: 1		No
	31-16656	GE Pm Mini Manual Schematic Location: 1		No
	49-90417	GE Pm Use & Care Schematic Location: 1		No
Clamp	WH16X10152	GE Press Hose Clamp Schematic Location: 223		Ships in 15 days 12.95
Switch	WH12X10530	GE Pressure Switch Schematic Location: 905	Y	In Stock In stock 70.95
Pump	WH23X10040	GE Pump Drain Schematic Location: 254	Y	In Stock In stock 117.95
Switch	WE4M416	GE Push To Start Switch Schematic Location: 808	Y	In Stock In stock 30.95
Cover,Cap	WE20X23559	GE Rear Panel & Cover Fuse		Ships in 15 days 72.95
	WH16X10148	GE Rod Assembly Front Schematic Location: 402	Y	In Stock In stock 52.95
	WH16X10149	GE Rod Assembly Rear Schematic Location: 401		No
Capacitor	WH12X10513	GE Run Capacitor Schematic Location: 300	Y	In Stock In stock 42.95
	WE4M528	GE Safety Left Tstat 24 E Schematic Location: 507	Y	In Stock In stock 43.95
	WH01X10593	GE Scr 12-14 B		Ships in 15 days 12.95
	WH01X10624	GE Scr 6-20 B Trt 3/8 S Schematic Location: 44		In Stock In stock 12.95
	WH01X10631	GE Scr 8-16 B Flp .525 S Zn Schematic Location: 43	Y	Ships in 15 days 12.95
	WE2M281	GE Scr 8-18 Ab 1/2 Schematic Location: 3442		Ships in 15 days 12.95
	WB01K10042	GE Scr 8-18 Ab Ihw 3/8 Sn Schematic Location: 29		In Stock In stock 12.95
	WE2M304	GE Scr 8-18 Ab Ovq1 2 S Zn Schematic Location: 26	Y	Ships in 15 days 12.95
	WE2M305	GE Scr 8-18 Ab Trq2 5/8 S Schematic Location: 2004	Y	Ships in 15 days 12.95
	WH01X10600	GE Scr 8-18 B Hxw 3/8 S Zn Schematic Location: 35	Y	Ships in 15 days 12.95
	WH01X10610	GE Scr 915 Twin Hel 3/4 Schematic Location: 41		In Stock In stock 12.95
Screw	WH2X1211	GE Screw Schematic Location: 46	Y	In Stock In stock 12.95
Screw	WH2X1217	GE Screw Schematic Location: 17	Y	Ships in 15 days 12.95
Screw	WH01X20231	GE Screw Schematic Location: 32		Ships in 15 days 12.95
Screw	WE1M280	GE Screw Schematic Location: 3443	Y	Ships in 15 days 12.95
Screw	WE2M223	GE Screw Schematic Location: 3446		Ships in 15 days 12.95
Screw	WE2M302	GE Screw Schematic Location: 20	Y	In Stock In stock 12.95
Screw	WR2X9260	GE Screw Schematic Location: 3466		In Stock In stock 36.95
Screw	WE2M202	GE Screw Schematic Location: 232	Y	Ships in 15 days 12.95
Screw	WD2M101	GE Screw Schematic Location: 715		Ships in 15 days 12.95
Screw	WE2M174	GE Screw # 10 Schematic Location: 502	Y	In Stock In stock 12.95
Screw	WE2M163	GE Screw #10 Schematic Location: 534	Y	In Stock In stock 12.95
Screw	WD02X10057	GE Screw 10-16X1/2 Ab Hxw S Schematic Location: 3456		In Stock In stock 12.95
Screw	WZ5X158D	GE Screw-pkg 12 Schematic Location: 3566	Y	In Stock In stock 34.95
Screw	WZ4X241D	GE Screw-pkg 12 Schematic Location: 3204	Y	In Stock In stock 31.95
Drum, Tub	WH08X24594	GE Seal Tub Schematic Location: 3516	Y	In Stock In stock 27.95
	WH01X10602	GE Seat Ball Joint Schematic Location: 400	Y	Ships in 15 days 12.95
Sensor, Thermistor, Thermostat	WL49X20360	GE Sensor Speed Schematic Location: 911	Y	In Stock In stock 45.95
Belt, Pulley	WH01X10609	GE Set Screw Pulley M. Assembly Schematic Location: 313		No
Shaft	WE00X181L	GE Shaft Schematic Location: 511		No
Bracket, Flange, Blade	WE3M33	GE Shaft And Bracket Assembly Schematic Location: 508	Y	In Stock In stock 38.95
Shield	WH01X10613	GE Shield Tub Schematic Location: 310		In Stock In stock 28.95
	WH01X28559	GE Shifter Hub	Y	In Stock In stock 16.95
Dryer	WE01X25915	GE Slide Schematic Location: 524	Y	No
Socket	WH01X10620	GE Socket Rod Support Schematic Location: 405	Y	In Stock In stock 12.95
Cover,Cap	WH01X10628	GE Spring Cover Schematic Location: 123	Y	Ships in 30 days 18.95
Spring	WH01X10606	GE Spring Shifter Schematic Location: 305	Y	In Stock In stock 12.95
Pipe, Tube, Hose, Fitting	WH41X10282	GE Stop - Drain Hose Schematic Location: 253		Ships in 15 days 12.95
Bracket, Flange, Blade	WE01X20423	GE Strain Relief Bracket Schematic Location: 3496		Ships in 15 days 12.95
Strap	WH01X20438	GE Strap Assembly 24 Schematic Location: 407	Y	In Stock In stock 17.95
	WE13X0200	GE Strap Motor Schematic Location: 203		No
Pump, Motor	WE13X200	GE Strap Motor		In Stock In stock 12.95
Door,Remote Control Door	WE1X1192	GE Strike Door	Y	In Stock In stock 12.95
	WH02X10347	GE Stud Grounding Schematic Location: 126		Ships in 15 days 12.95
Control	WE19M1696	GE Support Controls Schematic Location: 712	Y	In Stock In stock 33.95
Circuit Board	WH12X20439	GE Support Sensor Board Schematic Location: 312	Y	In Stock In stock 12.95
Circuit Board	WH12X10514	GE Support Sensor Board	Y	Ships in 15 days 12.95
	WH16X10186	GE Supports Assembly	Y	In Stock In stock 178.95
Switch	WD21X10261	GE Switch Interlock Schematic Location: 803	Y	In Stock In stock 31.95
Switch	WH12X10509	GE Switch Selector Schematic Location: 900	Y	In Stock In stock 25.95
Switch	WH12X10510	GE Switch Selector Schematic Location: 901	Y	In Stock In stock 36.95
Drum, Tub	WE4M216	GE T'stat Outlet Ctrl Schematic Location: 230	Y	In Stock In stock 79.95
Strap	WE4M325	GE Term Blk & Grnd Strap Schematic Location: 419	Y	In Stock In stock 36.95
Strap	WE4M525	GE Term Blk & Grnd Strap	Y	In Stock In stock 24.95
Sensor, Thermistor, Thermostat	WH12X10512	GE Thermistor Asm Schematic Location: 910		Ships in 15 days 41.95
Sensor, Thermistor, Thermostat	WE4M181	GE Thermostat Bias Ctr Inlt Schematic Location: 505	Y	In Stock In stock 36.95
Sensor, Thermistor, Thermostat	WE4M137	GE Thermostat Hi-limit Schematic Location: 506	Y	In Stock In stock 73.95
Timer	WE04X22654	GE Timer Schematic Location: 807	Y	In Stock In stock 75.95
Bearing	WE3M26	GE Top Bearing	Y	In Stock In stock 53.95
Belt, Pulley	WH38X10018	GE Transmission Pulley Schematic Location: 308	Y	In Stock In stock 28.95
Duct, Vent	WE14X25091	GE Trap Duct Asm 24 Schematic Location: 3546		No
Drum, Tub	WH45X10150	GE Tub 24 Schematic Location: 212	Y	Ships in 15 days 167.95
Cover,Cap	WH44X10281	GE Tub Cover Asm 24 Schematic Location: 221	Y	In Stock In stock 57.95
Valve, Float Assembly	WH13X27314	GE Valve Cw47c	Y	In Stock In stock 52.95
Clamp	WH1X2036	GE Washer Hose Clamp Kit	Y	In Stock In stock 22.95
Washer	WH01X10617	GE Washer Hub Schematic Location: 318		No
Circuit Board	WH16X20555	GE Washing Machine Board Support Schematic Location: 102	Y	Ships in 15 days 28.95
Pump, Motor	WH03X20508	GE Washing Machine Motor Grommet Schematic Location: 319	Y	Ships in 15 days 12.95
Inlet	WH13X10065	GE Water Inlet Assembly Schematic Location: 208	Y	Ships in 15 days 32.95
Valve, Float Assembly	WH13X10052	GE Water Valve		No
Screw	WE2X263D	GE We2x263d Schematic Location: 3486	Y	In Stock In stock 21.95

About GE

GE Appliances manufactures kitchen appliances, home products, parts and accessories, and more. GE Appliances is an appliance company headquartered in Louisville, Kentucky. It is owned by Haier, a Chinese conglomerate. It is one of the largest appliance brands in the United States and manufactures appliances under the brands of GE, Profile, Cafe, Monogram, and Hotpoint. GE Appliances manufactures kitchen appliances, home products, parts and accessories, and more. From self-cleaning ranges to ice and water dispensers, to speedcook ovens and refrigerators that make coffee, GE Appliances has electrified and modernized life for more than 125 years with a legacy of invention. Products include: Innovative home appliances that improve lives, appliance parts, appliance service, selling home appliances to builders, remodelers, building distributors, solutions for all home appliances needs, and specifying home appliances for designers and architects.

GTUP240EM5WW GE Washer/dryer Combo Replacement Parts

GE
WE01X25914
Grid

Parts List

About GE

GTUP240EM5WW GE Washer/dryer Combo Replacement Parts

GEWE01X25914Grid

Parts List

About GE

GE
WE01X25914
Grid
