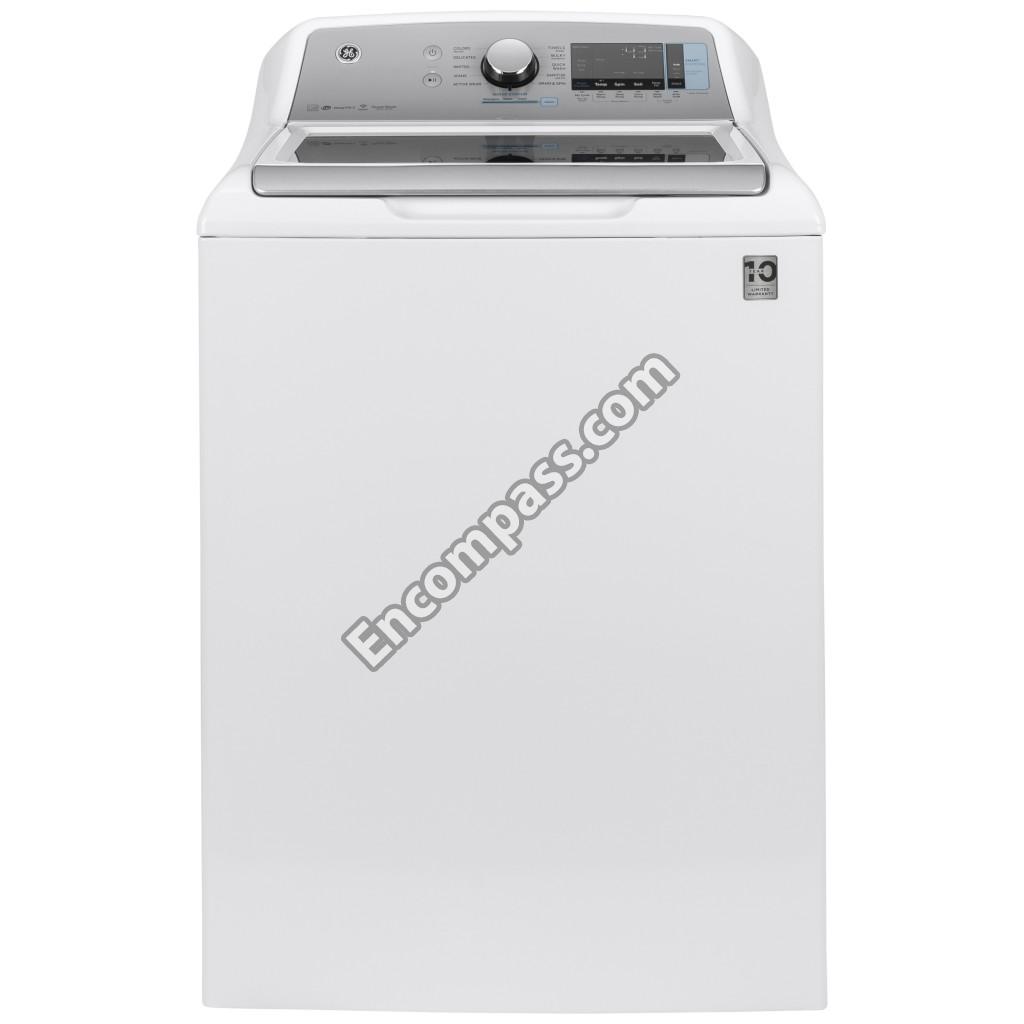

GTW840CSN1WS GE Top-loading Washer Replacement Parts
Manufacturer
Model Number
GTW840CSN1WS
Description
Top-loading Washer
Interactive Exploded View
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
WH02X24374 | GE 2A Sinuloc Scr 1/4-20 Schematic Location: 303 | Y | In Stock In stock 13.95 | |
| Foam | WH08X24099 | GE Backsplash Foam Seal Schematic Location: 11 | Ships in 15 days 19.95 | |
WH01X26970 | GE Ball Joint Upper Schematic Location: 413 | Y | In Stock In stock 45.95 | |
| Basket | WH21X29067 | GE Basket 5.2 Schematic Location: 316 | Y | Ships in 9 days 230.95 |
| Washer | WH01X26190 | GE Belleville Washer Schematic Location: 314 | Y | In Stock In stock 13.95 |
| Tank | WH42X29069 | GE Bulk Tank Aspirator Schematic Location: 390 | Y | In Stock In stock 80.95 |
| Clamp | WH01X24494 | GE Clamp Schematic Location: 824 | Y | In Stock In stock 12.95 |
| Clip | WH1X2725 | GE Clip Ant-sip Schematic Location: 826 | Y | In Stock In stock 13.95 |
| Cover,Cap | WH02X24334 | GE Clip Spring Cover Schematic Location: 328 | Y | In Stock In stock 13.95 |
| Clutch | WH03X28951 | GE Clutch Schematic Location: 326 | Y | In Stock In stock 13.95 |
| Circuit Board | WH22X29461 | GE Connected Wifi Board Schematic Location: 41 | Y | In Stock In stock 47.95 |
| Bracket, Flange, Blade | WH13X29044 | GE Connector Bracket Left Schematic Location: 102 | Ships in 15 days 13.95 | |
| Bracket, Flange, Blade | WH13X29045 | GE Connector Bracket Right Schematic Location: 103 | Ships in 15 days 13.95 | |
| Control | WH22X29062 | GE Control Panel White Schematic Location: 13 | Ships in 15 days 135.95 | |
| Cover,Cap | WH01X29420 | GE Cover Housing Schematic Location: 8 | Ships in 15 days 36.95 | |
| Cover,Cap | WH01X29419 | GE Cover Housing Schematic Location: 9 | Ships in 15 days 31.95 | |
| Cover,Cap | WH01X29418 | GE Cover Housing Schematic Location: 10 | Ships in 15 days 21.95 | |
| Cover,Cap | WH42X29424 | GE Dispenser Siphon Cap Schematic Location: 400 | Y | In Stock In stock 34.95 |
| Pump | WH08X24179 | GE Drain Pump Seal Schematic Location: 649 | Y | In Stock In stock 13.95 |
| Drawer | WH47X26798 | GE Drawer Fabric Softener Schematic Location: 401 | Y | Ships in 28 days 28.95 |
| Pipe, Tube, Hose, Fitting | WH41X32477 | GE External Drain Hose Schematic Location: 825 | Y | In Stock In stock 53.95 |
| Base | WH01X29177 | GE Foot And Base Schematic Location: 382 | Y | In Stock In stock 13.95 |
| Bezel | WH47X26777 | GE Funnel Bezel Dispense Schematic Location: 392 | Y | In Stock In stock 13.95 |
| WH01X29417 | GE Ge Badge Schematic Location: 7 | Y | Ships in 15 days 13.95 | |
| Frame | WH44X26695 | GE Glass Frame Assembly Xl Lid Schematic Location: 394 | Y | In Stock In stock 145.95 |
| Wire | WH01X24190 | GE Harness Wire Tie Schematic Location: 99 | Y | In Stock In stock 13.95 |
| Cover,Cap | WH01X30197 | GE Impeller Cap Schematic Location: 301 | Y | In Stock In stock 14.95 |
| Pipe, Tube, Hose, Fitting | WH13X28953 | GE Inner Drain Hose Mounting Panel Schematic Location: 332 | Y | Ships in 15 days 13.95 |
| Pipe, Tube, Hose, Fitting | WH41X24177 | GE Internal Drain Hose Assembly Schematic Location: 658 | Y | In Stock In stock 21.95 |
| Circuit Board | WH22X29049 | GE Inverter Board Schematic Location: 39 | Y | In Stock In stock 134.95 |
| Inverter | WH08X29048 | GE Inverter Jumper Harness Schematic Location: 38 | Ships in 15 days 13.95 | |
| WH16X24095 | GE Left Backsplash Support Schematic Location: 14 | Ships in 15 days 13.95 | ||
| Sensor, Thermistor, Thermostat | WH04X29157 | GE Level Sensor Schematic Location: 375 | Y | In Stock In stock 51.95 |
| Bezel | WH01X31057 | GE Lid Bezel Dispense Schematic Location: 396 | Y | In Stock In stock 26.95 |
| Glass Lid | WH01X24110 | GE Lid Center Bumper Schematic Location: 386 | In Stock In stock 13.95 | |
| Glass Lid | WH01X24108 | GE Lid Front Corner Bumper Schematic Location: 385 | Y | In Stock In stock 13.95 |
| Hinge | WH02X24139 | GE Lid Hinge Schematic Location: 402 | Y | In Stock In stock 45.95 |
| Screw | WH02X24140 | GE Lid Hinge Screw Schematic Location: 403 | Y | Ships in 28 days 13.95 |
| Lever | WH01X24111 | GE Lid Lever Arm Schematic Location: 387 | Y | In Stock In stock 25.95 |
| Glass Lid | WH08X32657 | GE Lid Lock And Harness Schematic Location: 395 | Y | In Stock In stock 39.95 |
| Bezel | WH01X31638 | GE Lid Lock Bezel Schematic Location: 393 | Y | Ships in 15 days 13.95 |
| Clip | WH02X24143 | GE Lid Lock Harness Clip Schematic Location: 572 | Y | In Stock In stock 13.95 |
| Lock | WH01X31637 | GE Lid Lock Striker Schematic Location: 383 | Y | In Stock In stock 13.95 |
| Circuit Board | WH22X31618 | GE Main Board 840/845 Service Schematic Location: 846 | Y | In Stock In stock 249.95 |
WH08X29066 | GE Main Harness Purple Schematic Location: 100 | Y | Ships in 15 days 70.95 | |
WH03X31937 | GE Mode Shifter Schematic Location: 325 | Y | In Stock In stock 46.95 | |
| Pump, Motor | WH03X30258 | GE Motor Rotor Schematic Location: 630 | Y | In Stock In stock 55.95 |
| Nut | WH02X10363 | GE Nut Hub Schematic Location: 315 | Y | In Stock In stock 20.95 |
| Nut | WH02X29041 | GE Nut Rotor Schematic Location: 632 | Y | Ships in 42 days 13.95 |
| Panel | WH10X28194 | GE Panel Rear Control Schematic Location: 72 | Ships in 15 days 31.95 | |
| WH01X28114 | GE Patch Impact Schematic Location: 331 | Ships in 15 days 13.95 | ||
| Kit | WH03X29581 | GE Platform Trans Assembly Kit 2019 Schematic Location: 320 | Y | Ships in 15 days 201.95 |
| Power Cord | WH08X28843 | GE Power Cord Schematic Location: 557 | Y | In Stock In stock 34.95 |
| Pump | WH23X28418 | GE Pump Drain Assembly Schematic Location: 650 | Y | In Stock In stock 44.95 |
| Plug | WH01X10217 | GE Push Mount Cable Tie Schematic Location: 104 | In Stock In stock 13.95 | |
| WH16X24096 | GE Right Backsplash Support Schematic Location: 15 | Ships in 15 days 13.95 | ||
| WH08X29137 | GE Rj45 Harness Schematic Location: 34 | Ships in 15 days 34.95 | ||
| Spring | WH03X31498 | GE Rod And Spring Assembly (5.2) Ps Schematic Location: 836 | Y | In Stock In stock 21.95 |
| WH02X24154 | GE Scr 1/4-20 Tt Hxt .485 S Schematic Location: 319 | Y | In Stock In stock 13.95 | |
| WH02X10396 | GE Scr 10-16 B Hxw 3/8 S Schematic Location: 333 | Y | In Stock In stock 13.95 | |
WH02X24116 | GE Scr 10-32 Gx 1.309 Hwx S Schematic Location: 570 | Ships in 1 days 13.95 | ||
| WE02X10107 | GE Scr 10-32 Gx Hxw 7/16 S Schematic Location: 379 | Y | In Stock In stock 13.95 | |
| WH02X24057 | GE Scr 8-16 Plastite Hxw 5/8 Schematic Location: 693 | Y | Ships in 28 days 13.95 | |
WR01X10634 | GE Scr 8-18 Ab 13/4 S Hxw Schematic Location: 250 | Y | In Stock In stock 13.95 | |
| Screw | WR01X10196 | GE Screw 8-18 Hi/lo 5/8 Schematic Location: 149 | Y | In Stock In stock 13.95 |
| Screw | WH02X10376 | GE Screw Platform Schematic Location: 324 | Y | In Stock In stock 13.95 |
| Knob, Dial, Button | WH01X28943 | GE Selector Knob Schematic Location: 19 | Y | In Stock In stock 18.95 |
| Dispenser | WH42X29070 | GE Smart Dispense Box Schematic Location: 399 | Y | In Stock In stock 60.95 |
| Sensor, Thermistor, Thermostat | WH03X29043 | GE Speed Sensor Schematic Location: 637 | Y | In Stock In stock 52.95 |
| Spring | WH01X24434 | GE Spring Clutch Schematic Location: 327 | Y | In Stock In stock 13.95 |
| Sensor, Thermistor, Thermostat | WH03X29358 | GE Stator And Speed Sensor W/harness Schematic Location: 636 | No | |
WH04X29448 | GE Thermistor Schematic Location: 381 | Y | In Stock In stock 20.95 | |
| Cover,Cap | WH44X26696 | GE Top Cover Schematic Location: 380 | Y | Ships in 15 days 84.95 |
| Cover,Cap | WH10X29068 | GE Tub Cover Schematic Location: 329 | Y | In Stock In stock 54.95 |
| WH08X29065 | GE Ui Jumper Harness Schematic Location: 37 | Ships in 15 days 16.95 | ||
| Valve, Float Assembly | WH13X26637 | GE Valve Quad Water Assembly Schematic Location: 805 | Y | In Stock In stock 62.95 |
| Washer | WH02X10364 | GE Washer Hub Schematic Location: 313 | Y | In Stock In stock 13.95 |
| Spring | WH01X29038 | GE Washer Spring Schematic Location: 323 | Y | Ships in 15 days 13.95 |
| WH08X29860 | GE Water Valve Harness Schematic Location: 806 | Y | In Stock In stock 24.95 | |
| Valve, Float Assembly | WH13X24094 | GE Water Valve Seal Schematic Location: 804 | Y | In Stock In stock 13.95 |
| WH08X29075 | GE Wifi Jumper Harness Schematic Location: 42 | Ships in 15 days 18.95 |
