740825253 Saeco Incanto De Luxe A9 A13 Sup021ybdr Replacement Parts
Parts List
| Category | Part Number | Description | Demand |
|---|---|---|---|
| 996530039639 | Saeco (0301.R04.150)spare Sleeve Unit Grey Schematic Location: 8 | ||
| Container | 996530044404 | Saeco (0701.014.150)Seal Container Grey Schematic Location: 31 | Y |
| 996530044417 | Saeco (0701.031.150)Seal Cover Grey Schematic Location: 29 | Y | |
| 996530000117 | Saeco (11000197)Protezione X Schizzi Gruppo Caffe Smart Schematic Location: 4 | ||
| 996530000291 | Saeco (11000467)Black Grinder Supp. Plate V3 Smart1 Ul 120V Schematic Location: 34 | ||
| 996530000318 | Saeco (11000514)General Motor Ass.mc/v3.1 120V 120V Schematic Location: 25 | ||
| 996530000321 | Saeco (11000516)General Motor Ass.mc/v3.1 230V Schematic Location: 25 | ||
| Connector | 996530000479 | Saeco (11000750)Tea/brass Connect.for Silicone Tube Schematic Location: 53 | |
| 996530000614 | Saeco (11001021)Matt Silver Casing Smart Schematic Location: 45 | ||
| Spring | 996530000898 | Saeco (11001556)Molla Rasatore H=49 X Gruppo Caf.smart Schematic Location: 16 | Y |
| Container | 996530000975 | Saeco (11001695)As.conten.caffe Gruppo Smart1 New Ner Schematic Location: 20 | |
| 996530001051 | Saeco (11001845)Black Power Cable Korea 3X1,25 L=1600 Schematic Location: 25 | ||

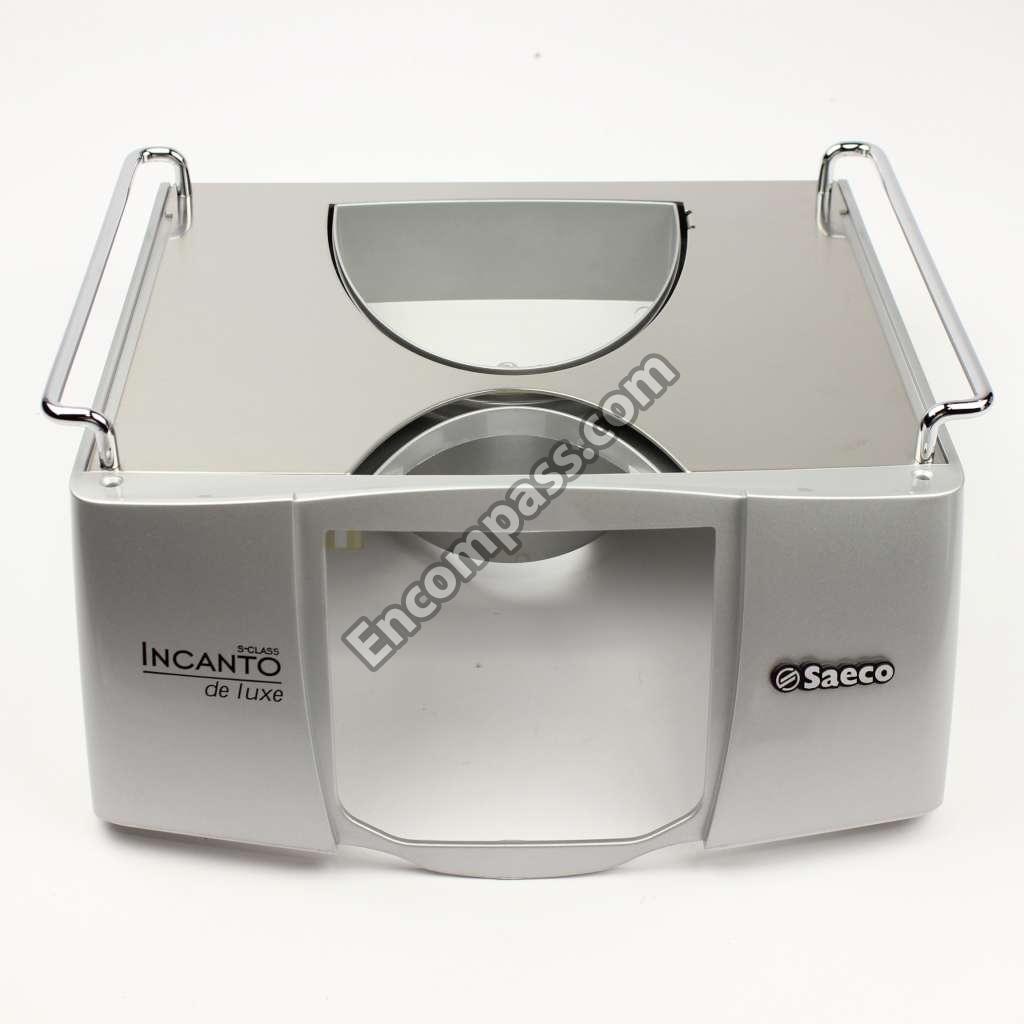

| Cover,Cap | 996530001055 | Saeco (11001860)Silver 13 Cover Smart/ul S/screen Dlx Korea Complete Schematic Location: 60 | |
| 996530001056 | Saeco (11001861)Silver 13 Cover Smart/ul S/screen Dlx Korea Schematic Location: 60 | ||
| Drum, Tub | 996530001278 | Saeco (11002322)Coff. Dispenser Tube For Adjust.shaft From S/n 9006Sa40349625 Schematic Location: 66 | |
| 996530001279 | Saeco (11002323)Conic Seal For Coffee Dispenser Tube From S/n 9006Sa40349625 Schematic Location: 110 | ||
| 996530001312 | Saeco (11002606)Boiler Support Connector Schematic Location: 25 | ||
| 996530001351 | Saeco (11002814)Electr.board Power Sup021ybdr/v1 230V Schematic Location: 48 | ||
| 996530001376 | Saeco (11002849)As.pist.c/doccia S/molla Grup.smart1 Ner Schematic Location: 30 | ||

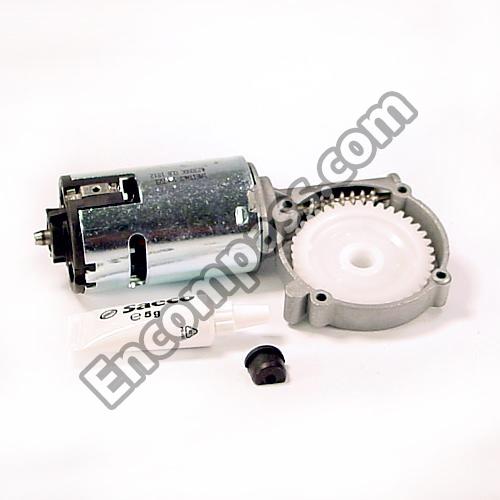

| 996530002796 | Saeco (11003037)Motor For Ratiomotor Assy. Schematic Location: 38 | Y | |
| 996530001448 | Saeco (11003075)As.cont.caf.c/bocc.sald.grup.p124 8G.ner Schematic Location: 17 | ||
| 996530001451 | Saeco (11003077)As.pistone Integrale Grup.p124 8Gr.nero Schematic Location: 21 | ||
| 996530001452 | Saeco (11003078)Biella X Gruppo P124 8Gr.nero Schematic Location: 25 | Y | |
| 996530001655 | Saeco (11003426)Black Brew Unit V3 New/sbs Smart (See Ev For Detail) Schematic Location: 27 | ||
| 996530001657 | Saeco (11003428)Contropistone X Gruppo Caff.smart Nero Schematic Location: 3 | ||
| 996530002096 | Saeco (11004161)Rasatore X Gruppo Caffe Nero Schematic Location: 26 | ||
| 996530002131 | Saeco (11004209)Support For Alluminium Boiler Smart Schematic Location: 12 | ||
| 996530002232 | Saeco (11004354)Motor Coffeegrinder/v3.1 Ime Assy. 230V From S/n 9005Sa40362332 Schematic Location: 18 | ||
| 996530002287 | Saeco (11004409)Motor Coffeegrinder/v3.1 Ime Assy. 120V Schematic Location: 18 | ||
| 996530002403 | Saeco (11004550)Bleckman Resistance Smart Assy. 230V Schematic Location: 29 | ||
| 996530002473 | Saeco (11004667)Alum.boiler With Resistance 230V-1100w Schematic Location: 24 | ||
| 996530002484 | Saeco (11004689)Tea/brass Safety Valve 16-18 Bar Assy. Schematic Location: 11 | ||
| 421946017941 | Saeco (11005044)Saeco Kluber Tribostar Sil 2 Tube 5Gr. Schematic Location: 85 | ||
| 996530002747 | Saeco (11005099)Natural Cursor V2 For Boiler P119 Schematic Location: 44 | Y | |
| 996530002844 | Saeco (11005343)Black Faucet Support V2 Smart Schematic Location: 37 | ||
| 996530002962 | Saeco (11005555)Black Dump Box Smart Silk/screen Schematic Location: 46 | ||
| 996530003228 | Saeco (11005920)Piastra Ant.gruppo Smart S/f.ner.ser.new Schematic Location: 30 | ||
| 996530003562 | Saeco (11006440)Black Grinder Support Plate V3 Smart1 230V Schematic Location: 34 | ||
| 996530004479 | Saeco (11007641)Power Board P120/v1 Dl 120V Schematic Location: 48 | ||
| Cover,Cap | 996530004488 | Saeco (11007666)As.cop.smart/nt Ul C/ap.a13/120v Ser.dlx U.s.a. Complete Schematic Location: 60 | |
| 996530005176 | Saeco (11009013)Tea/brass Pin For Piston L=10 Schematic Location: 47 | ||
| 996530005183 | Saeco (11009019)Tea/brass Piston L=20,9 Assy. Schematic Location: 41 | ||
| 996530005319 | Saeco (11009162)Doccia D=35,8 276Fori C/vite M3x20 Lucid Schematic Location: 18 | ||
| Cover,Cap | 996530005406 | Saeco (11009327)Black Boiler Cover Smart Ul Schematic Location: 42 | Y |
| 996530005414 | Saeco (11009360)Boiler Support Plate Smart Ul Assy. 120V Schematic Location: 32 | ||
| 996530005418 | Saeco (11009371)Natural Turbine Support Smart Ul Schematic Location: 22 | ||

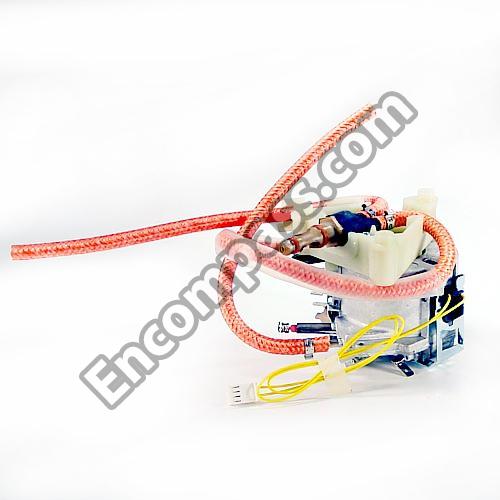

| 996530005735 | Saeco (11010353)Boiler Smart/rs V3 230V Assy. Complete Schematic Location: 64 | ||
| Drum, Tub | 996530005814 | Saeco (11010624)Transp.silicone Tube 10,5X12,3 L=200 Mm Schematic Location: 28 | |
| 996530005991 | Saeco (11011205)Tea/zama Increase Screw Grinder From S/n.9008ga40111061 Schematic Location: 1 | Y | |
| Drum, Tub | 996530070228 | Saeco (11012031)Transp.silicone Tube 10,5X12,3 L=170 Mm Schematic Location: 64 | |
| 996530007577 | Saeco (11023086)As.gen.pistone Integr.grup.caf.8gr.ner. Schematic Location: 35 | Y | |
| 996530007592 | Saeco (11023172)Mounting Plate With Pin V2 Nespr.ul Assy Korea Schematic Location: 32 | ||
| 996530068049 | Saeco (11026355)Blk Ground Coff.outlet Conveyor V4 Assy. Schematic Location: 28 | ||
| 996530007751 | Saeco (12000131)Ulka Pump Ep5/s 120V-60hz Schematic Location: 4 | Y | |
| 996530007753 | Saeco (12000140)Ulka Pump Ep5/s Gw 230V-50hz Schematic Location: 4 | Y | |
| 996530007782 | Saeco (12000182)Ulka Pump Ep5/s Gw 220V-60hz Schematic Location: 4 | ||
| 996530007801 | Saeco (12000381)Screw Tsp Pz2/tt M3x8 Uni 8109 Zinc Schematic Location: 11 | ||
| 996530007819 | Saeco (12000450)Screw Tcbr Torx 10 3,5X12 Plast.galvaniz Schematic Location: 38 | Y | |
| 996530007838 | Saeco (12000550)Vite Tcb 3X25 Plast.inox Schematic Location: 10 | Y | |
| Clamp | 996530007947 | Saeco (12000892)Oetiker Clamp D=9,5 16700004 Schematic Location: 51 | Y |
| 996530007951 | Saeco (12000895)Vite Tsp 3X10 Plast.inox Schematic Location: 12 | Y | |
| 996530007953 | Saeco (12000897)Vite Tcb 3,5X20 Plast.inox Schematic Location: 31 | Y | |
| 996530011086 | Saeco (122842121)External Cover St.steel Pannar.g100 Schematic Location: 102 | ||
| 996530011182 | Saeco (123030200)Radial Bearing 61900.2Rs1 Schematic Location: 15 | Y | |
| 996530011183 | Saeco (123030300)Axial Bearing Ekko 342.35252 Schematic Location: 58 | Y | |
| 996530011241 | Saeco (123453102)Self Lock Nut M4 Din 982 High Galv. Schematic Location: 20 | ||
| 996530011247 | Saeco (123453602)Flange Nut M8 Toothed Base Galv. Schematic Location: 39 | ||
| 996530011251 | Saeco (123453902)Self-locki.nut M5x0,8 Din 980 Cla.8 Schematic Location: 67 | ||

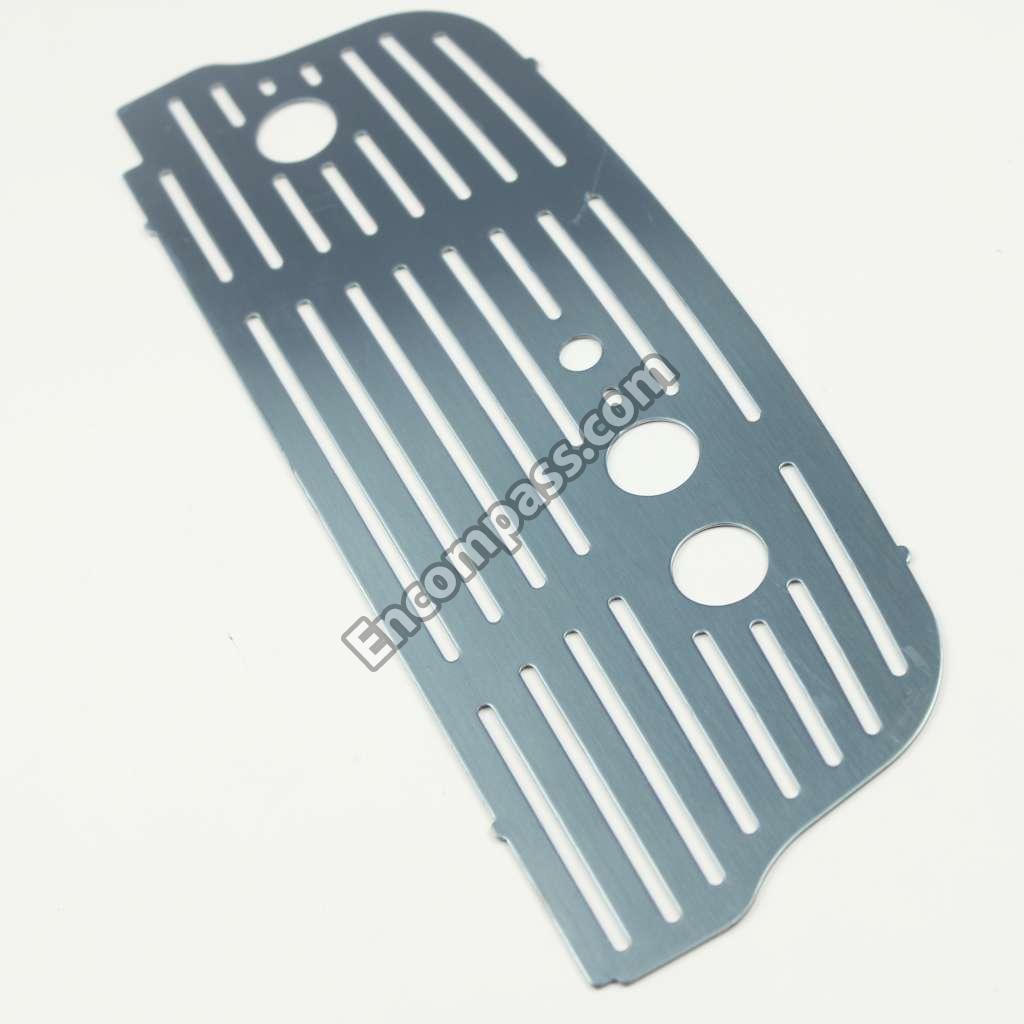

| 996530011445 | Saeco (125743421)Stainless Steel Grate Smart Schematic Location: 87 | ||
| Container | 996530011626 | Saeco (126764718)Spring For Water Container Valve Schematic Location: 8 | Y |
| 996530011705 | Saeco (126772018)Spring Di=7,5 For Fabric Finish Tub Schematic Location: 51 | ||
| 996530011711 | Saeco (126772518)Spring For Cream Adjustment Shaft Schematic Location: 41 | ||
| 996530011715 | Saeco (126772918)Spring For Adjustment Grinding Gear Schematic Location: 12 | ||
| 996530011719 | Saeco (126773318)Molla X Pistone Gruppo Smart1 Schematic Location: 23 | ||
| 996530011836 | Saeco (126838117)2 Thermostats Fixing Spring Schematic Location: 63 | ||
| 996530011837 | Saeco (126838217)Sensor Fixing Spring Schematic Location: 57 | ||
| 996530011844 | Saeco (126838818)Spring For Bean Coffee Container Schematic Location: 51 | ||
| Knob, Dial, Button | 996530011845 | Saeco (126838918)Spring For Button Bean Container Cof. Schematic Location: 54 | |
| 996530011867 | Saeco (127390100)Brush For Cleaning Schematic Location: 61 | Y | |
| 996530012028 | Saeco (127473603)Steel Pin M4-m6 For Increment Screw Up To S/n.9008ga40111060 Schematic Location: 5 | ||
| 996530012097 | Saeco (127535319)Thermal Fuse Fixing Plate Schematic Location: 31 | ||
| 996530012104 | Saeco (127535820)Plate For Door Metallic Smart Schematic Location: 65 | ||
| 996530012145 | Saeco (127573900)Plate With Logo Saeco Smart Diamond Schematic Location: 117 | ||
| 996530012339 | Saeco (128310321)Washer Uni 8842 A3 Ss Schematic Location: 34 | ||
| 996530012341 | Saeco (128310402)Galv.washer Uni 8842 A4 From S/n.9008ga40111061 Schematic Location: 21 | Y | |
| 996530012342 | Saeco (128310404)Washer Uni 8842 A4 Burnished Schematic Location: 32 | ||
| 996530012374 | Saeco (128381800)Crinkle Washer 21,8X15,8x0,2 Schematic Location: 14 | Y | |
| 996530012375 | Saeco (128381902)Galvan.flat Wash.di=4,3 De=14 Sp=1,5 Schematic Location: 29 | Y | |
| 996530012818 | Saeco (129511903)Screw Tcb 2,9X6,4 Din 7981 Bz Nick Schematic Location: 91 | ||
| 996530012821 | Saeco (129512503)Screw Tcb 2,9X9,5 Din 7981 Nick Schematic Location: 99 | ||
| 996530012884 | Saeco (129532521)Screw Tsp2,9x9,5 Din 7982 Ss Schematic Location: 14 | ||
| 996530012891 | Saeco (129533202)Screw Tsptorx T10 3,5X9,5 D7982 Ni Schematic Location: 79 | ||
| 996530012898 | Saeco (129535721)Screw Tsp3,5x9,5 Din 7982 Ss Schematic Location: 71 | ||
| 996530012903 | Saeco (129562603)Screw Tsc Pz-b 2,9X9,5 Uni 6956 Ni Schematic Location: 96 | ||
| 996530012911 | Saeco (129571121)Screw Tcb Ph/sw 3X14 Uni 8112 Inox Schematic Location: 64 | ||
| 996530012913 | Saeco (129571521)Screw Tcb Ph/sw 3X18 Uni 8112 Inox Schematic Location: 103 | ||
| 996530012921 | Saeco (129573202)Screw Tcb Torx 20 M4x8 Autof. Zn-b Schematic Location: 49 | Y | |
| 996530012923 | Saeco (129573402)Screw Tapt M4x10 Din 7985 Galv Schematic Location: 42 | ||
| 996530012928 | Saeco (129574802)Screw Tcb Torx 20 M4x30 Zn-b From S/n.9008ga40111061 Schematic Location: 6 | Y | |
| 996530012981 | Saeco (129660902)Screw Panelvit Tcb 3,5X12 D.7505 Znp Schematic Location: 67 | ||
| 996530012992 | Saeco (129661702)Screw Tcb Torx 3,5X30 Plast.zn-b Schematic Location: 30 | Y | |
| 996530012999 | Saeco (129670302)Pane.tcb Screw 2,9X9,5 Tes.d=7,5 Zn Schematic Location: 68 | ||
| 996530013034 | Saeco (129740202)Screw Tsp Ph/tt 4X10 Uni 8113 Znp Up To S/n 9005Sa40022836 Schematic Location: 91 | ||
| Roller | 996530013077 | Saeco (129823802)Tcb Screw M4x8 Uni 7687 Znp Schematic Location: 27 | |
| 996530013104 | Saeco (129852821)Vite Tsp M3x14 Uni 7688 Inox Schematic Location: 28 | ||
| 996530013118 | Saeco (129910103)Hi Lo Tc Screw 3,5X15 Rif.910189 Schematic Location: 43 | ||
| 996530013128 | Saeco (129910921)Vite Tcb 3X10 Plast.inox Schematic Location: 34 | ||
| 996530013148 | Saeco (129912521)Vite Tcbr 3,5X14 Plast.inox Schematic Location: 18 | Y | |
| 996530013153 | Saeco (129912902)Screw Tcb Torx 10 2,9X6,5 Sheet Zn-b Schematic Location: 20 | ||
| 996530013156 | Saeco (129913202)Screw Tcb Torx 10 3X8 Plast.zn-b Schematic Location: 49 | Y | |
| 996530013164 | Saeco (129913902)Screw Tcb Torx 10 3X12 Plast.zn-b Schematic Location: 15 | ||
| 996530013165 | Saeco (129914002)Screw Tcb Torx 10 3,5X16 Plast.zn-b Schematic Location: 10 | Y | |
| 996530013197 | Saeco (129932202)Round Head Screw 10.9 M5x20 Galv Schematic Location: 51 | ||
| 996530013201 | Saeco (129932502)Galvanizde Self Drilling Screw 5X30 Schematic Location: 61 | ||
| 996530013445 | Saeco (140320459)Or Metrico 0080-20 Silicon.ptfe/fda Schematic Location: 23 | Y | |
| 996530013446 | Saeco (140320461)Or Orm 0080-20 In Termoil Schematic Location: 88 | Y | |
| 996530013454 | Saeco (140320762)Or 108 In Silicone Schematic Location: 105 | Y | |
| 996530013471 | Saeco (140321961)Or 2031 In Termoil Schematic Location: 9 | Y | |
| 996530013507 | Saeco (140324362)Or Metric 0060-30 In Silicone Schematic Location: 7 | Y | |
| 996530013509 | Saeco (140324461)Or Orm 0060-20 In Termoil Schematic Location: 70 | Y | |
| 996530013546 | Saeco (140326661)Or Metric 0040-20 In Epdm Schematic Location: 40 | Y | |
| 996530013564 | Saeco (140328059)Or 2015 In Silicone Ptfe/fda Schematic Location: 13 | Y | |
| 996530013571 | Saeco (140328461)Epdm Or Metric 0190-10 Schematic Location: 6 | Y | |
| 996530013577 | Saeco (140328960)Nbr Fda Or Metric 0530-15 Schematic Location: 3 | Y | |
| 996530013579 | Saeco (140329162)Or 117 In Silicone 70 Sh Schematic Location: 73 | ||
| 996530013581 | Saeco (140329262)Or Metrico 0380-40 In Silicone Schematic Location: 4 | Y | |
| 996530013582 | Saeco (140329361)Or Metrico 0100-25 In Termoil Schematic Location: 25 | Y | |
| 996530013597 | Saeco (140360500)Felt Ring 45,4X39,4x4 Schematic Location: 26 | Y | |
| 996530013621 | Saeco (140640200)Cream Adjustment Shaft Schematic Location: 111 | Y | |
| 996530013707 | Saeco (141600750)Biella X Gruppo Smart1 Nera Schematic Location: 26 | ||
| 996530014694 | Saeco (142816500)Water Container Lid Smart Nat./grey Schematic Location: 1 | ||
| 996530015258 | Saeco (142905450)Upper Body With Coffe.ground Outlet Schematic Location: 13 | Y | |
| 996530015278 | Saeco (142990150)Contropistone Gruppo Smart1 Nero Schematic Location: 3 | ||
| 996530015539 | Saeco (144752300)Deadlock Motor Flange Smart1 Schematic Location: 23 | ||
| 996530015694 | Saeco (145501211)Red Float For Drip Tray Smart Schematic Location: 81 | ||
| 996530015823 | Saeco (145842900)Water Contain.valve Seal Gaco Dim14 Schematic Location: 30 | Y | |
| 996530015958 | Saeco (145854360)Ground Coffee Cont.seal Upper Smart1 Schematic Location: 58 | Y | |
| 996530015959 | Saeco (145854462)Ground Coffee Cont.seal Lower Smart1 Schematic Location: 36 | ||
| 996530015961 | Saeco (145854562)Coffegrind.motor Supp. Seal Smart1 Schematic Location: 24 | ||
| 996530015962 | Saeco (145854662)Cofegrind.motor Antivibr.seal Smart Schematic Location: 31 | ||
| 996530015963 | Saeco (145854760)Bean Coffee Container Seal Smart Schematic Location: 35 | ||
| 996530015966 | Saeco (145854962)Seal For Coffee Dispenser V2 Smart Schematic Location: 80 | ||
| 996530016117 | Saeco (145896949)Retaining Insert Teflon Tube Schematic Location: 83 | Y | |
| 996530016123 | Saeco (145897300)Insert Grinding Adjustm.knob Smart Schematic Location: 38 | ||
| 996530016237 | Saeco (145951600)Electric Insulating Disk D=16 Schematic Location: 59 | ||
| 996530016264 | Saeco (146002150)Coffee Grindin. Adjustment Gear Smart Schematic Location: 9 | ||
| 996530016327 | Saeco (146313740)Disenga. Lever Grey/silver Door Smart Schematic Location: 69 | Y | |
| 996530016342 | Saeco (146520100)Baked Clay Grinder 48X28 Schematic Location: 4 | Y | |
| 996530016495 | Saeco (146580950)Black Knob Water Container Lid Smar Schematic Location: 2 | Y | |
| 421944033301 | Saeco (146680850)Black Coffee Measure Smart Schematic Location: 100 | Y | |
| 996530016742 | Saeco (147472750)Pin For Deadlock Spring Smart1 Dig. Schematic Location: 50 | ||
| 996530016882 | Saeco (147623150)Black Square Adhesive Foot 5023 Schematic Location: 18 | ||
| 996530016894 | Saeco (147660562)Grey Water Valve Container Piston Schematic Location: 9 | ||
| 996530016913 | Saeco (147700200)Loading Pump Diameter 17 Mm Schematic Location: 59 | ||
| 996530017201 | Saeco (147755800)Int.casing Protection Power Cable Schematic Location: 39 | ||
| 996530017202 | Saeco (147755900)Heat.elem. Protection Bleckm. Smart Schematic Location: 33 | ||
| 996530017209 | Saeco (147756400)Protection Faucet Body Water/steam Schematic Location: 57 | Y | |
| 996530017211 | Saeco (147756562)Protect. For Folk Spring Tube D=4 Schematic Location: 53 | ||
| 996530017216 | Saeco (147757050)Steam Tube Protection Schematic Location: 104 | ||
| 996530017348 | Saeco (147920150)90Connector Pump Inlet Schematic Location: 1 | Y | |
| 996530017374 | Saeco (147922249)Connector For Articulated Joint Schematic Location: 78 | Y | |
| 996530017402 | Saeco (147990150)Rasatore X Gruppo Smart1 Nero Schematic Location: 27 | ||
| 996530017424 | Saeco (148380200)Washer Bakelizzate D=5,5 Schematic Location: 36 | Y | |
| 996530017431 | Saeco (148380800)Mylar Washer De=19 Di=12 Sp=0,2 Schematic Location: 62 | ||
| 996530017451 | Saeco (148600600)Cable Clamp V0 Magic Esp Combi Ul Schematic Location: 24 | ||
| 996530017463 | Saeco (148601650)Grommet For Power Cable Smart Schematic Location: 22 | ||
| 996530017497 | Saeco (148620900)Semisphere Seal For Articulat.joint Schematic Location: 74 | ||
| 996530017771 | Saeco (149185850)Support For Eaton Pump Schematic Location: 7 | ||
| 996530017884 | Saeco (149194618)Support Water Cont. W/o Lamp Housing Schematic Location: 12 | ||
| 996530017885 | Saeco (149194650)Support Water Cont. W/o Lamp Housing Schematic Location: 12 | ||
| 996530017887 | Saeco (149194800)Turbine Support Smart Schematic Location: 22 | ||
| 996530017945 | Saeco (149197700)Support For Alluminium Boiler Smart From S/n 9005Sa40230572 Schematic Location: 68 | ||
| 421941094152 | Saeco (149198250)Upper Grinder Support Coffeegrinder Schematic Location: 2 | Y | |
| 996530017952 | Saeco (149198350)Lower Grinder Support Coffeegrinder Schematic Location: 11 | Y | |
| 996530017958 | Saeco (149198700)Support Cream Adjustment Shaft Schematic Location: 56 | Y | |
| 996530017959 | Saeco (149198850)Supporto Tubo Teflon Gruppo Smart Ner Schematic Location: 14 | ||
| 996530017961 | Saeco (149198859)Supporto Tubo Teflon Gruppo Smart Gri Schematic Location: 12 | ||
| 996530017963 | Saeco (149199050)Sensor Support For Coff.grind.motor Schematic Location: 19 | Y | |
| 996530017975 | Saeco (149199750)Upper Gear Supp. Coffeegrinder Smart Schematic Location: 7 | ||
| 996530017976 | Saeco (149199850)Lower Gear Sup. Coffeegrinder Smart Schematic Location: 8 | ||
| 996530017983 | Saeco (149200450)Support For Articulated Joint Schematic Location: 72 | Y | |
| 996530018011 | Saeco (149202550)Switch General Support Black Smart Schematic Location: 36 | ||
| 996530018055 | Saeco (149205710)Pump Support Hole 13,2 Red Schematic Location: 5 | ||
| 996530018115 | Saeco (149213000)Transp.cap For Knobs Bean Container Schematic Location: 90 | ||
| 996530018123 | Saeco (149213450)Cap For Coffee Dispenser Tube From S/n 9006Sa40349625 Schematic Location: 109 | ||
| 996530050459 | Saeco (149214359)Black Cap For Floating Space Lav. Schematic Location: 4 | Y | |
| 996530018139 | Saeco (149214800)Cap For Worm Screw Mc/v3 Centring Schematic Location: 22 | ||
| 996530018202 | Saeco (149252850)Opening Button Bean Container Coffe Schematic Location: 53 | ||
| 996530018207 | Saeco (149253100)Touch Panel 4+3 Buttons Smart Digit Schematic Location: 115 | ||
| 996530018241 | Saeco (149261350)Tramoggia Gruppo Caffe Smart1 Nero Schematic Location: 28 | ||
| 996530018244 | Saeco (149261500)Hopper Ground Coffee Doser Smart Schematic Location: 57 | ||
| 996530018269 | Saeco (149360200)Silicone Tube 5X8 70Sr In Roll Schematic Location: 3 | ||
| Drum, Tub | 996530018278 | Saeco (149361200)Black Silicone Tube 7,5X9,3 In Roll Schematic Location: 6 | |
| Pipe, Tube, Hose, Fitting | 996530009505 | Saeco (16000380)5X8,9 Silicone Tube In Roll Schematic Location: 42 | Y |
| 996530020971 | Saeco (165897300)Instru.manual Saeco Type Sup021ybdr Schematic Location: 63 | ||
| 996530020979 | Saeco (165897327)Instru.manual Saeco Type Sup021ybdr Schematic Location: 63 | ||
| 996530021803 | Saeco (175897300)Lower Techmate Insert For Box Smart Schematic Location: 17 | ||
| 996530021817 | Saeco (175898600)Upper Techmate Insert For Box Smart1 Schematic Location: 16 | ||
| 996530022273 | Saeco (178517600)Display Box Saeco Incanto S-class Schematic Location: 21 | ||
| 996530022764 | Saeco (179990300)Band For Lifting L=1550 H=300 Mm Schematic Location: 28 | ||
| 996530022784 | Saeco (181540900)Electronic Board With Sensor Hal506 Schematic Location: 17 | Y | |
| 996530025488 | Saeco (183440800)Cable 1 Wire Silic.black Therm/fuse 229 Schematic Location: 26 | ||
| 996530025849 | Saeco (183922450)Cavo Al.usa Sjt 3C 16Awg Nero L=1500 Schematic Location: 25 | ||
| Cables, PCB Cable | 996530025861 | Saeco (183930850)Black Power Cable Ch H05+3fast.l=1500 Schematic Location: 25 | |
| Cables, PCB Cable | 996530025875 | Saeco (183940950)Black Power Cable Aust.h05+3fas.l=1500 Schematic Location: 25 | |
| Clamp | 996530025907 | Saeco (184320200)Spring Hose Clamp D=9,5mm Schematic Location: 2 | Y |
| Filter | 996530025944 | Saeco (184651100)Antidisturb Filter 0,47X2+1000y2+0,5l 230V Schematic Location: 16 | |
| Filter | 996530025948 | Saeco (184651500)Filtro Antidist.16a F.nc.16.10.474.472.a 120V Schematic Location: 16 | |
| 996530026182 | Saeco (186400903)Flat Tabs 6,3 210380440 Schematic Location: 95 | ||
| 996530026332 | Saeco (186723800)Microswitch Saia X3m502k2kam92as Schematic Location: 48 | ||
| 996530026336 | Saeco (186724200)Microswitch Saia X3m502k2kaj32av Schematic Location: 40 | ||
| 996530026954 | Saeco (189428200)Thermostat 175 1Nt-08l-3794 Schematic Location: 60 | Y | |
| 996530026955 | Saeco (189428300)Thermostat 175 Intercontr.161471002 Schematic Location: 30 | ||
| 996530026958 | Saeco (189428600)Thermostat 175 1Nt-08l-5125 Up To S/n. 9008Ga40129106 Schematic Location: 60 | Y | |
| 996530027006 | Saeco (192200300)20X2 Lcd White Display Fstn Schematic Location: 86 | ||
| 996530009728 | Saeco (20000202)Spares Kit Motor Coffeegrind./v3 230V Up To S/n 9005Sa40362331 Schematic Location: 33 | ||
| 996530009731 | Saeco (20000204)Spares Kit Support Boiler Smart Up To S/n 9005Sa40230571 Schematic Location: 68 | ||
| 996530009748 | Saeco (20000230)Kit Spares For Sensor Mc/v3 Smart Up To S/n 9005Sa90357734 Schematic Location: 17 | ||
| 996530009825 | Saeco (20000440)Gruppo Ricambio Manicotto Nero Schematic Location: 8 | ||
| 996530009924 | Saeco (20000960)Spares Kit For Cof. Dispenser Tube New Up To S/n 9006Sa40349624 Schematic Location: 119 | ||
| 996530068486 | Saeco (20007014)Kit As.rub.vap.smart Complete Schematic Location: 61 | Y | |
| CA6702/00 | Saeco (21001406)Acc Sae Mavea Uni.wat.filterx1 Usa Schematic Location: 25 | ||
| 996530027069 | Saeco (220380259)Rotating Ring Smart With 3 Feet With Part. #92 Schematic Location: 93 | ||
| 996530027142 | Saeco (222270249)Upper Tube Ass.for Pannarello Schematic Location: 106 | Y | |
| 996530027372 | Saeco (222360450)Casing With Knob Smart Black Schematic Location: 45 | ||
| 996530027989 | Saeco (222630526)Door Hinge Smart Silver A13 From S/n 9005Sa40022837 Schematic Location: 42 | ||
| 996530027992 | Saeco (222630550)Door Hinge Smart Black From S/n 9005Sa40022837 Schematic Location: 42 | ||
| 996530028343 | Saeco (222802340)Cup Warming Lid Smart Stainsteel-sb Schematic Location: 112 | ||
| 996530028344 | Saeco (222802400)Ground Cof.cont.lid Classic Natgrey Schematic Location: 55 | ||
| 996530028431 | Saeco (222813826)Silver 13 Cover Smart Silk/screen Dlx Schematic Location: 60 | ||
| 996530028432 | Saeco (222813850)Black Cover Smart Silk/screen Deluxe Schematic Location: 60 | ||
| 996530028917 | Saeco (222847926)Silver 13 Cover Smart Silk/screen Dlx Complete Schematic Location: 60 | ||
| 996530028918 | Saeco (222847950)Black Cover Smart Sil/screen Deluxe Complete Schematic Location: 60 | ||
| 996530029074 | Saeco (223701026)Silver/a13 Coffee Dispenser As.smart Schematic Location: 77 | ||
| 996530029076 | Saeco (223701050)Black Coffee Dispenser As.smart Schematic Location: 77 | ||
| 996530029115 | Saeco (224640200)External Filter For Water Container Assy With Part.#10 Schematic Location: 3 | Y | |
| 996530029338 | Saeco (224890626)Silver A13 Front.panel Smart Deluxe As. Schematic Location: 114 | ||
| 996530029339 | Saeco (224890650)Black Front.panel Smart Deluxe Assy. Schematic Location: 114 | ||
| 996530029537 | Saeco (225920108)Hangrip Dx Smart Chromed Schematic Location: 44 | ||
| 996530029541 | Saeco (225920141)Hangrip Sx Smart Silver Schematic Location: 19 | ||
| 996530029545 | Saeco (225920208)Hangrip Sx Smart Chromed Schematic Location: 19 | ||
| 996530029548 | Saeco (225920241)Silver Left Handgrip Smart Schematic Location: 44 | ||
| 996530029609 | Saeco (226000300)Gear Sx Z=38 For Grinder Motion Assy. Schematic Location: 16 | Y | |
| 996530029763 | Saeco (226481426)Door Hinge Kit Smart Silver A13 Up To S/n 9005Sa40022836 Schematic Location: 42 | Y | |
| 996530029765 | Saeco (226481450)Door Hinge Kit Smart Black Up To S/n 9005Sa40022836 Schematic Location: 42 | Y | |
| 996530030009 | Saeco (227470150)Pin Black Ass.for Percolator Schematic Location: 1 | Y | |
| 996530030081 | Saeco (227532950)Piastra Ant.gruppo Smart S/foro Ner.ser Schematic Location: 13 | ||
| 996530030083 | Saeco (227533000)Assembly Boiler Support Plate Smart 230V Schematic Location: 32 | ||
| 996530030135 | Saeco (227660950)As.pistone C/ins.m3 X Gruppo Smart1 Nero Schematic Location: 22 | ||
| 996530030141 | Saeco (227680150)As.pist.c/doccia C/molla Grup.smart1 Ner Schematic Location: 31 | ||
| 996530030161 | Saeco (227701104)Cream Adjustm.knob Gloss Chr.plated Schematic Location: 84 | ||
| 996530030181 | Saeco (227710904)Steam Knob Zamas Chrom.plated Smart Schematic Location: 56 | ||
| 996530030221 | Saeco (227721800)Grind.adjust.natgrey Knob Smart S/s Schematic Location: 26 | ||
| 996530030243 | Saeco (227751808)Cups Protection Smart/dig.chromed Schematic Location: 113 | ||
| 996530030325 | Saeco (227874900)Connector As.teflon 2X4 L=250 Mm Schematic Location: 28 | ||
| 996530030331 | Saeco (227875400)Connector As.teflon 2X4 L=330 Mm Schematic Location: 65 | Y | |
| 996530030346 | Saeco (227876800)Connector As.teflon 2X4 L=235 Mm Schematic Location: 64 | ||
| 996530030373 | Saeco (227900303)Brass/nik.connec.for Boiler Support Schematic Location: 66 | ||
| Connector | 996530030413 | Saeco (227961303)Straight Connector Schematic Location: 39 | |
| 996530030647 | Saeco (228660204)Connector For Steam Tube Schematic Location: 89 | ||
| 996530030649 | Saeco (228660304)Connector For Steam Tube Schematic Location: 108 | ||
| 996530031032 | Saeco (228982950)Door Metall Smart Black Schematic Location: 75 | ||
| 996530031166 | Saeco (229141008)Button Smart Deluxe Chromium Plated Schematic Location: 116 | ||
| 996530031213 | Saeco (229170450)Sealing Support As.water Drip Tray Schematic Location: 23 | Y | |
| Card | 996530031237 | Saeco (229171626)Support Elec.card As.021ybdr Silver Schematic Location: 94 | |
| Card | 996530031238 | Saeco (229171650)Support Elect.card As.021ybdr Black Schematic Location: 94 | |
| 996530031285 | Saeco (229183126)Support Door Metal.smart Silver A13 Schematic Location: 98 | ||
| 996530031287 | Saeco (229183150)Support Door Metallic Smart Black Schematic Location: 98 | ||
| 996530031298 | Saeco (229183526)Sup.hinge Door Metal.smart Silv.a13 Schematic Location: 97 | ||
| 996530031301 | Saeco (229183550)Suppor.hinge Door Metal.smart Black Schematic Location: 97 | ||
| 996530031308 | Saeco (229183726)Silver A13 Support Grate Metal Smart Schematic Location: 37 | Y | |
| 996530031311 | Saeco (229183750)Black Support Grate Metal Smart Schematic Location: 37 | ||
| 996530031331 | Saeco (229184704)Coffee Dispenser Support With Hole Schematic Location: 76 | ||
| Knob, Dial, Button | 996530031366 | Saeco (229200250)Black Cap For Knob Cream Adjustment Schematic Location: 101 | |
| 996530031903 | Saeco (229452100)Compensation Andsafety Valve16bar Assy Schematic Location: 11 | Y | |
| 996530031906 | Saeco (229452400)As.gen.valv.saeco Brewing System Smart Schematic Location: 11 | Y | |
| 996530031986 | Saeco (229630826)Silver A13 Drip Tray Smart Schematic Location: 47 | ||
| 996530031988 | Saeco (229630850)Black Drip Tray Smart Schematic Location: 47 | ||
| 996530032166 | Saeco (281565158)Elect.board Cpu Smart Sup021ybdr Assy. With Part.#115 Schematic Location: 48 | ||
| 996530032516 | Saeco (282058855)Alu.boiler With Resistance 120V -1100W Schematic Location: 69 | Y | |
| 996530032517 | Saeco (282058858)Alum.boiler With Resistance 230V -1100W Schematic Location: 69 | ||
| 996530033158 | Saeco (282135558)Alum.boiler 230V As.with Resistance Complete Schematic Location: 70 | ||
| 996530033541 | Saeco (283551300)3Pole Connect.as.turbine Jp18 Smart Schematic Location: 15 | ||
| 996530033551 | Saeco (283551900)2 Pole Level Sensor As.smart 230V Schematic Location: 13 | ||
| 996530033552 | Saeco (283551955)2 Pole Level Sensor As.smart 120V -220V Schematic Location: 13 | ||
| 996530034064 | Saeco (286473300)Vde Turbine With Sens Schematic Location: 20 | Y | |
| 996530035005 | Saeco (288140455)As.resis.bleckman 30176 Filet. 120V-1000w Schematic Location: 29 | Y | |
| 996530035006 | Saeco (288140458)Heating-element Bleckman Assy. 230V-1000w Schematic Location: 29 | ||
| 996530035133 | Saeco (288582300)Sensor Elect.board With Connect. Assy. Schematic Location: 40 | Y | |
| 996530035375 | Saeco (289201000)As.termpr.termico 120C Cav.125/365 120V Schematic Location: 8 | ||
| 996530039604 | Saeco (301.961)Water Hardness Test Schematic Location: 121 | Y | |
| 996530040198 | Saeco (311.807)Yellow Harness Klixon Jp 13 230V Schematic Location: 8 | ||
| 996530036567 | Saeco (4301018000)Lower Internal Pipe Schematic Location: 107 | ||
| 996530048841 | Saeco (9011.1)Peg For Valve In Plastic Schematic Location: 14 | Y | |
| Pedestal | 996530048874 | Saeco (9011.132)Spring For Pin Schematic Location: 55 | |
| 996530048885 | Saeco (9011.144)Fork For Tube D.4 Schematic Location: 12 | Y | |
| 996530049894 | Saeco (9121.042)Gear Z.12/90 Schematic Location: 45 | Y | |
| Motor,Ice Maker Motor | 996530049896 | Saeco (9121.044)Antivibration For Motor Schematic Location: 37 | |
| 996530067411 | Saeco (9121.046)Sintered Bush For Motor Schematic Location: 35 | ||
| 996530049928 | Saeco (9121.069.150)Gear Z=108 For Mounting Plate M4000 Schematic Location: 46 | Y | |
| 996530050195 | Saeco (9141.001)Brass Ncrement Screw Mc Up To S/n.9008ga40111060 Schematic Location: 1 | ||
| 996530009809 | Saeco (9160.075)Percolator De=35,8 Elfo Assy. Schematic Location: 15 | ||
| 996530050426 | Saeco (9161.018)Bracket For Turbine Schematic Location: 19 | ||
| 996530050455 | Saeco (9161.046)Molla X Rasatore Gruppo Schematic Location: 27 | Y | |
| 996530050488 | Saeco (9161.064.050)Manicotto Entrata Acqua Grup.caff.nero Schematic Location: 6 | ||
| 996530070057 | Saeco (9161.066.050)Albero A Gomito X Gruppo Nero Schematic Location: 20 | ||
| 996530050539 | Saeco (9161.094.050)Blocchetto Forato Grup.caffe Pa/nero Schematic Location: 19 | ||
| 996530050556 | Saeco (9161.112.150)Level Float Grey Schematic Location: 5 | Y | |
| 996530050569 | Saeco (9161.132)Mylar Washer For Ratiomotor Schematic Location: 56 | Y | |
| 996530050596 | Saeco (9161.167)Doccia D.35,8 Schematic Location: 29 | ||
| 996530050618 | Saeco (9161.191)Boccola Pistone Grup.caff.m5000 Neutro Schematic Location: 23 | ||
| 996530050627 | Saeco (9161.198)Molla Pistone Gruppo Caffe M5000 Schematic Location: 22 | ||
| 996530069876 | Saeco (9161.206)Insulating Spacer For Boiler Schematic Location: 62 | ||
| 996530050777 | Saeco (9161.331.920)Ratiomotor Cover Transparent Schematic Location: 21 | ||
| 996530050779 | Saeco (9161.332.050)Ext.covering Black Pump Space Schematic Location: 50 | ||
| 996530050781 | Saeco (9161.333.050)Boiler Black Cover Schematic Location: 42 | ||
| 996530050792 | Saeco (9161.345.050)Int.covering Black Pump Space Schematic Location: 41 | ||
| 421941065032 | Saeco (9161.373.050)Piastrina Aggancio Grup.caf.smart Nero Schematic Location: 5 | ||
| 996530050829 | Saeco (9161.374.050)Piastra Fiss.tramog.grup.caf.smart Nero Schematic Location: 32 | ||
| 421940813231 | Saeco (9161.375.050)Piastra Posteriore Gruppo Smart Nero Schematic Location: 9 | ||
| 996530070059 | Saeco (9161.378)Molla Tramoggia Gruppo Caffe Smart Schematic Location: 29 | ||
| 996530051817 | Saeco (9991.096)Adhesive Foot 8X15x3,2 Schematic Location: 92 | ||
| 996530057354 | Saeco (Js01.019)silic. Tube Fabric Finish 3X7 In Roll Schematic Location: 49 | ||
| 996530057357 | Saeco (Js01.022)silicone Tube 5X10 60 Shore In Roll Schematic Location: 18 | ||
| 996530058796 | Saeco (Ne01.120)cable Schuko Grey H05 Schematic Location: 25 | ||
| 996530058836 | Saeco (Ne03.038)bipolar Switch Fusit C1250ar From S/n. 9003Roy0465195 X 230V Schematic Location: 32 | ||
| 996530058869 | Saeco (Ne05.038)microswitch Schematic Location: 34 | ||
| Clip | 996530059178 | Saeco (Nf11.052)oetiker Clip Schematic Location: 45 | Y |
| 996530059399 | Saeco (Nm01.035)or Orm 0090-20 Silicone Schematic Location: 70 | Y | |
| 996530059406 | Saeco (Nm01.044)or Orm 0320-40 In Silicone Ptfe/fda Schematic Location: 13 | Y | |
| 996530059419 | Saeco (Nm01.057)or Orm 0050-20 Silicone Schematic Location: 52 | Y | |
| 996530059439 | Saeco (Nm02.006)or R5 Termoil Schematic Location: 2 | Y | |
| 996530059441 | Saeco (Nm02.007)or 2025 Termoil Schematic Location: 7 | Y | |
| 996530059451 | Saeco (Nm02.018)or Orm 0090-25 Termoil Schematic Location: 24 | Y | |
| 996530059461 | Saeco (Nm02.028)or 2015 Epdm Fda Schematic Location: 9 | Y | |
| 996530061853 | Saeco (U044.020)srew Tsp M5,0x30 Uni 7688 Galv. Up To S/n 9005Sa40230571 Schematic Location: 61 | ||
| 996530061862 | Saeco (U046.003)screw Tcbc M4,0x12 Indent. Wash.8 Schematic Location: 52 | ||
| 996530061882 | Saeco (U109.006)screw Aut.tcb 2,2X9,5 Din 7981 C Nik Schematic Location: 120 | ||
| 996530061885 | Saeco (U109.013)vite Aut.tcb 3,5X13 Din 7981 C Nik Schematic Location: 15 | ||
| 996530061898 | Saeco (U109.026)ss.screw Aut.tcb 3,5X19 Din 7981 C Schematic Location: 14 | ||
| 996530061899 | Saeco (U109.027)screw Tcb Torx 10 2,9X19 Sheet Ss Schematic Location: 33 | ||
| 996530061901 | Saeco (U109.028)vite Aut.tcb 2,9X9,5 Din 7981 C Inox Schematic Location: 19 | ||
| 996530061988 | Saeco (U142.005)panelvit Tsp 4,5X16 Din 7505 A Gal Schematic Location: 27 | ||
| 996530062007 | Saeco (U143.018)screw Torx Tcb 3,5X16 F Tip Bl Schematic Location: 43 | ||
| 996530062033 | Saeco (U207.003)plain Washer 3,2X7 Uni 6592 Gal Schematic Location: 33 | ||
| 996530070152 | Saeco (U302.003)nut Hexagonal M4 Uni 5588 Schematic Location: 54 | ||
| 996530062077 | Saeco (U310.003)nut Self Lock.m5 Uni 7473 Schematic Location: 58 |
