HD8854/16 Saeco Saeco Exprelia Automatic Espresso Machine Class Black Replacement Parts
Model Number
HD8854/16
Description
Saeco Exprelia Automatic Espresso Machine Class Black
Parts List
Category | Part Number | Description | Demand |
---|---|---|---|
996530007477 | Saeco 2Poles Connector Coffee Pump Mds Ul Schematic Location: 14 | ||
996530007481 | Saeco 2Poles Connector Steam Pump Mds Ul Schematic Location: 08 | ||
Cables, PCB Cable | 996530007589 | Saeco 40Poles Flat Cable Boards Link Mds Ul Schematic Location: 35 | Y |
996530073402 | Saeco 5Poles Connector Mc Sensors V2 Mds Ul Schematic Location: 18 | ||
Pipe, Tube, Hose, Fitting | 996530009505 | Saeco 5X8,9 Silicone Tube Schematic Location: 26 | Y |
996530007494 | Saeco 6Poles Connector Flowmeter Mds Ul Schematic Location: 19 | Y | |
Connector | 996530006314![]() | Saeco 90 Inlet Connector For Pump Ulka Mf Schematic Location: 09 | |
996530017348 | Saeco 90 Inlet Pump Connector Schematic Location: 12 | Y | |
CA6702/00 | Saeco Acc Psa Brita Water Filter 1Unit Schematic Location: 05 | ||
996530067434 | Saeco Adhes.silver Plate Logo Philips Schematic Location: 14 | ||
996530006054 | Saeco Adhes.silver Plate Logo Saeco P0057 Schematic Location: 08 | ||
996530013597 | Saeco Anello De=45,4 Di=39,4h=4 In Feltro Schematic Location: 07 | Y | |
Motor,Ice Maker Motor | 996530049896 | Saeco Antivibration For Motor Schematic Location: 22 | |
996530009633 | Saeco As.conn.2p.motore Mc Mds Ul Schematic Location: 22 | ||
996530068049 | Saeco As.convogl.uscita Caf.mac.v4 Smart1 Ner. Schematic Location: 09 | ||
996530001522 | Saeco As.cpu+sw Water Level Sensor V2 From S/n Tu901235137010 Schematic Location: 24 | Y | |
996530067517 | Saeco As.gen.motore Mc Mds | ||
996530069907 | Saeco As.gen.motore Mc Mds | Y | |
996530029609 | Saeco As.ingr.sx Z=38 Movim.macina C/calamita Schematic Location: 12 | Y | |
421941305001 | Saeco As.motore Mc V3.1 Mod=1,25 Sx | Y | |
996530000317 | Saeco As.motore Mc V3.1 Mod=1,25 Sx Schematic Location: 21 | Y | |
996530007602 | Saeco As.supp.scheda Caraf.v4 Myb9 Ner. Schematic Location: 49 | ||
996530017424 | Saeco Bakelizzate Washer D=5,5 Schematic Location: 25 | Y | |
996530059836 | Saeco Band D=11/11,6 Schematic Location: 12 | ||
996530008404 | Saeco Band For Lifting L=1800mm H=300mm Schematic Location: 08 | ||
996530026185 | Saeco Bent Tabs 6,3 D=3,3 <=90 4001851000 Schematic Location: 43 | ||
996530058836 | Saeco Bipolar Switch Fusit C1250ar Schematic Location: 04 | ||
996530007558 | Saeco Black Bean Container Door Mds/p Up To S/n Tu901231130583 See Position 38 | ||
996530006317 | Saeco Black Blowdown Valve Support Myb9 Schematic Location: 34 | ||
421944037611 | Saeco Black Brew Unit 8Gr.sbs Myb9 Schematic Location: 32 | Y | |
421941065032 | Saeco Black Brew Unit Coupling Plate Smart Schematic Location: 15 | ||
996530050539 | Saeco Black Brew Unit Drilled Block Schematic Location: 13 | ||
996530050492 | Saeco Black Brew Unit Elbow Shaft M5000 Schematic Location: 14 | ||
996530003228 | Saeco Black Brew Unit Front Plate S/scr.smart Schematic Location: 28 | ||
421940813231 | Saeco Black Brew Unit Rear Plate Smart Schematic Location: 10 | ||
996530007042 | Saeco Black Button For Door Release Myb9 Schematic Location: 24 | ||
996530007393 | Saeco Black Cam For Carafe Levers V2 Myb9 Schematic Location: 25 | ||
996530001932 | Saeco Black Cap V2 For Pin Boiler P119 Schematic Location: 03 | ||
996530067508 | Saeco Black Cappuccino Button S/scr.mds Up To S/n Tu901231130583 Schematic Location: 39 | ||
996530009555 | Saeco Black Carafe Micro Insert V2 Myb9 Schematic Location: 51 | ||
996530006463 | Saeco Black Carafe Milk Dispenser Tube Myb9 Schematic Location: 05 | ||
Board | 996530006745 | Saeco Black Caraffe Board Cover Myb9 Schematic Location: 53 | |
Knob, Dial, Button | 996530067502 | Saeco Black Clean Button S/scr.mds Up To S/n Tu901231130583 Schematic Location: 40 | |
Knob, Dial, Button | 996530067492 | Saeco Black Coffee Button S/scr.mds Up To S/n Tu901231130583 Schematic Location: 36 | |
996530001448 | Saeco Black Coffee Container Brew Unit P124 Schematic Location: 26 | ||
996530006575 | Saeco Black Coffee Dispenser Connector Myb9 Schematic Location: 20 | Y | |
421944043111 | Saeco Black Coffee Dispenser Tube Myb9 Schematic Location: 16 | Y | |
421944033301 | Saeco Black Coffee Measure Smart Schematic Location: 02 | Y | |
996530073075 | Saeco Black Coffee Unit Drip Tray V2 Mds Schematic Location: 34 | ||
996530007572 | Saeco Black Components Support Mds Schematic Location: 01 | ||
996530001452 | Saeco Black Connecting Rod Brew Unit 8Gr. Schematic Location: 27 | Y | |
996530001046 | Saeco Black Counter Piston Brew Unit 8Gr.p124 Schematic Location: 04 | ||
Knob, Dial, Button | 996530007043 | Saeco Black Cover Button For Door Release Myb9 Schematic Location: 25 | |
996530067474 | Saeco Black Cover Casing V2 Mds Schematic Location: 20 | Y | |
Duct, Vent | 996530067464 | Saeco Black Cover Conducting Seal Mds Schematic Location: 10 | |
996530015064 | Saeco Black Cover For Boiler Vain P119 Schematic Location: 30 | ||
996530068009 | Saeco Black Cover Mounting Plate Mds Schematic Location: 28 | ||
996530006743 | Saeco Black Cream Adjustment Knob Ring Myb9 Schematic Location: 10 | ||
996530007563 | Saeco Black Diffuser Valve Support Mds Schematic Location: 38 | ||
421944002701 | Saeco Black Dispenser Coff.inlet Connect.myb9 Schematic Location: 19 | Y | |
996530007527 | Saeco Black Display Support Mds Schematic Location: 16 | ||
996530007564 | Saeco Black Door Tubes Coupling Connector Mds Schematic Location: 40 | ||
996530007565 | Saeco Black Door Tubes Coupling Protection Mds Schematic Location: 44 | ||
996530073349 | Saeco Black Door Upper Hinge Cover Mds Schematic Location: 53 | ||
996530007545 | Saeco Black Drip Tray Cover Mds Schematic Location: 21 | Y | |
996530067463 | Saeco Black Drip Tray Mds/p Assy. | Y | |
996530070524 | Saeco Black Drip Tray Support V2 Mds Schematic Location: 05 | Y | |
996530073497 | Saeco Black Dump Box Mds Assy. Schematic Location: 32 | Y | |
996530067484 | Saeco Black Espresso Button S/scr.mds Up To S/n Tu901231130583 Schematic Location: 35 | ||
Connector | 996530007561 | Saeco Black Ev Connector Insert Mds Schematic Location: 41 | |
Connector | 996530006857 | Saeco Black Ev Connector Insert Myb9 Schematic Location: 43 | |
Connector | 996530006858 | Saeco Black Ev Connector Seal Myb9 Schematic Location: 42 | |
996530007539 | Saeco Black Ext.mobile Part Cof.dispenser Mds Schematic Location: 06 | ||
996530067469 | Saeco Black Flat-cable Cover Mds Schematic Location: 31 | ||
996530006864 | Saeco Black Flat-cable Protection Myb9 Schematic Location: 36 | ||
996530007629 | Saeco Black Frontal Panel Insert Mds Schematic Location: 02 | ||
996530066732 | Saeco Black Grate Seal V3 Myb9/h-p Schematic Location: 20 | Y | |
996530007508 | Saeco Black Grind.adjustment Knob Mds Schematic Location: 17 | Y | |
996530007507 | Saeco Black Ground Coffee Hopper Plate Mds Schematic Location: 21 | ||
996530067448 | Saeco Black Ground Container Door S/scr.mds/p Up To S/n Tu901231130583 | ||
996530018241 | Saeco Black Hopper Doser Brew Unit Smart1 Schematic Location: 16 | Y | |
996530007567 | Saeco Black Horizontal Mounting Plate Mds Schematic Location: 22 | ||

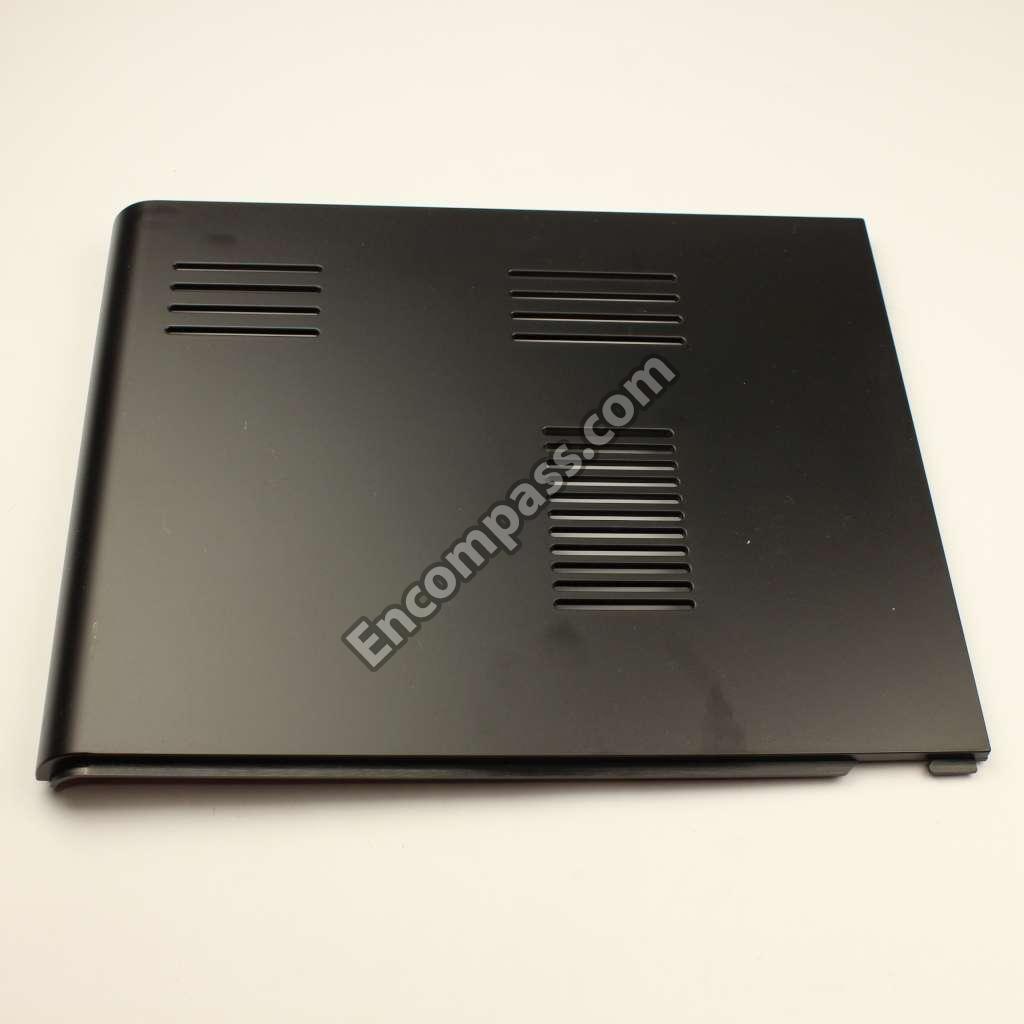

Pan | 996530007511 | Saeco Black Left Side Panel Mds/p Up To S/n Tu901231130583 | |
996530067459 | Saeco Black Lever For Carafe Cam V3 Myb9 Schematic Location: 27 | ||
996530067526 | Saeco Black Long Coffee Button S/scr.mds Up To S/n Tu901231130583 Schematic Location: 37 | ||
996530007192 | Saeco Black Lower Cover Part Carafe Myb9 Assy. Schematic Location: 10 | ||
996530006669 | Saeco Black Lower Tube Carafe Connect.myb9 Schematic Location: 15 | ||
996530067887 | Saeco Black Milk Tube Connector Myb9 Schematic Location: 22 | ||
996530006868 | Saeco Black Milk-air Flow Selector Myb9 Schematic Location: 57 | ||
996530006796 | Saeco Black Mounting Plate Cover Seal Myb9 Schematic Location: 13 | Y | |
421944026282 | Saeco Black Mounting Plate With Pin Mds Assy. Schematic Location: 15 | ||
Cables, PCB Cable | 996530025872 | Saeco Black Power Cable Australia L=1200 | |
996530009627 | Saeco Black Power Cable Brazil L=1200 | ||
996530069926 | Saeco Black Power Cable Brazil L=1200 | ||
996530001089 | Saeco Black Power Cable Korea L=1200 | ||
996530002167 | Saeco Black Power Cable Rvv 3X1 China L=1200 | ||
996530025808 | Saeco Black Power Cable Schuko L=1200 Schematic Location: 07 | Y | |
996530002166 | Saeco Black Power Cable Taiwan Hvctf L=1200 | ||

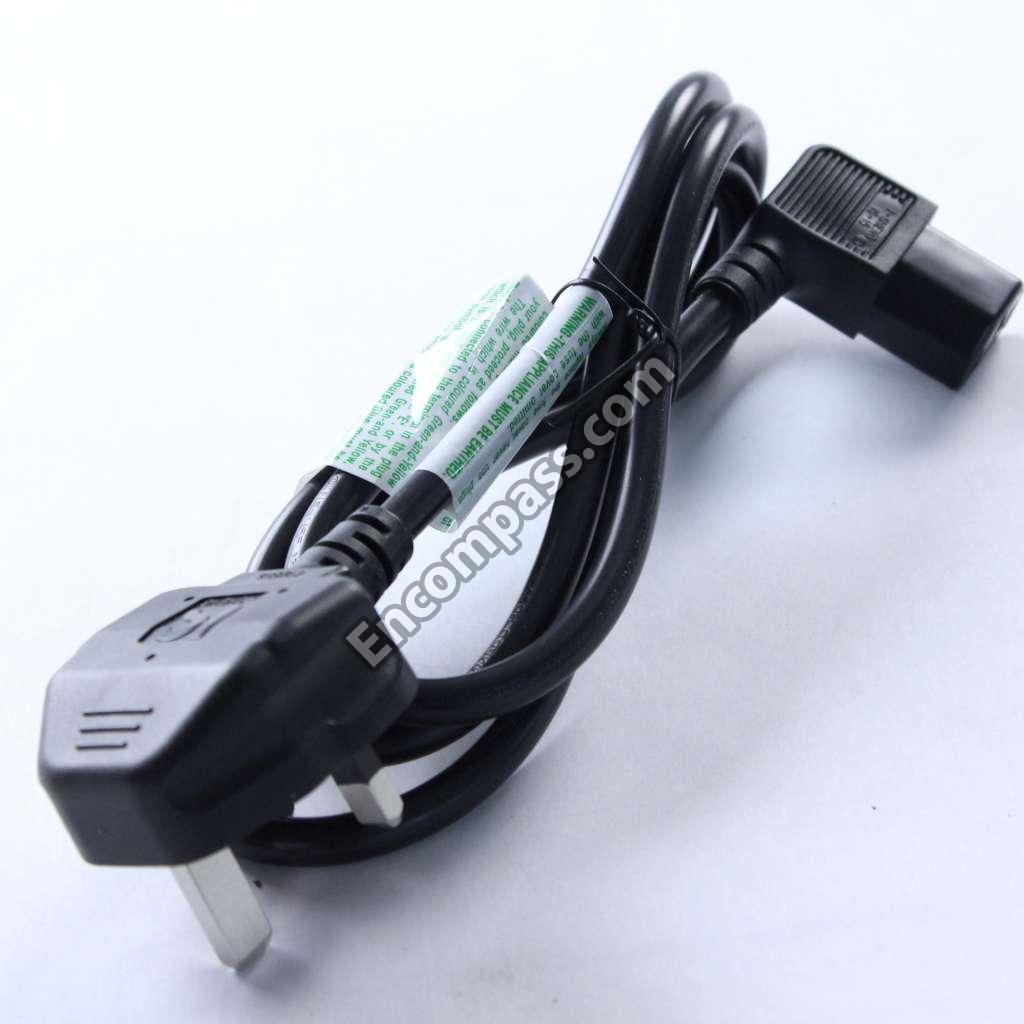

Cables, PCB Cable | 996530025882 | Saeco Black Power Cable Uk L=1200 | |
996530007468 | Saeco Black Pump Support Gmyb Schematic Location: 15 | ||
996530007568 | Saeco Black Pwr Board Cover Mds Schematic Location: 26 | ||
996530067529 | Saeco Black Reed Sensor Support Mds Schematic Location: 24 | ||

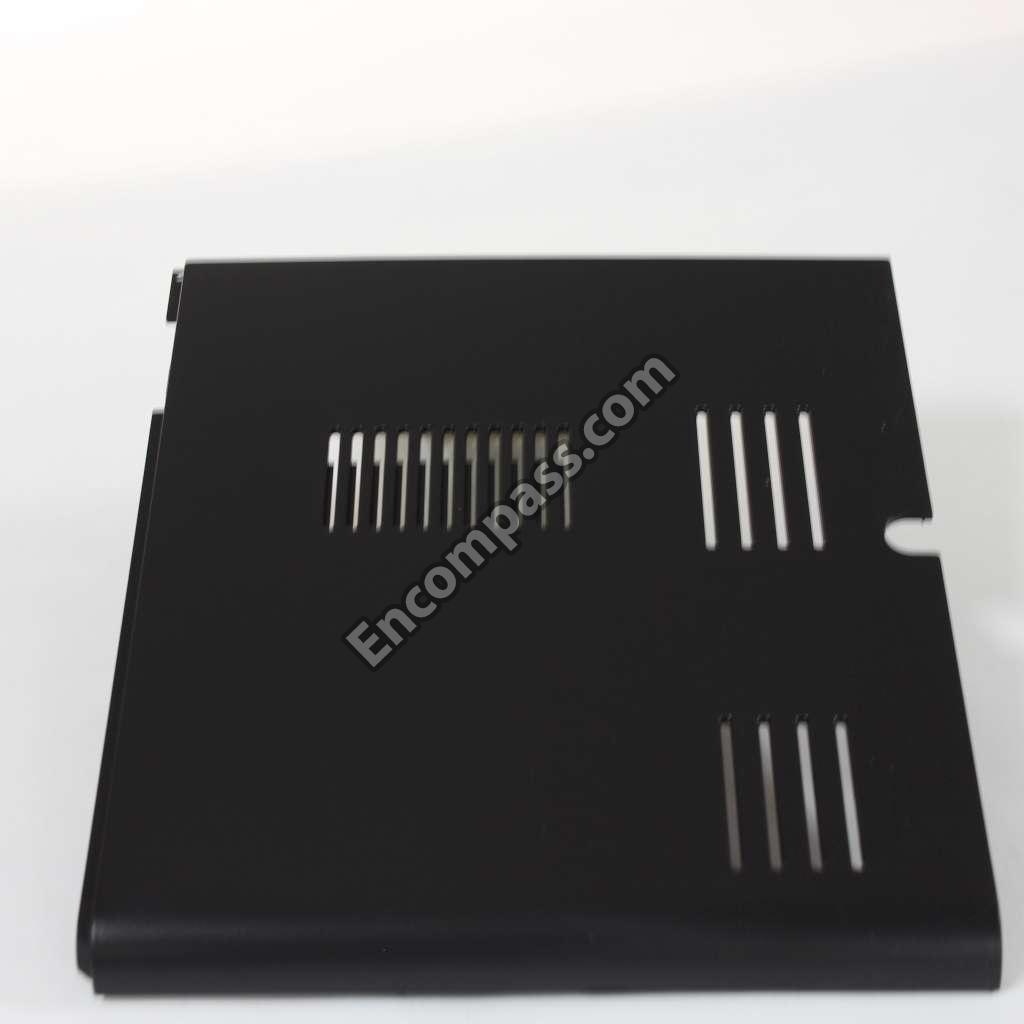

996530007509 | Saeco Black Right Side Panel Mds/p Up To S/n Tu901231130583 | ||
996530007136 | Saeco Black Rigid Foot Fixing Pin Myb9 Schematic Location: 31 | ||
996530002096 | Saeco Black Scraper For Brew Unit M5000 Schematic Location: 20 | ||
421944057391 | Saeco Black Seal For Coffee Dispenser Myb9 Schematic Location: 15 | Y | |
996530007608 | Saeco Black Slim Tub.boilers Support Myb9 Schematic Location: 28 | ||
996530067449 | Saeco Black Socket-switch Support Mds Schematic Location: 02 | ||
996530067523 | Saeco Black Special Button S/scr.mds Up To S/n Tu901231130583 Schematic Location: 38 | ||
996530007566 | Saeco Black Steam Blowdown 90 Connector Mds Schematic Location: 18 | ||

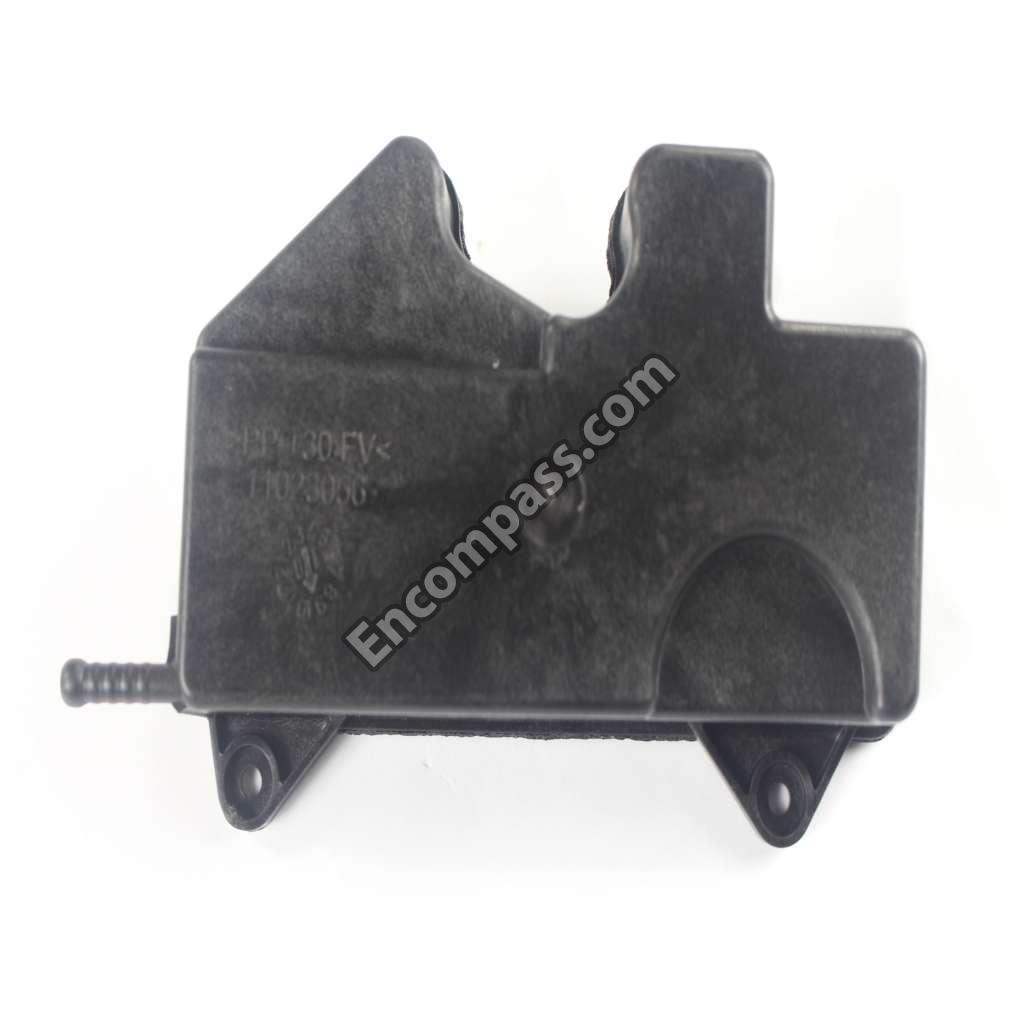

996530009606 | Saeco Black Steam Blowdown Condenser Mds Assy. Schematic Location: 51 | Y | |
996530067454 | Saeco Black Steam Tube Handgrip Mds Schematic Location: 42 | Y | |

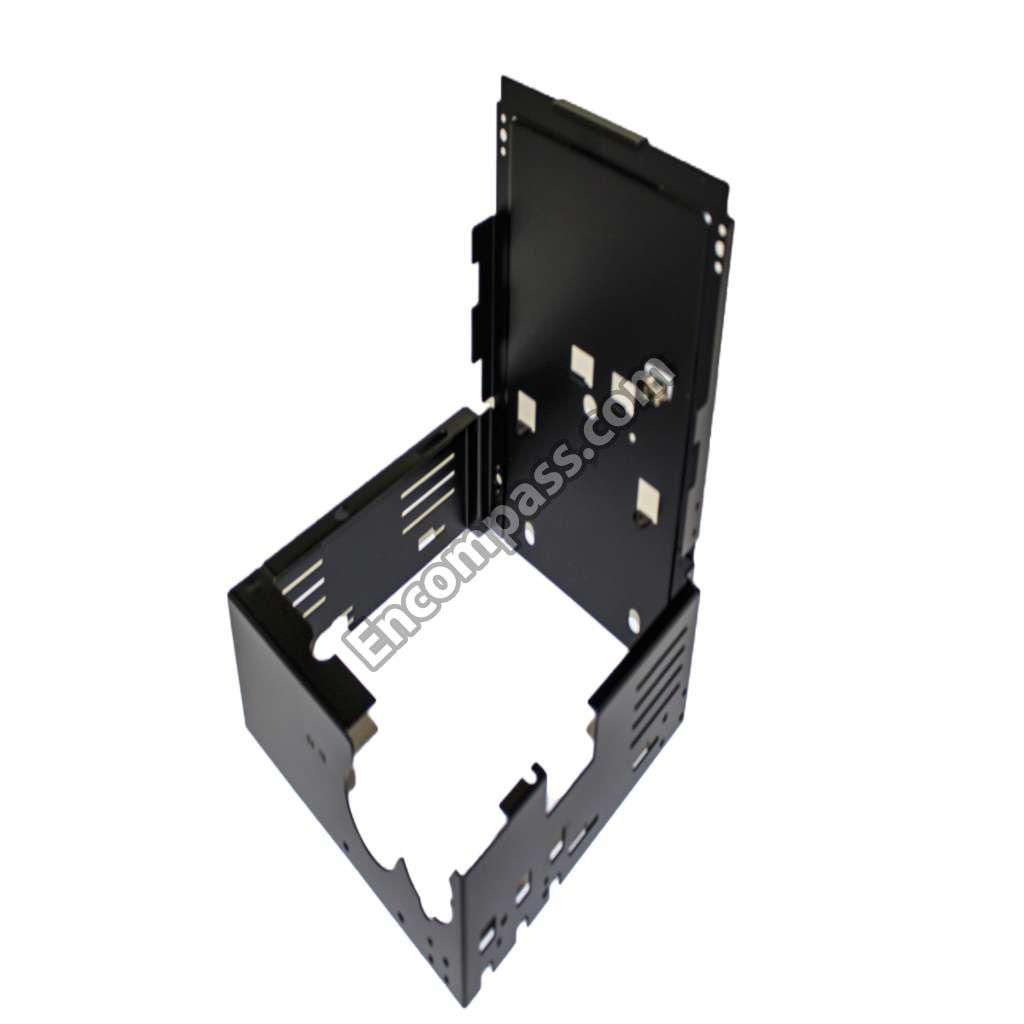

996530067532 | Saeco Black Steel Casing Mds Assy. Schematic Location: 23 | ||
Fuse, Thermal Fuse, Breaker | 996530067495 | Saeco Black Steel Diffuser Valve Support Mds Schematic Location: 39 | |
996530006668 | Saeco Black Upper Tube Carafe Connect.myb9 Schematic Location: 06 | ||
996530006834 | Saeco Black Valve Fixing Flange Myb9 Schematic Location: 36 | ||
996530007555 | Saeco Black Water Container Door Mds/p Up To S/n Tu901231130583 See Position 38 | ||
996530007587 | Saeco Black Water Container Handle Mds Schematic Location: 02 | Y | |
996530009825 | Saeco Black Water Inlet Sleeve Brew Unit Assy. Schematic Location: 07 | ||
996530050488 | Saeco Black Water Inlet Sleeve Brew Unit Royal Schematic Location: 08 | ||
996530069909 | Saeco Black.left Lateral Rear Frame Insert Mds From S/n.tu901128094835 Schematic Location: 46 | ||
996530067453 | Saeco Black.rear Cover Coffee Dispenser Mds Schematic Location: 03 | ||
996530069912 | Saeco Black.upper Rear Frame Insert Mds From S/n.tu901128094835 Schematic Location: 45 | ||
996530006315 | Saeco Black/sbr Ulka Mf Pump Support Schematic Location: 07 | ||
996530007156 | Saeco Black/transp.rigid Foot Myb9 Schematic Location: 30 | Y | |
996530007577 | Saeco Blk 8Gr.brew Unit Ntegr.piston Gen.assy. Schematic Location: 24 | Y | |
996530001451 | Saeco Blk Brew Unit Integral Piston 8Gr.assy. Schematic Location: 21 | ||
996530050829 | Saeco Blk Brewunit Hopper Blocking Plate Smart Schematic Location: 18 | ||
996530067437 | Saeco Blk Capacit.sensor Deadlock Insert Xsm Schematic Location: 37 | ||
996530009557 | Saeco Blk Carafe Cappuccin.casing W/caps Myb9 Schematic Location: 21 | Y | |
996530067487 | Saeco Blk Caraffe Board Support Gen.mds Assy. Schematic Location: 06 | ||
996530007575 | Saeco Blk Coffee Boiler Insulating Cover Mds Schematic Location: 32 | ||
996530073046 | Saeco Blk Coffee Dispenser Inner Body V3 Myb9 Schematic Location: 04 | ||
996530005372 | Saeco Blk Counter Piston Tube Brew Unit S0053 Schematic Location: 03 | Y | |
996530067462 | Saeco Blk Display Func.buttons Cover S/scr.mds Schematic Location: 10 | ||
996530007547 | Saeco Blk Drip Tray Coff.brew Unit Cover Mds Schematic Location: 33 | ||
996530067501 | Saeco Blk Horizontal Mounting Plate Insert Mds Schematic Location: 53 | ||
Carafe | 996530009578 | Saeco Blk Presence Carafe Micro Insert V2 Myb9 Schematic Location: 55 | |
996530000624 | Saeco Blk Pump Outlet 90Connector P0049/b Schematic Location: 17 | Y | |
996530069908 | Saeco Blk Right Lateral Rear Frame Insert Mds From S/n.tu901128094835 Schematic Location: 47 | ||
996530072477 | Saeco Blk Wiring Fix Insert For Grinder Board Schematic Location: 33 | ||
996530067515 | Saeco Blk-sb/ss Inside Cover Fron.panel Mds As Up To S/n Tu901210043090 Schematic Location: 18 | ||
996530067519 | Saeco Blk-sb/ss Rear Frame Mds Assy. Up To S/n Tu901210043090 - All The Others Schematic Location: 27 | ||
996530067475 | Saeco Blk/blk Rear Frame Mds Assy. Up To S/n Tu901128094834 | ||
996530007215 | Saeco Blowdown Valve V2 Myb9 Assy. 120V With Part. N30-46-47-48-49 | ||
996530007212 | Saeco Blowdown Valve V2 Myb9 Assy. 220V-60hz With Part. N30-46-47-48-49 | ||
996530003974 | Saeco Blowdown Valve V2 Myb9 Assy. 230V With Part. N30-46-47-48-49 | ||
996530001389 | Saeco Boc.isolante Motore Mc P124 Ner. Schematic Location: 19 | Y | |

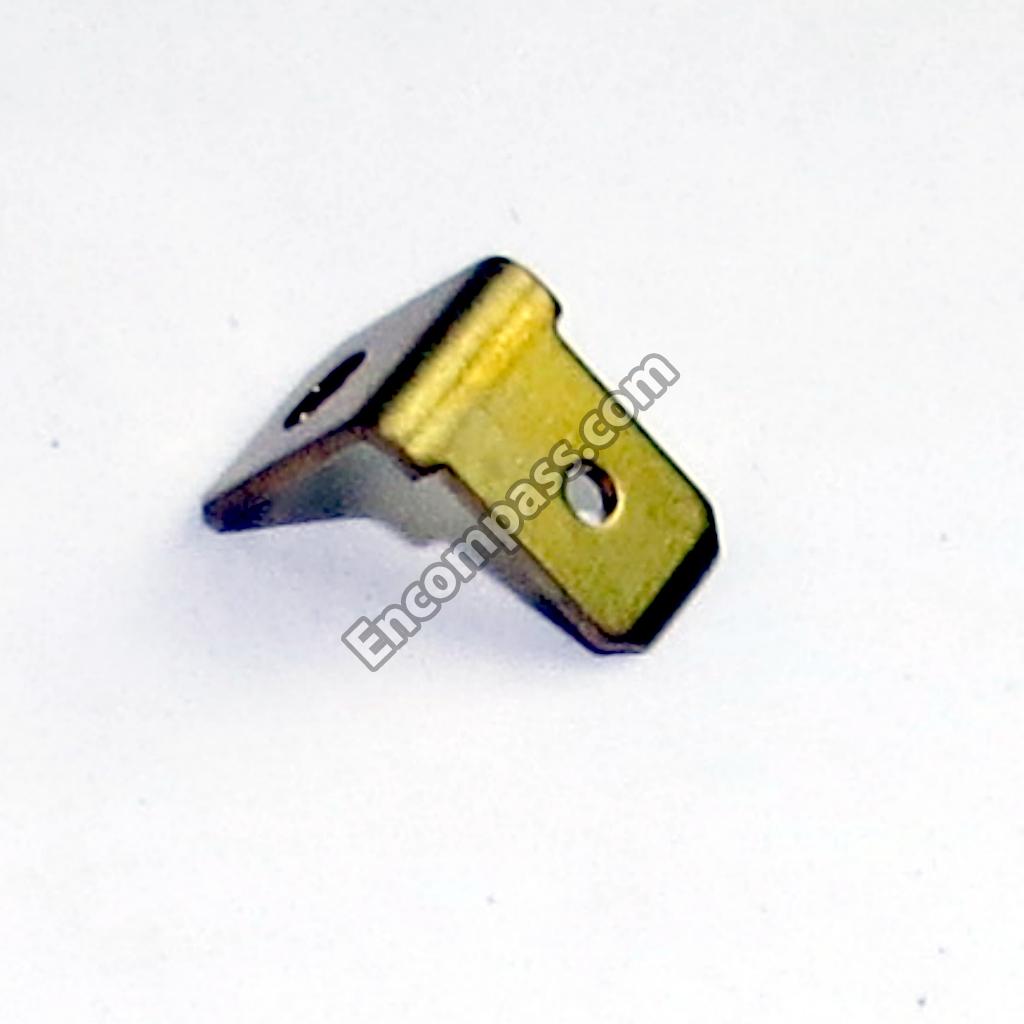

996530011326 | Saeco Brass Bent Faston 45 6,3X0,8 Schematic Location: 54 | ||
996530049898 | Saeco Bronze Sintered Bush For Motor Ratiomot. Schematic Location: 23 | Y | |
996530003793 | Saeco Bronze Spring For Front Casing G0053 Schematic Location: 44 | ||
996530011867 | Saeco Brush For Cleaning Schematic Location: 03 | Y | |
996530006873 | Saeco Carafe Spring With Insert Myb9 Assy. Schematic Location: 26 | ||
996530007599 | Saeco Chr.carafe Capp.cover V2 S/sc.myb9 Assy. Schematic Location: 02 | ||
996530007389 | Saeco Chr.carafe Upper Dispen.supp.v2 S/s.myb9 Schematic Location: 03 | ||
996530007388 | Saeco Chro.carafe Lower Dispenser Supp.v2 Myb9 Schematic Location: 07 | ||
996530007588 | Saeco Chrom.carafe Front Part Handle V2 Myb9 Schematic Location: 12 | ||
996530006784 | Saeco Chrom.carafe Rear Part Handle Myb9 Schematic Location: 11 | ||
996530067482 | Saeco Chrom.coffee Dispenser Mds Assy. With Part. N 02 - 03 - 04 - 05 - 06 - 07 Schematic Location: 01 | ||

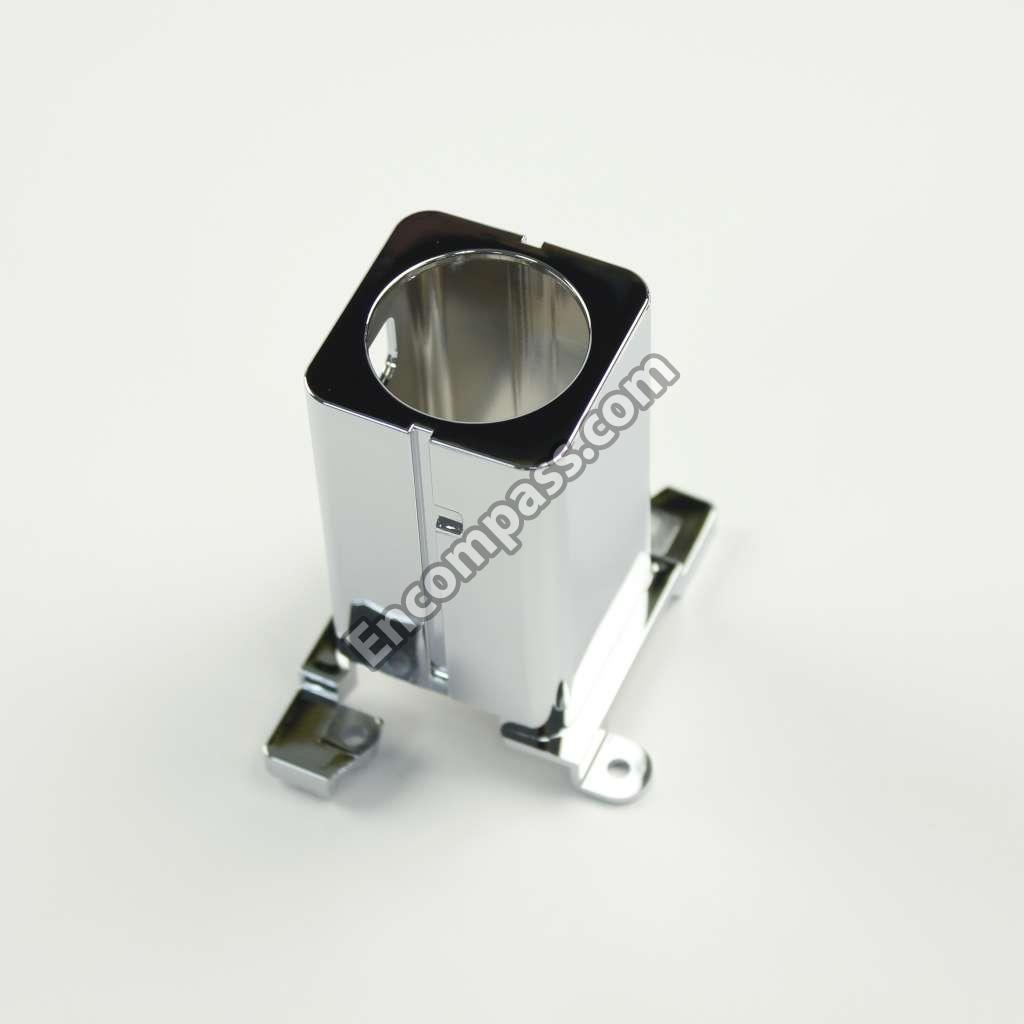

996530007492 | Saeco Chrom.coffee Dispenser Support Mds Schematic Location: 13 | ||
996530007671 | Saeco Chrom.coffee Dispenser Upper Insert Mds Schematic Location: 05 | ||
996530007622 | Saeco Chrom.connect.cap For Carafe Mds Assy. Schematic Location: 34 | Y | |
996530007534 | Saeco Chrom.cream Adjustment Knob S/scr.mds Schematic Location: 08 | ||
996530007668 | Saeco Chrom.front Cover Coffee Dispenser Mds Schematic Location: 07 | ||
996530070528 | Saeco Chrom.left Lateral Front Frame Ins.mds From S/n Tu901210043091 Schematic Location: 58 | ||
996530070527 | Saeco Chrom.right Lateral Front Frame Ins.mds From S/n Tu901210043091 Schematic Location: 57 | ||
996530067855 | Saeco Chrom.touch Panel Support Mds Assy. From S/n Tu901126079437 To Tu901242180832 | ||
996530007679 | Saeco Chrom.touch Panel Support Mds Up To S/n Tu901126079436 Schematic Location: 07 | ||
996530073225 | Saeco Chrom.touch Panel Support V2 Mds Assy. From S/n Tu901242180833 | ||
996530070525 | Saeco Chrom.upper Front Frame Insert Mds From S/n Tu901210043091 Schematic Location: 56 | ||
996530070516 | Saeco Chrom.upper Rear Frame Insert Mds From S/n Tu901210043091 | ||
996530066726 | Saeco Components Support Insulate Sheet Myb9 Schematic Location: 50 | ||
996530007569 | Saeco Cop.insonorizzazione Mc Mds Ner. Schematic Location: 11 | Y | |
996530015258 | Saeco Corpo Sup.c/uscita Caf.mac.mc Ner. Schematic Location: 27 | Y | |
996530069782 | Saeco Cup Socket V2 En 60320 C 13 | ||
996530072437 | Saeco Cup Socket V3 En 60320 C 13 Schematic Location: 03 | ||
996530011183 | Saeco Cuscinetto Assiale Ekko 342.35252 Schematic Location: 06 | Y | |
996530011182 | Saeco Cuscinetto Radiale 61900.2Rs1 Schematic Location: 25 | Y | |
996530067452 | Saeco Diffuser Valve Mds Assy. Schematic Location: 37 | ||
996530008417 | Saeco Display Box Mds/h Psa Exprelia Schematic Location: 11 | ||
996530067528 | Saeco Display Box Mds/h Psa Exprelia | ||
996530069911 | Saeco Display Box Mds/h Psa Exprelia | ||
996530073223 | Saeco Documentat.cd Mds Exprelia/energica Assy Schematic Location: 52 | ||
996530009581 | Saeco Door Lower Hinge V2 Myb9 Schematic Location: 28 | Y | |
996530009584 | Saeco Door Upper Hinge V2 Myb9 Schematic Location: 33 | Y | |
996530067488 | Saeco Galv.screw Tcb 4,2X13 Din 7985 F Schematic Location: 30 | ||
996530067494 | Saeco Graphic Display 128 X 64 Mds Schematic Location: 12 | ||
996530018116 | Saeco Grey Cap For Knobs Bean Container Schematic Location: 15 | Y | |
996530016894 | Saeco Grey Piston For Water Container Valve Schematic Location: 07 | ||
Container | 996530044404 | Saeco Grey Water Valve Gaco Dim 14 Seal Cont. Schematic Location: 11 | Y |
996530044417 | Saeco Grey Water Valve Gaco Dim 14 Seal Cover Schematic Location: 09 | Y | |
996530072511 | Saeco Gry Ground Coffee Cont.lower Seal Smart1 Schematic Location: 10 | ||
996530001907 | Saeco Ingr.z=14-24 Reg.mac.caf.p0049 Ner. Schematic Location: 30 | Y | |
996530067472 | Saeco Kit Ps-e Insert For Box Mds Schematic Location: 09 | ||
996530072935 | Saeco Kit Spar.matt/blk Casing Cont.door Mds/p Up To S/n Tu901231130583 Schematic Location: 38 | Y | |
421940812991 | Saeco Kit Spares Coffee Boiler Thermostats Schematic Location: 24 | Y | |
421940813001 | Saeco Kit Spares Steam Boiler Thermostats Schematic Location: 56 | ||
996530016342 | Saeco Macina 48X28 In Ceramica Schematic Location: 04 | Y | |
996530050555 | Saeco Magnet For Float Superaut. Schematic Location: 42 | Y | |
996530067477 | Saeco Manual Psa Hd8854/hd8856 Mds Chn Schematic Location: 01 | ||
996530067505 | Saeco Manual Psa Hd8854/hd8856 Mds Es | ||
996530067512 | Saeco Manual Psa Hd8854/hd8856 Mds Fr | ||
996530067561 | Saeco Manual Psa Hd8854/hd8856 Mds Gb | ||
996530070518 | Saeco Manual Psa Hd8854/hd8856 Mds Pt/bra | ||
996530072577 | Saeco Matt/black Bean Container Door Mds/p From S/n Tu901231130584 | Y | |
996530072633 | Saeco Matt/black Left Side Panel Mds/p From S/n Tu901231130584 | ||
996530072549 | Saeco Matt/black Right Side Panel Mds/p From S/n Tu901231130584 | ||
996530072575 | Saeco Matt/black Upper Cover Part Carafe Myb9 Schematic Location: 08 | ||
996530072591 | Saeco Matt/black Water Container Door Mds/p From S/n Tu901231130584 | Y | |
996530072747 | Saeco Matt/blk Cappuccino Button S/scr.mds From S/n Tu901231130584 | ||
996530072732 | Saeco Matt/blk Clean Button S/scr.mds From S/n Tu901231130584 Schematic Location: 40 | ||
996530072772 | Saeco Matt/blk Coffee Button S/scr.mds From S/n Tu901231130584 | ||
996530072765 | Saeco Matt/blk Espresso Button S/scr.mds From S/n Tu901231130584 | ||
996530072588 | Saeco Matt/blk Ground Contain.door S/scr.mds/p From S/n Tu901231130584 | ||
996530072764 | Saeco Matt/blk Long Coffee Button S/scr.mds From S/n Tu901231130584 | ||
996530072743 | Saeco Matt/blk Special Button S/scr.mds From S/n Tu901231130584 | ||
996530072749 | Saeco Matt/blk Stand-by Button S/scr.mds Assy. From S/n Tu901231130584 | ||
996530058869 | Saeco Microswitch Saia Xcg5-81-p5 Schematic Location: 14 | ||
996530006754 | Saeco Milkcaraffe Board V2 Myb9 Schematic Location: 50 | Y | |
996530001308 | Saeco Molla Reg.mc P124 Acc. Schematic Location: 29 | ||
996530000376 | Saeco Molla Supp.motore Mc P124 Acc. Schematic Location: 17 | Y | |
996530002796 | Saeco Motor For Ratiomotor Assy. Schematic Location: 24 | Y | |
996530050569 | Saeco Mylar Washer For Ratiomotor Schematic Location: 21 | Y | |
996530001926 | Saeco Nat.pin V2 For Boiler P119 Schematic Location: 07 | ||
996530007553 | Saeco Nat/grey Water Container Lid S/scr.mds Schematic Location: 08 | ||
996530007552 | Saeco Nat/grey Water Container Mds Assy. Schematic Location: 01 | Y | |
996530007557 | Saeco Nat/gry Bean Cof.cont.lid S/scr.mds Assy Schematic Location: 14 | ||
996530002747 | Saeco Natural Cursor V2 For Boiler P119 Schematic Location: 08 | Y | |
996530015823 | Saeco Nbr Water Cont.valve Gaco Dim14 Seal Schematic Location: 10 | Y | |
996530013471 | Saeco O-ring 2031 Termoil Schematic Location: 16 | Y | |
Clamp | 996530007947 | Saeco Oetiker Clamp D=9,5 16700004 Schematic Location: 25 | Y |
996530013564 | Saeco Or 2015 Silicone Ptfe/fda Schematic Location: 22 | Y | |
996530059441 | Saeco Or 2025 In Termoil Schematic Location: 09 | Y | |
996530013546 | Saeco Or Orm 0040-20 Black Epdm Schematic Location: 11 | Y | |
996530059419 | Saeco Or Orm 0050-20 In Silicone Schematic Location: 10 | Y | |
996530007732 | Saeco Or Orm 0060-15 Silicone Schematic Location: 17 | Y | |
996530013508 | Saeco Or Orm 0060-20 Silicone Ptfe/fda Schematic Location: 05 | Y | |
996530013507 | Saeco Or Orm 0060-30 Silicone Schematic Location: 05 | Y | |
996530013526 | Saeco Or Orm 0070-20 Silicone Schematic Location: 17 | Y | |
996530013446 | Saeco Or Orm 0080-20 Termoil Schematic Location: 12 | Y | |
996530059399 | Saeco Or Orm 0090-20 Silicone Schematic Location: 09 | Y | |
996530013571 | Saeco Or Orm 0190-10 Epdm Schematic Location: 03 | Y | |
996530059406 | Saeco Or Orm 0320-40 Silicone Ptfe/fda Schematic Location: 05 | Y | |
996530013577 | Saeco Or Orm 0530-15 Nbr Fda Schematic Location: 03 | Y | |
996530050709 | Saeco Percolator De=35,8 Elfo Schematic Location: 06 | Y | |
996530002717 | Saeco Pin V2 For Boiler P119 Assy. Schematic Location: 01 | Y | |
996530025858 | Saeco Power Cable Ch Black 3X1 H05vv-f L=1200 | ||
996530025843 | Saeco Power Cable Sjt3 Usa Black Ul L=1200 | Y | |
421946017941 | Saeco Psa Kluber Tribostar Sil 2 Tube 5Gr. Schematic Location: 04 | ||
996530070326 | Saeco Psa Milk Accessory Pack Assy. Schematic Location: 28 | Y | |
996530067506 | Saeco Pwr Board Mds 230V Schematic Location: 25 | Y | |
996530007079 | Saeco Pwr Board Myb9/mds 120V | ||
996530009554 | Saeco Red Float For Drip Tray Mds Schematic Location: 23 | Y | |
996530012374 | Saeco Rondel.bilanciamento 21,8X14x0,25 Acc. Schematic Location: 26 | ||
996530012375 | Saeco Rondel.piana Di=4,3 De=14 Sp=1,5 Acc. Schematic Location: 15 | Y | |
996530012341 | Saeco Rosetta Uni 8842 A4 Zinc. Schematic Location: 18 | Y | |
996530070511 | Saeco Sb/ss Bean Contain.door Cover Mds/h Assy From S/n Tu901208034136 | Y | |
996530067486 | Saeco Sb/ss Bean Contain.door Cover Mds/h Assy Up To S/n Tu901208034135 Schematic Location: 18 | ||
996530073224 | Saeco Sb/ss Frontal Panel V2 Mds Assy. From S/n Tu901208034136 | ||
996530069608 | Saeco Sb/ss Frontal Panel V2 S/scr.mds Assy. Up To S/n Tu901208034135 Schematic Location: 01 | ||
996530070526 | Saeco Sb/ss Frontal Panel V3 S/scr.mds Assy. From S/n Tu901208034136 | ||
996530070513 | Saeco Sb/ss Ground Cont.door Cover Mds/h Assy. From S/n Tu901208034136 | ||
996530067522 | Saeco Sb/ss Ground Cont.door Cover Mds/h Assy. Up To S/n Tu901208034135 Schematic Location: 13 | ||
Pan | 996530070519 | Saeco Sb/ss Left Side Panel V2 Mds/h Assy. From S/n Tu901208034136 Up To Tu9012080 Schematic Location: 15 | |
Pan | 996530070512 | Saeco Sb/ss Left Side Panel W/fast.mds/h Assy. From S/n Tu901208034136 | |
996530069914 | Saeco Sb/ss Left Side Panel W/fast.mds/h Assy. Up To S/n Tu901208034135 | ||
996530070533 | Saeco Sb/ss Right Side Panel V2 Mds/h Assy. From S/n Tu901208034136 Up To Tu901208 Schematic Location: 29 | ||
996530070515 | Saeco Sb/ss Right Side Panel W/fast.mds/h Assy From S/n Tu901208034136 | ||
996530070521 | Saeco Sb/ss Water Cont.door Cover Mds/h Assy. From S/n Tu901208034136 Schematic Location: 14 | Y | |
996530001192 | Saeco Sbs Valve P124 Assy. Schematic Location: 01 | Y | |
996530022784 | Saeco Scheda C/sens.hal 506 Sf-k C/conn. Schematic Location: 24 | Y | |
996530012923 | Saeco Screw Tapt M4x10 Din 7985 Galv Schematic Location: 22 | ||
996530007953 | Saeco Screw Tcb Torx 10 3,5X20 Plast.ss Schematic Location: 14 | ||
996530013128 | Saeco Screw Tcb Torx 10 3X10 Ss Schematic Location: 16 | ||
996530013164 | Saeco Screw Tcb Torx 10 3X12 Plast.zn-b Schematic Location: 35 | Y | |
996530007838 | Saeco Screw Tcb Torx 10 3X25 Plast.ss Schematic Location: 09 | Y | |
996530013156 | Saeco Screw Tcb Torx 10 3X8 Plast.zn-b Schematic Location: 41 | ||
996530013153 | Saeco Screw Tcb Torx 10 Ab 2,9X6,5 Sheet Zn-b Schematic Location: 48 | ||
996530007819 | Saeco Screw Tcbr Torx 10 3,5X12 Plast.zn-n Schematic Location: 12 | Y | |
996530013148 | Saeco Screw Tcbr Torx 10 3,5X14 Plast.ss Schematic Location: 48 | Y | |
996530013168 | Saeco Screw Torx M4x10 Testa D=8x1,5 Galv Schematic Location: 31 | ||
996530072411 | Saeco Screw Tsp Torx 10 3,5X14 Plast.ss Schematic Location: 27 | ||
996530007951 | Saeco Screw Tsp Torx 10 3X10 Plast.ss Schematic Location: 32 | Y | |
996530008039 | Saeco Screw Tsp Torx 10 5X35 Plast.ss Schematic Location: 29 | Y | |
996530012898 | Saeco Screw Tsp Torx 10 Ab 3,5X9,5 Sheet Ss Schematic Location: 13 | ||
996530013137 | Saeco Screw Tsp Torx 4X16 Plast Steel Schematic Location: 14 | ||
996530001819 | Saeco Sens.reed Mk3-1a66-bv16451 Schematic Location: 19 | ||
996530062106 | Saeco Shaft 6 Uni 7434 Schematic Location: 16 | ||
996530067584 | Saeco Silicone Tube 3,5X6 L=140 Mm Schematic Location: 23 | Y | |
996530057357 | Saeco Silicone Tube 5X10 60Sh In Roll Schematic Location: 31 | ||
996530018269 | Saeco Silicone Tube 5X8 70Sr In Roll Schematic Location: 18 | ||
421941302131 | Saeco Slim Tub.boil.c2 T150-204 As With Part. N20-21-22-23-24 | ||
421941302141 | Saeco Slim Tub.boil.c2 T150-204 As With Part. N20-21-22-23-24 | ||
421941302101 | Saeco Slim Tub.boil.c2 T170-204 As With Part. N20-21-22-23-56 | ||
421941302111 | Saeco Slim Tub.boil.c2 T170-204 As With Part. N20-21-22-23-56 | ||
996530007586 | Saeco Slim Tub.boiler Assy. 1300W 120V | Y | |
996530006841 | Saeco Slim Tub.boiler Assy. 1300W 230V Schematic Location: 20 | ||
996530007158 | Saeco Solenoid Valve Connect.insul.washer Myb9 Schematic Location: 45 | ||
996530009913 | Saeco Spares Kit Gears For Ratiomotor V2 Schematic Location: 26 | Y | |
996530007128 | Saeco Spring For Door Release Button Myb9 Schematic Location: 27 | ||
Clamp | 996530025907 | Saeco Spring Hose Clamp D=9,5mm Schematic Location: 33 | |
Spring | 996530000898 | Saeco Ss Brew Unit Spring H=49 Smart Schematic Location: 12 | Y |
996530009566 | Saeco Ss Carafe Micro Insert Spring Myb9 Schematic Location: 52 | ||
996530011711 | Saeco Ss Coff.cream Adjustment Shaft Spring Schematic Location: 09 | Y | |
996530007543 | Saeco Ss Drip Tray Grate Mds Schematic Location: 19 | Y | |
996530048885 | Saeco Ss Fork For Tube D=4 Schematic Location: 23 | Y | |
996530002744 | Saeco Ss Fork Spring For Blowdown Valve P0049 Schematic Location: 48 | Y | |
996530050838 | Saeco Ss Hopper Spring For Brew Unit Smart Schematic Location: 19 | Y | |
996530050455 | Saeco Ss Scraper Spring For Brew Unit Schematic Location: 25 | Y | |
Pedestal | 996530048874 | Saeco Ss Spring For Pin Schematic Location: 02 | Y |
996530007549 | Saeco Ss Spring For Water Container Lever Mds Schematic Location: 16 | ||
Container | 996530011626 | Saeco Ss Water Container Valve Spring Schematic Location: 06 | Y |
996530050627 | Saeco Ss.8gr.brew Unit Piston Spring Schematic Location: 22 | Y | |
996530006968 | Saeco Ss.insert For Magnet Myb9 Schematic Location: 46 | Y | |
996530073079 | Saeco Steel Coffee Tubol.boiler Support V2 Mds Schematic Location: 27 | ||
996530007525 | Saeco Steel Front Frame Mds Up To S/n Tu901210043090 Schematic Location: 03 | ||
996530007207 | Saeco Steel Plate For Door Closure Myb9 Schematic Location: 40 | ||
996530006849 | Saeco Steel Spring For Carafe Lever Myb9 Schematic Location: 24 | ||
996530007574 | Saeco Steel Steam Tubol.boiler Support Mds Schematic Location: 52 | ||
996530006856 | Saeco Steel Teflon Tubes Support Spring Myb9 Schematic Location: 21 | ||
996530039604 | Saeco Sticker For Water Hardness Test Schematic Location: 06 | Y | |
996530001314 | Saeco Supp.inf.ingr.reg.mac.p124 Ner. Schematic Location: 28 | Y | |
996530017952 | Saeco Supp.inf.macina Mc V3 Ner. Schematic Location: 05 | Y | |
996530000115 | Saeco Supp.motore Mc P124 Ner. Schematic Location: 23 | Y | |
996530017963 | Saeco Supp.sens.termico Motore Mc Ner. Schematic Location: 20 | Y | |
996530001296 | Saeco Supp.sup.ingr.reg.mac.p124 Ner. Schematic Location: 31 | Y | |
421941094152 | Saeco Supp.sup.macina V2 Mc Ner. Schematic Location: 02 | Y | |
996530018139 | Saeco Tappo Centrag.vite S/fine Mod=1,25 Mc V3 Schematic Location: 13 | ||
996530013079 | Saeco Tcb Screw M4x8 Uni 7687 Ss Schematic Location: 44 | ||
996530005183 | Saeco Tea/brass Piston L=20,9 Assy. Schematic Location: 04 | ||
996530026997 | Saeco Temperature Sensor Ntc Ul L=280mm Schematic Location: 23 | Y | |
996530017351 | Saeco Trans.connector D=8 Art.80.26.047 Ka.461 Schematic Location: 10 | Y | |
Carafe | 996530007705 | Saeco Transp.carafe V3 S/screen Myb9 Schematic Location: 20 | Y |
996530067458 | Saeco Transp.glass For Display S/scr.mds Up To S/n Tu901242180832 Schematic Location: 09 | ||
996530073066 | Saeco Transp.glass V2 For Display S/scr.mds From S/n Tu901242180833 | ||
996530009605 | Saeco Transp.infrareds Plate Mds Schematic Location: 39 | Y | |
996530008026 | Saeco Transp.round Adhesive Foot Sj-5382 Schematic Location: 19 | ||
996530007538 | Saeco Transp.touch Panel Mds Schematic Location: 11 | ||
996530067527 | Saeco Transp/chrom.gen.carafe Myb9/mds Assy. Schematic Location: 01 | ||
996530067498 | Saeco Transp/white Aspiration Filter Mds Schematic Location: 50 | Y | |
996530000997 | Saeco Tub.boiler V3 Upper Therm.fixing Spring Schematic Location: 21 | ||
996530059843 | Saeco Turbine D=1,2 932-8521/00 Assy. Schematic Location: 18 | Y | |
Pipe, Tube, Hose, Fitting | 996530009559 | Saeco Two Way Teflon Tubes Support Spring Myb9 Schematic Location: 20 | |
996530007754 | Saeco Ulka Pump Eap5/s 120V-60hz | Y | |
996530007782 | Saeco Ulka Pump Ep5/s Gw 220V-60hz | ||
996530007753 | Saeco Ulka Pump Ep5/s Gw 230V-50hz Schematic Location: 13 | Y | |
996530008028 | Saeco Ulka Pump Mf 120V-60hz | Y | |
996530008031 | Saeco Ulka Pump Mf 220V-50/60hz | ||
996530008003 | Saeco Ulka Pump Mf 230V-50hz Schematic Location: 06 | ||
996530006527 | Saeco Venturi Tube For Cappuccinatore Myb9 Schematic Location: 04 | ||
996530005991 | Saeco Vite Incremento Lunga Mc Zama Tea Schematic Location: 01 | Y | |
996530013165 | Saeco Vite Tcb 3,5X16 Plast.zn-b Schematic Location: 32 | Y | |
996530012992 | Saeco Vite Tcb 3,5X30 Plast.zn-b Schematic Location: 14 | Y | |
996530012928 | Saeco Vite Tcb M4x30 Zn-b Schematic Location: 16 | Y | |
996530012339 | Saeco Washer Uni 8842 A3 Ss Schematic Location: 47 | ||
996530006375![]() | Saeco Water Drain Connector Myb9 Schematic Location: 11 | ||
996530050618 | Saeco White 8Gr.-12gr.brew Unit Piston Bush Schematic Location: 23 | ||
996530013621 | Saeco White Coffee Cream Adjustment Shaft Schematic Location: 12 | Y | |
996530029115 | Saeco White Water Container Ext.filter Assy. Schematic Location: 04 | Y | |
996530067476 | Saeco Wht Preform.teflon Tubes Supp.mds Assy. Schematic Location: 19 | ||
996530007364 | Saeco Yellow Lever For Water Contain.s/sc.myb9 Schematic Location: 17 |
